SMD QUARTZ CRYSTAL 2.0 x 1.6 mm 26.0 - 54.0 MHz FOR ULTRASONIC
- Recommended for ultrasonic plastic case welding process
- Tight tolerance / tight stability available
- High reliability for low cost
- Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
- Ideally suited for the use in electronic products, communication equipment, wearables, wireless modules, IoT, BLE, M2M, ISM band, medical applications, etc.
-
Product Name
SMD Quartz Crystal
-
Package
SMD Ceramic/4pad
-

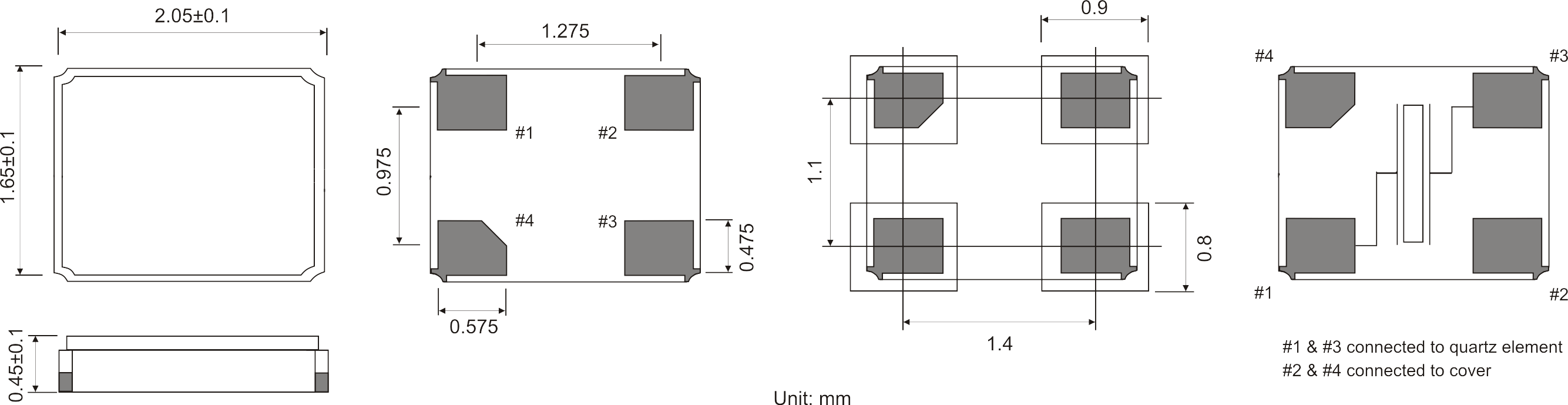

Dimensions in mm (W x D x H)
2.0 x 1.6 x 0.45 mm
-
Frequency Range
26.00 - 54.00 MHz
-
NUMBER OF SOLDER PADS
4
-
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
-
LOAD CAPACITANCE (CL)
Series, 6 pF ~ 50 pF
-
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
-
SHUNT CAPACITANCE C0
1.5 pF max.
-
DRIVE LEVEL
100 μW typ. / 200 μW max.
-
AGING
±2 ppm per year standard (±10 ppm max. after 10 years available on request)
-
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
-
STORAGE TEMPERATURE
-55°+125°C
-
DELIVERY FORM
Tape and Reel (3.000 pcs per reel)
| ±10 ppm | ±12 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • | • |
| 0/70 °C | • | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • | • |
| -40/85 °C | • | • | • | • |
- Medical applications
- ISM Band
- Networking
- Industrial
- RFID/NFC
- Wearables
- IoT
- HD & Storage
- Mobile Communication
- PC/PC Peripheral/IT
- WiMAX, WLAN, Wi-Fi
- Embedded
- Bluetooth/Bluetooth Low Energy (BLE)
- Wireless Modules
- Machine-to-Machine (M2M) Connectivity
- Ultra-Low Power MCU
DATASHEET: SMD QUARTZ CRYSTAL SMD02016-4US
