NAME:SMD03025/4CC

IMAGE:1

SMD QUARTZ CRYSTAL 3.2 x 2.5 mm 8.0 - 64.0 MHz

SMD QUARTZ CRYSTAL 3.2 x 2.5 mm 8.0 - 64.0 MHz

  • High reliability for low cost
  • Cheapest available MINI-SMD-XTAL
  • Ceramic body with glass sealed ceramic cover
  • Resistance reduced quartz design for fast and safe oscillation start-up
  • Excellent clock signal generator for CPU´s
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

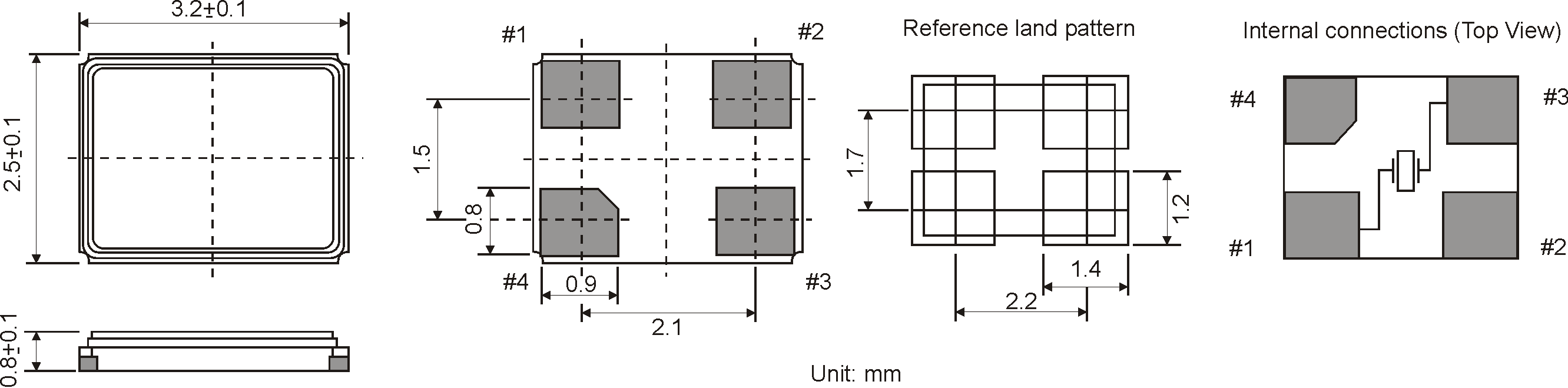

  • Dimensions in mm (W x D x H)

    3.2 x 2.5 x 0.9 mm

  • Frequency Range

    8.00 - 64.00 MHz

  • NUMBER OF SOLDER PADS 4

    4

  • FREQUENCY TOLERANCES AT 25°C

    ±15 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    7 pF ~ 20 pF (other parameters deliverable on request)

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+85°C

  • SHUNT CAPACITANCE C0

    6 pF max.

  • DRIVE LEVEL

    100 µW max. (other parameters available on request)

  • AGING

    ±3 ppm per year standard

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM Tape and Reel

    (3.000 pcs per reel)

  ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
-20/70 °C
-40/85 °C
SMD QUARTZ CRYSTAL 3.2 x 2.5 mm 8.0 - 64.0MHz
  • ISM Band
  • RFID/NFC
  • Industrial
  • PC/PC Peripheral/IT
  • Mobile Communication
  • Automotive
  • WiMAX, WLAN, Wi-Fi
  • HD & Storage
  • Wearables
  • IoT
  • Networking
  • Embeded
  • Bluetooth/Bluetooth Low Energy (BLE)
  • Wireless Modules
  • Machine-to-Machine (M2M) Connectivity
  • Ultra-Low Power MCU

DATASHEET: SMD QUARTZ CRYSTAL SMD03025-4CC

SMD QUARTZ CRYSTAL SMD03025-4CC
