SMD WIDEST TEMPERATURE 1-110 MHz OSCILLATORS

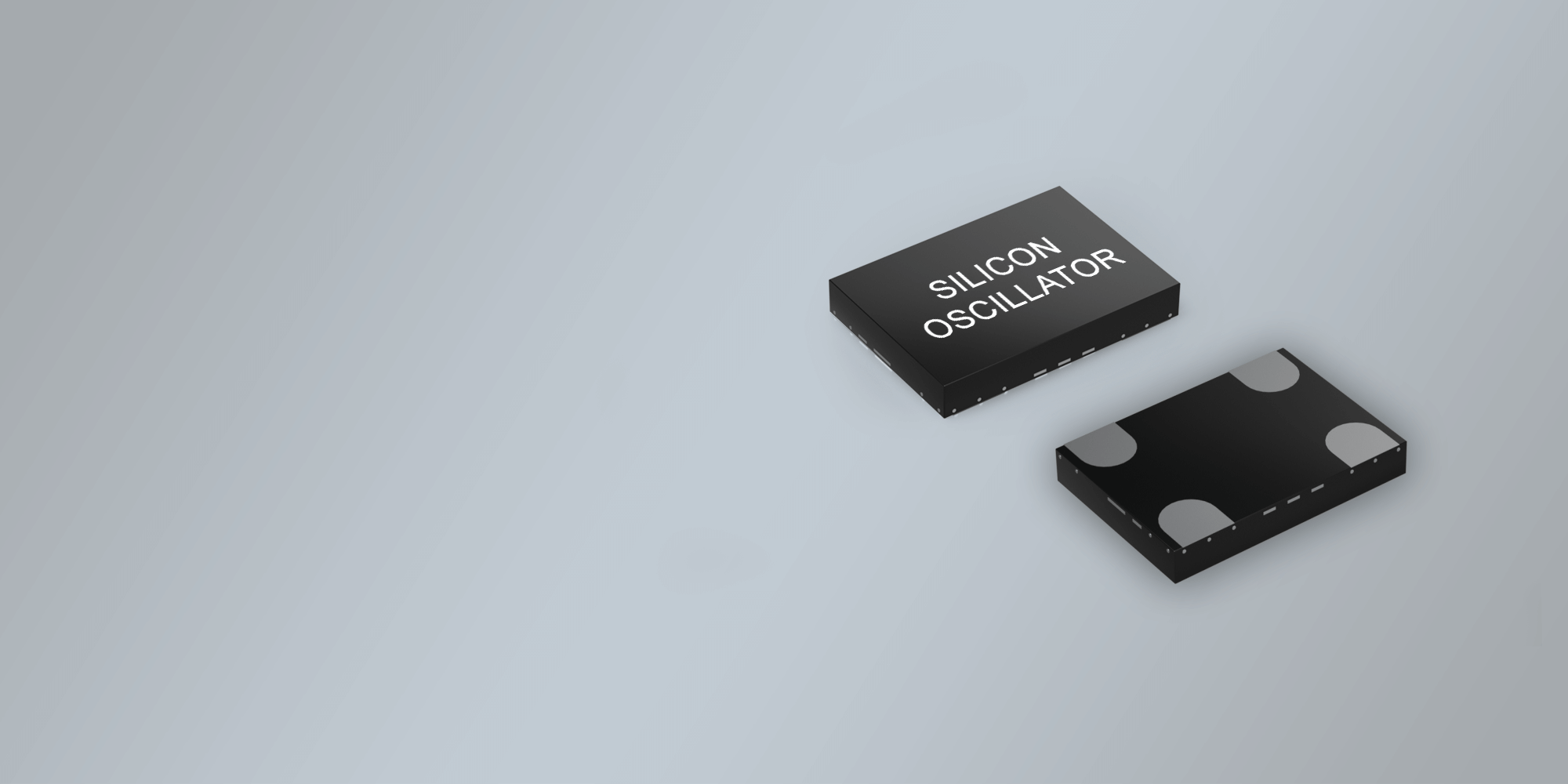

SMD WIDEST TEMPERATURE 1-137 MHz PROGRAMMABLE SILICON OSCILLATORS

  • 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
  • Widest Temperature Low Power Oscillator for Low Cost
  • Excellent long time reliability
  • Excellent frequency stability as low as ±20 ppm
  • Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
  • Operating temperature from -55°C to 125°C
  • Express samples on the same day if ordered until 02:00 p.m.
  • Product Name

    WTLPOP

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    2.0 x 1.6 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 110.00 MHz

  • SUPPLY VOLTAGE

    1.8 V to 3.63 V

  • FREQUENCY STABILITY

    ±20 ppm to ±50 ppm

  • OPERATING TEMPERATURE RANGE

    -55/+125°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Unique combination of product featurs

    • Best-in-class stability over extreme temp range for space constrained environment

  • 0.1 ppb/g low vibration sensitivity

    • No performance degradation in harsh environment

  • 50 kg shock and 70 g vibration

    • Indestructable

  • Configurabler rise/fall time

    • Optimize EMI to reduce interferece to other subsystem

DATASHEET: SMD Widest Temperature 1-110MHz Silicon Programmable Oscillator (WTLPOP)

Widest Temperature 1-110MHz Silicon Programmable Oscillator

DATASHEET: SMD Widest Temperature 119-137MHz Silicon Programmable Oscillator (WTLPOP)

Widest Temperature 119-137MHz Silicon Programmable Oscillator
