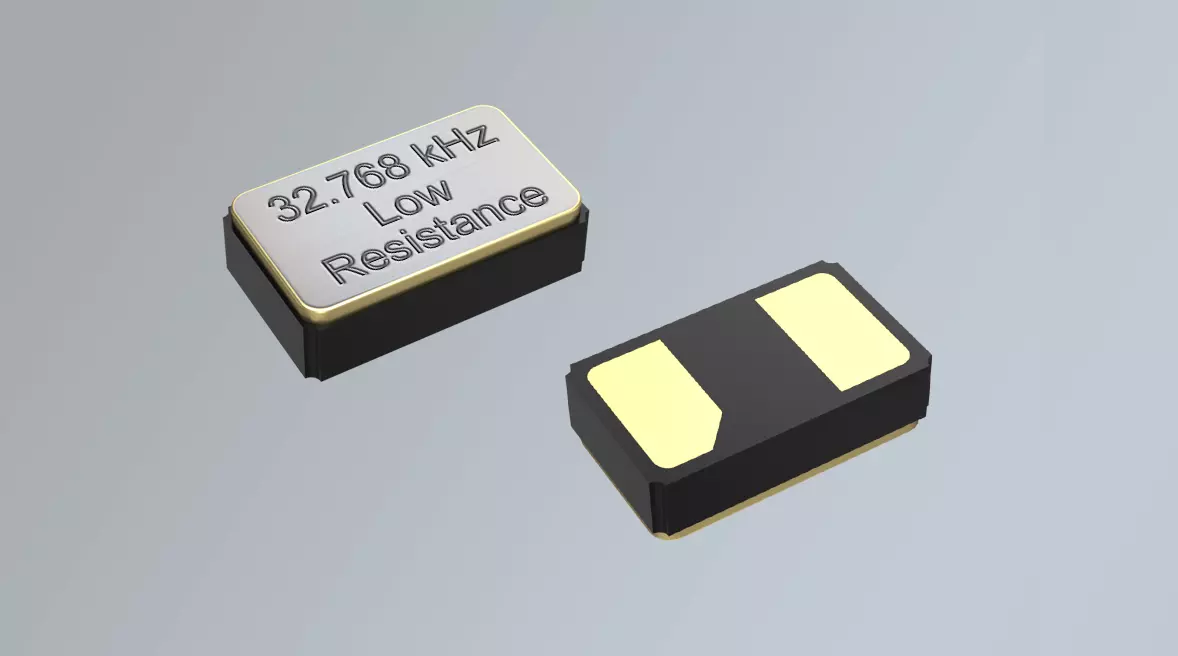

SMD QUARTZ 3.2X1.5 mm 32.768 kHz 50 kOhm MAX. LOW RESISTANCE

With the SMD3215RR series, PETERMANN-TECHNIK offers 32.768 kHz crystals with a reduced resistance of max. 50 kOhm in the 3.2x1.5mm housing. The standard maximum resistance for a standard 3.2x1.5mm 32.768 kHz crystal is 70 kOhm. The "M3215RR" series can be supplied with load capacitances of 6pF, 7pF, 9pF and 12.5pF. The developer can choose between a frequency tolerance at 25°C of ±10ppm (optional) and ±20ppm (standard). Quartz crystals are normally available from stock in all versions (subject to prior sale). The replenishment time is very short at 4 - 6 weeks. In addition to 32.768 kHz solutions, our customers will find a very extensive and deep product range of MHz crystals and various oscillators. The service catalogue of our specialists also includes circuit development, analyses, simulations, matching tests, etc. PETERMANN-TECHNIK's credo is to provide everything from a single source in order to be able to offer our customers an optimum service and thus an extremely short time-to-market. Further information under: SMD MHz oscillating crystalsThe new reference website for SMD oscillatorsDesign-in Technical questions: Phone: 0 81 91 / 30 53 95 E-mail: info@petermann-technik.de
