Find the right clock generator - in just a few clicks

Whether oscillating quartz or oscillator: selecting the right clock generator is often time-consuming and complex. The online configurators from PETERMANN-TECHNIK put an end to this. Enter parameters, select product, enquire directly or order samples - quickly, intuitively and without detours. Find out how you can significantly speed up your next design-in.

Anyone looking for a quartz crystal or crystal oscillator for their design will be familiar with the procedure: Working through data sheets, compiling ordering codes, enquiring by e-mail and then waiting for a response. Simply choosing the right housing for the desired frequency is the first hurdle for many developers - because the range on the market is enormous.

PETERMANN-TECHNIK GmbH has fundamentally simplified this process. With the online configurators for oscillating crystals and quartz oscillators, you can define your desired clock generator directly on our website - step by step, parametrically guided and without media discontinuity.

How it works

Use intuitive pull-down menus to select your desired parameters: Housing, frequency range, frequency tolerance, operating temperature range, load capacity and more. With each entry, the configurator narrows down the search results so that you can quickly find the right solution. At the end, you can configure your desired product with just a few clicks and enquire directly with us - or order samples immediately. No complicated compilation of order codes, no waiting for call-backs.

Vibrating quartz crystals: wide range with unique LRT technology

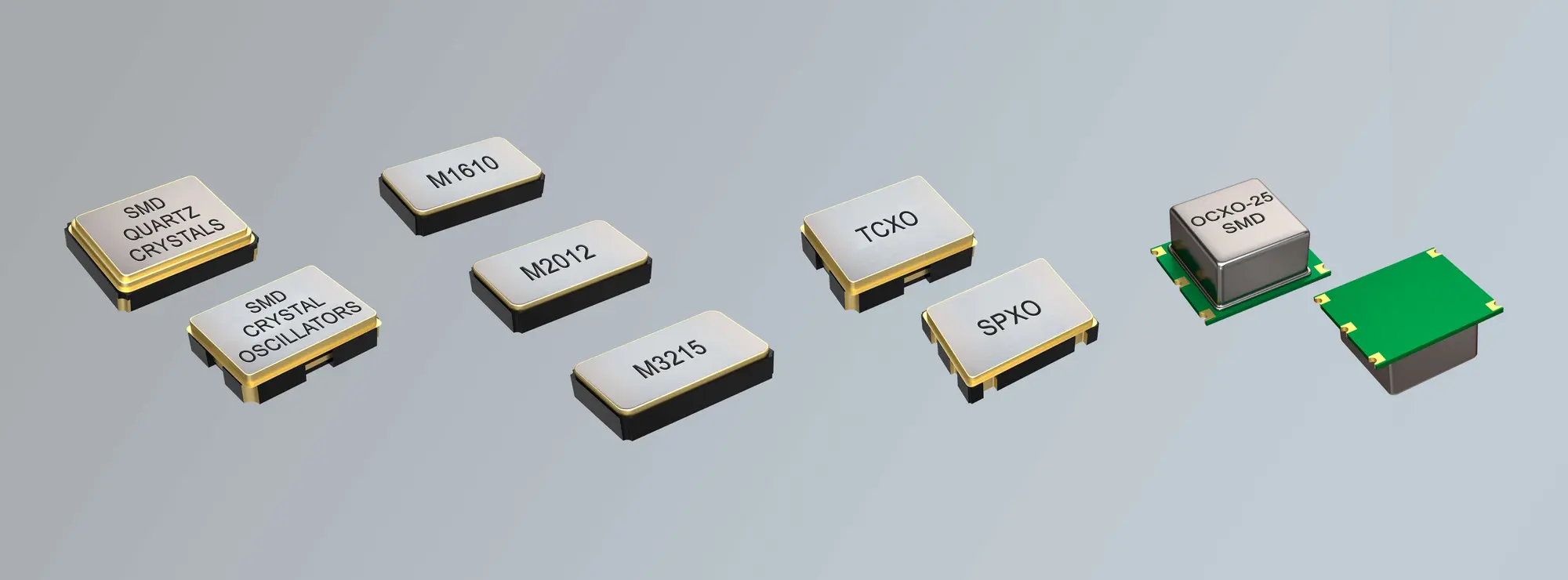

Our product range of oscillating crystals includes SMD and THT designs in ceramic and metal housings - from ultra-compact 1.2 × 1.0 mm housings to the proven HC-49/U. Frequencies from 32.768 kHz to 285 MHz cover practically every application.

What particularly characterises our crystals: the unique LRT technology (Low ESR Resonator Technology). By using only specially manufactured quartz resonators and optimised resistors, our quartz crystals achieve particularly fast and reliable transient response. All products are delivered 100% tested - with a quality index of 0 dppm.

For new developments, we recommend our top-selling products with long-term availability, such as theSMD03025/4 or the SMD02016/4 as the most universal and cost-effective SMD oscillating crystals in the 3.2 × 2.5 mm or the 2.0 × 1.6 mm ceramic housing or the M3215RR as the most cost-effective 32.768 kHz clock crystal in a 3.2 × 1.5 mm ceramic housing with optimised, standard ESR of 50 kΩ.

Quartz oscillators: SPXO, TCXO, VCXO, VCTCXO and OCXO

The oscillator configurator offers the same convenient selection experience for our entire oscillator portfolio. Whether standard clock oscillator (SPXO), temperature-compensated oscillator (TCXO), voltage-controlled oscillator (VCXO) or highly stable oven-controlled oscillator (OCXO) - you will find the right solution for your requirements. Sizes from a compact 1.6 × 1.2 mm and frequency ranges from 32.768 kHz to 170 MHz are available.

Why developers rely on PETERMANN-TECHNIK

Fast selection: Configurators instead of data sheet research
Direct sample ordering: No diversions via separate enquiry forms
Direct price enquiry: Enquiry form from the configurator can be used immediately
Excellent quality: 100 % testing, 0 dppm, exclusive LRT technology
Long-term availability: Strategically safe products, no risk of discontinuation
Competent advice: Over 30 years of expertise in the field of frequency products
Short delivery times: Many products available from stock or within a few weeks
Maximum service life: Our products are known for their exceptional durability and functional reliability
Innovative technologies: Through continuous research and development, we offer you state-of-the-art solutions that are at the cutting edge of technology.
Reliable partnership: With us, you benefit from a strategically secure and cost-efficient collaboration - with stable supply chains and long-term security of supply.
