Our 25 MHz crystals based on the exclusive LRT technology
are not only inexpensive, but also popular for their excellent performance, exceptional longevity and functional reliability. Each of our products is 100% tested! In this way, we also support our customers in their quest for sustainability and energy efficiency.
25 MHz AEC-Q200 SMD oscillating crystals are essential for the clocking of automotive SPE ICs. The 25 MHz AUTOMOTIVE LRT oscillating crystals in various housing versions have become established in our customers' applications. Based on the LRT technology based quartz resonators are popular for their extremely innovative resonator design and for their outstanding quality and performance. Based on the 100% testing process, our LRT crystals are also characterised by their very long service life and reliability, thus guaranteeing many years of trouble-free operation of the corresponding automotive applications.
Due to the very high production volumes, all of the frequency-generating components we supply offer an excellent price-performance ratio and therefore make a significant contribution to reliable costing and long-term cost efficiency.
What is the technical advantage of the LRT crystals, apart from the very favourable price?
Due to the very low resistance of the LRT resonant crystals, a significantly faster and safer transient behaviour in the circuit of the Single Pair Ethernet ICs is made possible, even over the automotive temperature range of -40/+125°C, so that the current consumption of the circuit is reduced and a lower power requirement results. Thus, the LRT resonant crystals support the customer not only in his technical performance, but also in his pursuit of sustainability and energy efficiency. The highest level of product reliability from delivery batch to delivery batch is naturally guaranteed, as only quartz resonators developed and manufactured in-house are used in our SMD LRT clock generators. This means that we can always supply the same LRT resonator design for the corresponding approved product for many years to come. Excellent quality and product performance is guaranteed by the 100% testing of the supplied SMD LRT resonator crystals. This is because everything from the raw quartz material to the end product is under the control of our own quality assurance department. Pure quality promise, for very durable SMD LRT oscillating crystals.
Which housing versions/quartz specifications are currently favoured by our automotive customers?

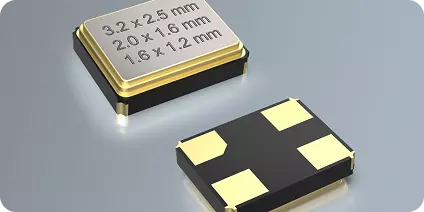

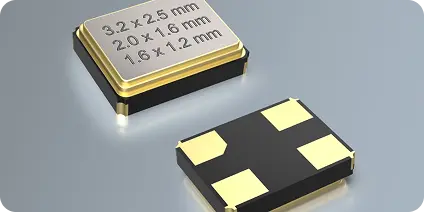

Where possible, our customers use SMD crystals in 4-pad ceramic housings with the dimensions 3.2×2.5mm (SMD03025/4 crystal series), including in automotive applications. The SMD03025/4 oscillating quartz series is currently the cheapest quartz series available! If this housing is too large for the application in question, the next smallest top-selling oscillating quartz crystal has dimensions of 2.0×1.6mm, or forvery small applications the quartz frequency of 25 MHz is also available in a ceramic housing with dimensions of 1.6×1.2mm. With regard to the quartz parameters, the frequency tolerance of ±20 ppm at +25°C and the temperature stability of ±50 ppm over the automotive temperature range of -40 to 125°C have proven to be ideal for SPE automotive applications. Customers usually opt for the quartz load capacitance of 12pF (wiring of the quartz by means of external capacitances of 18pF to GND each), but other load capacitances are of course also available, such as 8pF or 10pF.
SMD top seller oscillating crystals in the ceramic housings 3.2×2.5mm/4pad, 2.0×1.6mm/4pad or also 1.6×1.2mm/4pad are of course also available in other versions. The developer or purchaser are our exclusive product configuratorsso that the desired products can be configured in no time at all, enquired about immediately or samples requested. PETERMANN-TECHNIK GmbH can also support the customer with a wide range of design-in activities during the development phase and series production.
FREQUENCY CONTROLLED PRODUCTS - CRAFTED FOR EXCELLENCE - TIMING FOR FUTURE.
PETERMANN-TECHNIK GmbH - your clocking experts since 1996. Driven by technology, top quality and security of supply!
Links to the product configurations and sample orders:
Product configurator 3.2×2.5mm/4pad oscillating quartzsample order
Product configurator 2.0×1.6mm/4pad oscillating quartzsample order
Product configurator 1.6×1.2mm/4pad oscillating quartzsample order
PETERMANN-TECHNIK also stands for:
- Outstanding quality: Thanks to our unique LRT technology (LOW ESR Resonator Technology), we guarantee excellent performance and maximum reliability. Every product is 100% tested.
- Maximum service life: Our products are known for their exceptional durability and functional reliability, offering you long-term benefits.
- Innovative technologies: Through continuous research and development, we offer you state-of-the-art solutions that are at the cutting edge of technology.
- Reliable partnership: With us, you benefit from a strategically secure and cost-efficient collaboration - with stable supply chains and long-term security of supply.
- Competent support: Our experienced team is always on hand to answer technical questions and offer you the best possible service.
You too can rely on our products and benefit from quality, innovation and partnership at the highest level! You can reach us at info@petermann-technik.de or by telephone on +49/8191/305395. Your success is our goal!
