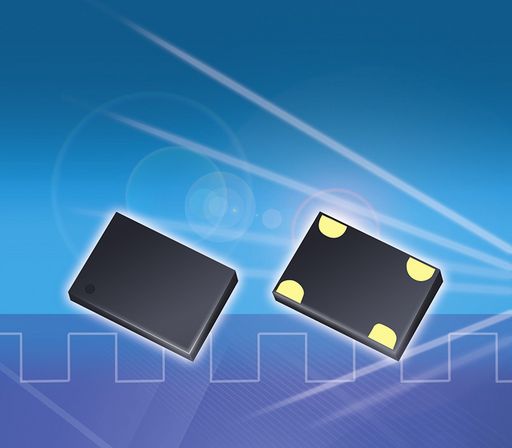

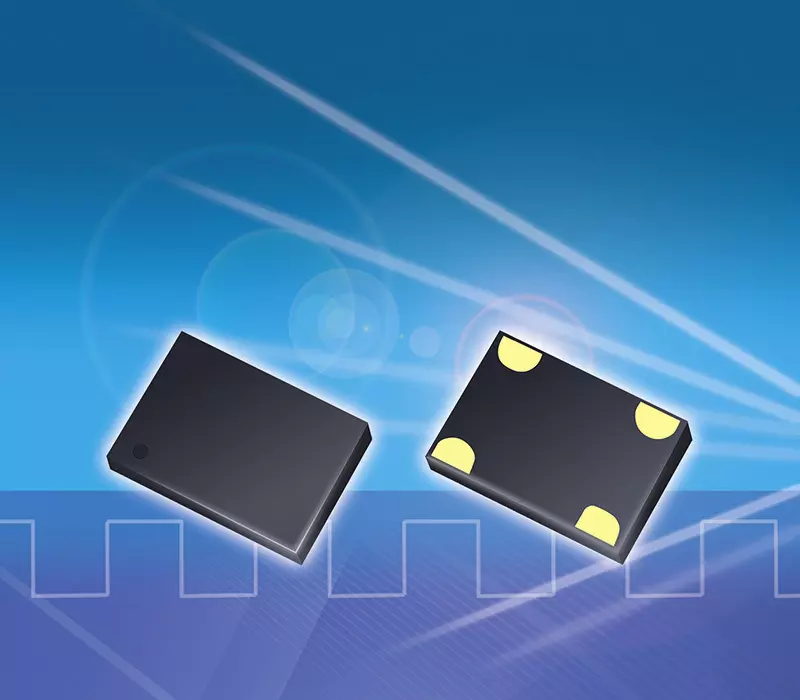

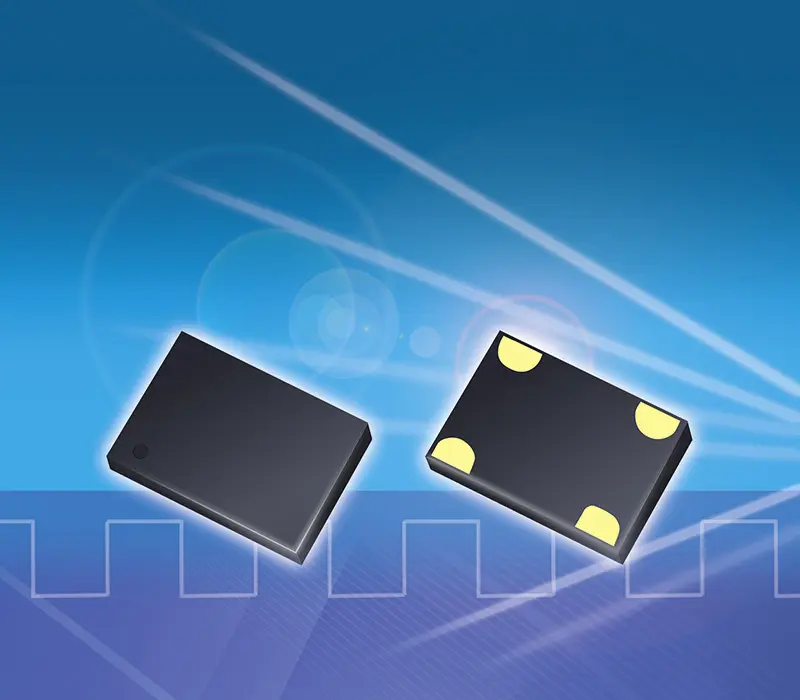

Low power low cost silicon clock oscillators from our product range feature state-of-the-art IC technology and set standards in terms of performance, extreme longevity (MTBF 1 billion hours), excellent shock and vibration resistance, size, accuracy, jitter, power consumption and flexibility. In our SMD silicon oscillators of the LPO, HTLPO, WTLPO series and in the corresponding automotive versions (AEC-Q100), a silicon resonator is used to clock the IC. Due to the very low oscillation energy of the micro-silicon resonator, the performance of the SMD silicon oscillators is worlds better than that of comparable quartz oscillators. In principle, SMD silicon clock oscillators can be used in all applications that require a very inexpensive clock oscillator. Samples can normally be dispatched on the same day if requested before 14:00.
The trend in favour of SMD silicon oscillators continues unabated. On the one hand, they are inexpensive considering their performance and are replacing quartz oscillators, apart from TCXOs and VC-TCXOs, in all vertical markets and applications. In addition, the ultra low power 32.768 kHz and MHz oscillators enable system energy savings of up to 50% - ask our specialists how this is possible.
WHICH VERSION DO WE RECOMMEND FOR NEW DEVELOPMENTS?
For new developments, we recommend versions in a 2.0x1.6mm or maximum 2.5x2.0mm housing, with the very wide supply voltage range of 2.25 - 3.63 VDC (-XX- in the article designation), the frequency stability of ±20ppm@-40/+85°C, ±30ppm@-40/+105°C, ±30ppm@-40/+125°C, or ±50ppm@-55/+125°C, with the desired frequency. For the function of pin1, we recommend using the stand-by function, even if this function is not absolutely necessary. Reason. On the one hand, the wiring effort for pin #1 is very low in relation to the possible price saving. This is because we normally have large quantities of stock with the stand-by function in our warehouse, so that we can deliver at very short notice and at low cost. Oscillators without the stand-by function on pin 1 are manufactured in the required quantity, which is normally significantly more expensive. If no stock quantities of the desired oscillator are available, the standard delivery time, even for customised products, is 4 - max. 6 weeks.
HOW TO IMPROVE THE EMV BEHAVIOUR FREE OF CHARGE
The SMD silicon clock oscillators have the so-called SoftLevel function. Detailed information can be found in the following report:"How SMD silicon clock oscillators significantly improve EMC."
The free SoftLevel function makes it possible to slow down the rise/fall time of the output signal. This makes the edges of the output signal rounder; in the slowest version, the output signal resembles a shark fin. With an extension of up to 45% of the rise/fall time, the EMC attenuation at the 11th harmonic is over -60 dB. An enormous value for such a simple adjustment oftrise and tfall.
ENGINEERING SERVICES COMPLETE OUR EXTREMELY BROAD PRODUCT RANGE:
1) Focussing on the entire design-in process
Our core expertise lies in frequency-generating components and the associated customised product consulting as well as complete customer support during the design-in process. We offer our customers special added value by constantly using our technical expertise to offer a customer-oriented solution based on sophisticated and innovative components. We therefore accompany our customers through the entire design-in process, from application-orientated product selection and sample assembly to series production and series support.
2) Our design-in service:
▪ Comprehensive product consulting
▪ Circuit analyses
▪ Circuit simulations
▪ Measurement of the quartz crystal/oscillator used based on the standards for oscillating crystals (IEC60444)
▪ Measurement of the current and drive level of quartz crystals (IEC60444)
Determination of the operating frequency and the effective load capacity (IEC60444)
▪ Determination of the safety factor and transient response safety (IEC60444)
▪ Recommendations for adapting the circuit to the respective frequency-determining component
▪ Large series support in cooperation with the customer departments involved
3) Advantages for our customers:
▪ Test outsourcing enables the customer to achieve considerable cost and time savings as well as a technical and comprehensive basis for decision-making.
▪ Express implementation and provision of technical analyses with a final report within a very short time.
▪ Extremely fast market launch of a product and relief for the customer's engineering department thanks to standards-based tests and extremely short analysis times.
▪ Early detection and correction of errors in the circuitry of the frequency-generating components to enable smooth mass production.
Our analysis methods comply with the specifications of the automotive and commercial vehicle industries, among others, and are extremely sound and reliable.
