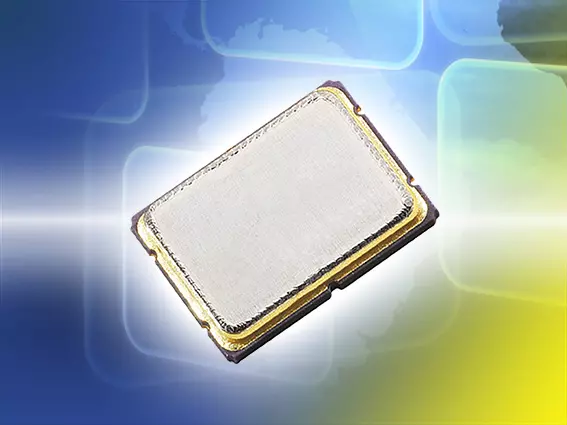

Clocking specialist PETERMANN-TECHNIK from Landsberg/Lech presents a very small SMD quartz crystal in the 2.0 x 1.6 mm ceramic housing of the SMD02016/4 series, which was developed for use in radio applications, among other things.

Standard frequencies are available for the ISM band, Wireless M-Bus, ZigBee, WLAN, Bluetooth, Bluetooth Low Energy, etc., among others. In addition, the very broad fundamental frequency spectrum of 24 - 60 MHz is remarkable. Frequency tolerances at 25 °C are available from ±10 ppm, temperature stabilities from ±8 ppm (0/+50 °C) and ageing values of ±1 ~ ±3 ppm. Of course, this quartz can also be supplied with larger frequency tolerances, so that narrow or broadband concepts can be realised depending on requirements. Low resistances enable excellent transient response safety reserves. The 2.0 x 1.6 mm/4pad crystals, which are available in the temperature range of -40/+85 °C, can of course also be used in industrial or medical applications and wired with a simple pierce-oscillator design (2 external capacitances to GND). The service catalogue of the specialists at PETERMANN-TECHNIK also includes circuit development, analyses, simulations, matching tests, etc. in order to provide the customer with a very short time-to-market. time-to-market. Further information can be found at: SMD02016/4 Technical questions: Telephone: 0 81 91 / 30 53 95 E-mail: info@petermann-technik.de

WINZLING FOR WIRELESS APPLICATIONS IN THE BASE TONE FREQUENCY RANGE OF 24 ~ 60 MHz
