SAVE MONEY WITH SMD OSCILLATORS -40/+105°C

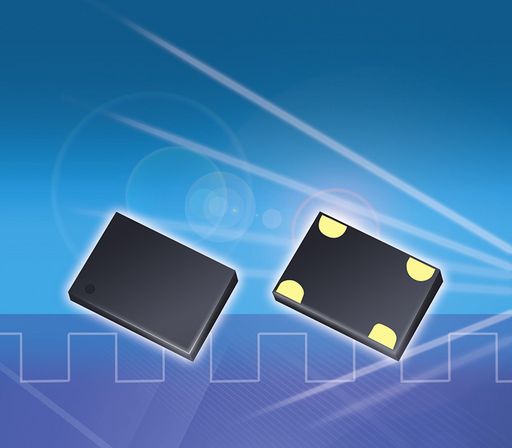

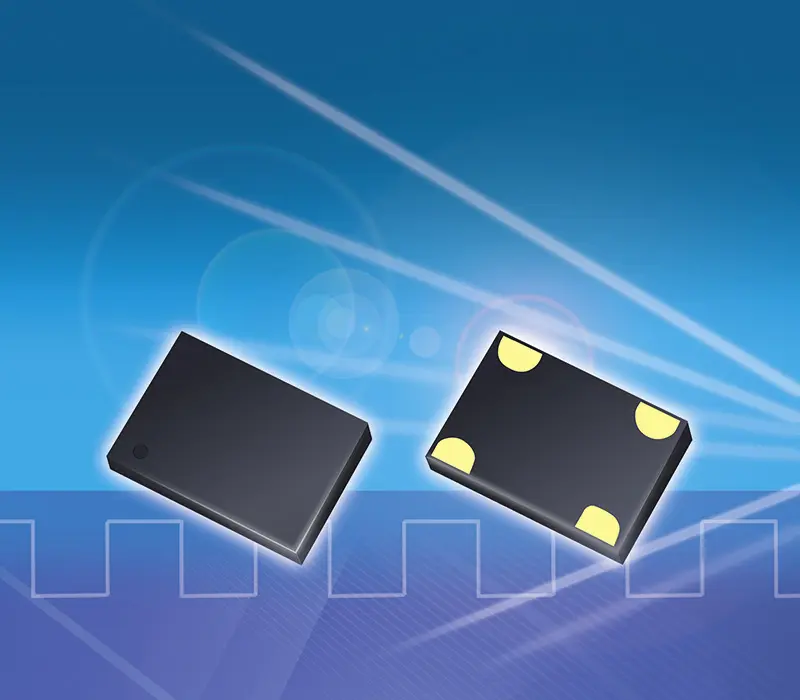

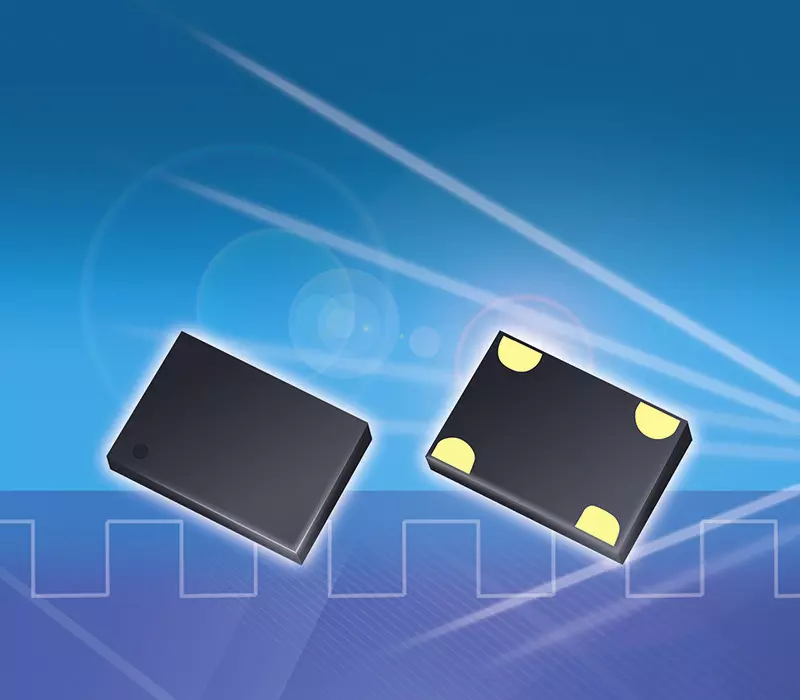

Normal clock oscillators cannot be supplied by many manufacturers with sufficient accuracy and at sufficiently low cost in the extended temperature range of -40/+105°C. This is why we offer the high temperature low power oscillators of the "HTLPO" series. The very inexpensive HTLPO oscillators are available in the frequency range from 1 to 137 MHz and in housings with dimensions of 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm, 5x3.2mm and 7x5mm. For new developments, we recommend the use of HTLPO oscillators in the most favourable 2.5x2.0mm housing. The standard accuracy is ±30ppm@-40/+105°C, optional oscillators from ±20ppm@-40/+105°C are available. The MTBF is an enormous 500 million hours. In addition, the HTLPO oscillators are drop-in replacements and can be fitted to the same layouts as SMD clock oscillators from other manufacturers. Of course, our product range also includes SMD low power oscillators with a temperature range of -40/+125°C. The standard accuracy is ±50ppm@-40/+125°C, available from ±20ppm. The ICs built into the HTLPO oscillators are also highly innovative, so that the HTLPO oscillators can be operated with any supply voltage in the range of 2.25 - 3.63 VDC. This feature saves an enormous amount of time and money. Gone are the days when a separate oscillator had to be qualified, procured and stored for each supply voltage and accuracy. Of course, HTLPO oscillators can also be obtained with a supply voltage of 1.8 VDC. Are you interested in quotations, samples or our excellent technical support? Simply contact us so that our specialists can advise you in detail. Of course, we can also cross reference competitor products and offer you our alternatives very quickly. If required, samples in all common frequencies and housings are available immediately from our warehouse. Find out more now:HIGH TEMPERATURE 1 - 137 MHZ OSCILLATORS or HIGH TEMPERATURE LOW POWER OSCILLATORS Technical questions: Phone: 0 81 91 / 30 53 95 E-mail: info@petermann-technik.de
