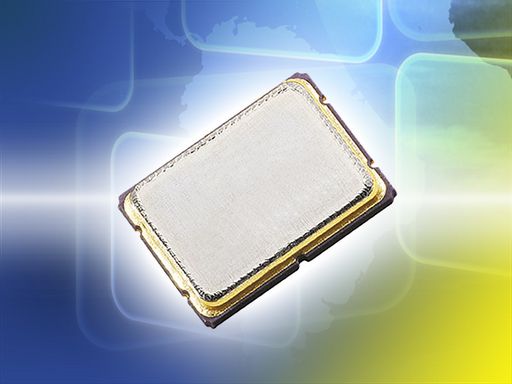

The "FUNKODULE SUB 1GHZ" vertical market continues to grow very strongly. Coupled with very extensive development support, the quartz specialist PETERMANN-TECHNIK from Landsberg offers the LOW COST MINI-SMD quartz in a 3.2 x 2.5 mm ceramic housing with very narrow frequency tolerances.

For radio chips from all manufacturers in the sub 1GHz range, the quartz and oscillator specialist PETERMANN-TECHNIK from Landsberg offers very favourable MINI SMD crystals in a ceramic housing with the dimensions 3.2 x 2.5 mm. The SMD crystals, which are manufactured in clean rooms, can be supplied in the frequency range of 12 ~ 60 MHz in the fundamental tone and with frequency tolerances from ±8ppm. Working temperature ranges are possible from 0/+40°C ~ -40/+125°C. Of course, the SMD03025/4 series quartz can be qualified according to the automotive standard AECQ200. In order to be able to offer customers a very short time-to-market, PETERMANN-TECHNIK specialists support customers with application analyses, circuit analyses, circuit development and circuit simulations as technical added value. Reference designs are available. Further information is available at: SMD03025/4 Technical questions: Telephone: 0 81 91 / 30 53 95 E-mail: info@petermann-technik.de

LOW COST MINI-SMD CRYSTAL FOR RADIO MODULES
