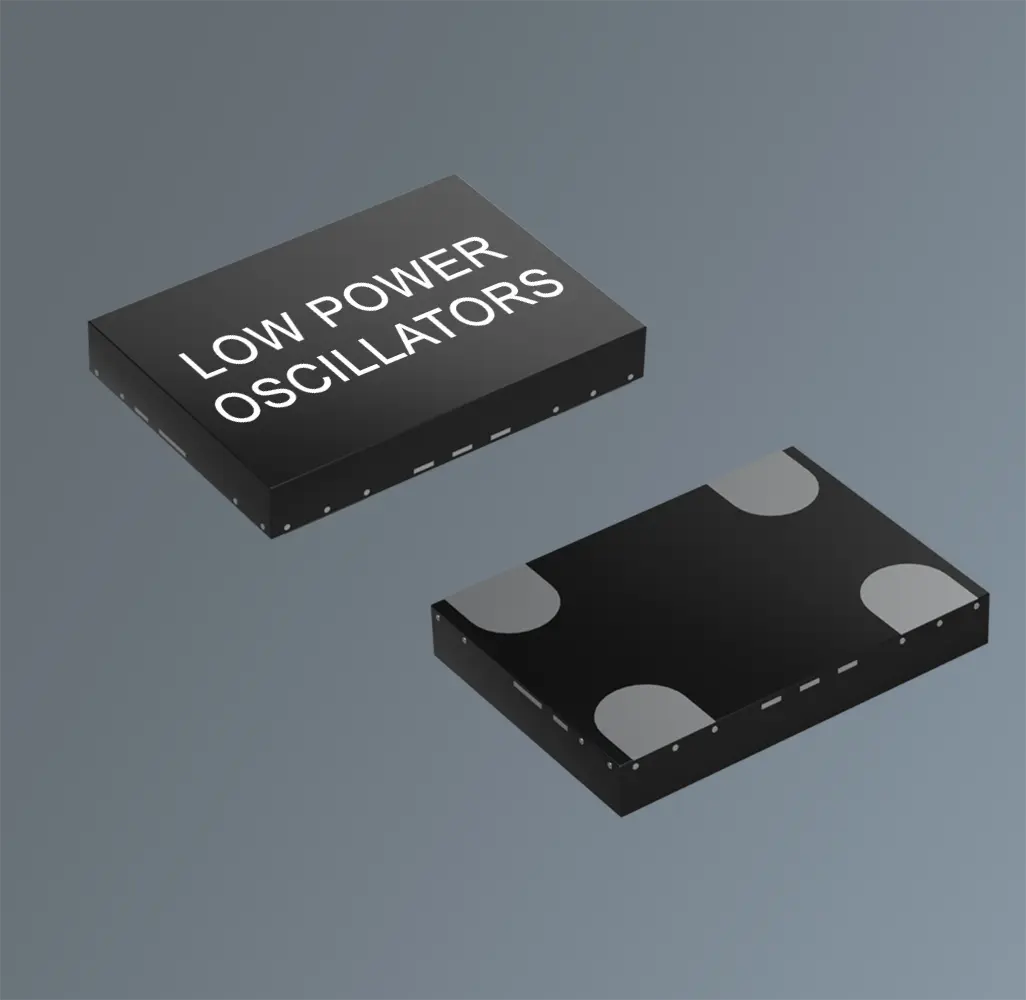

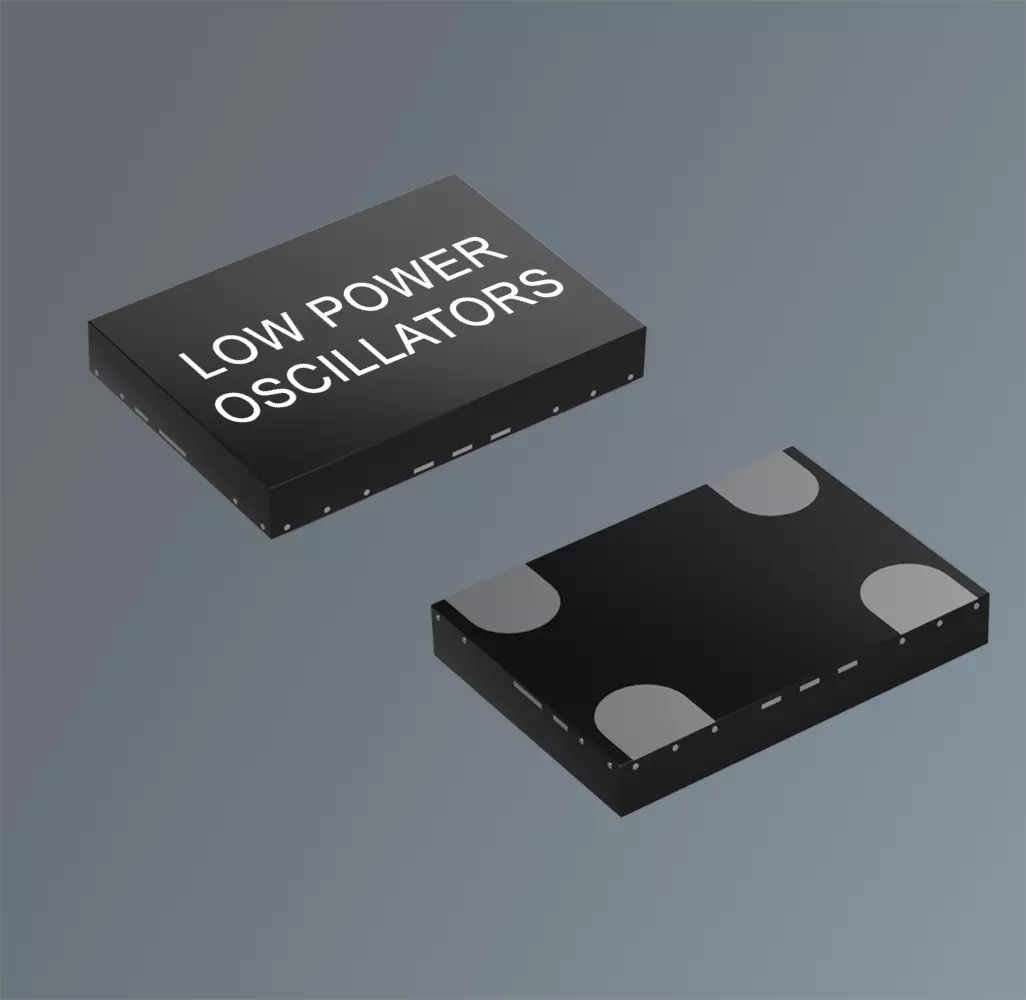

In the frequency range from 1 - 137 MHz, the SMD clock oscillators of the "LPO" series available from stock have a standard frequency stability of ±20ppm@-40/+85°C. The standard ageing is ±3ppm max. after 10 years. It is recommended to use the supply voltage range of 2.25 - 3.63 VDC (order code -XX-) so that the same multi-use oscillator can be used in a wide variety of applications. This saves enormous costs in the design-in and in the supply chain. By combining requirements, more favourable component prices can be achieved. Of course, the LPO clock oscillator is also available with a VDD of 1.8VDC. The LPO-SMD oscillators are characterised not only by very low phase noise values and very low power consumption, but also by excellent durability (MTBF >500 million hours), shock resistance (10,000g) and vibration resistance (70g). AEC-Q100 versions are also available - see LPO-AUT (-40/+85°C), HTLPO-AUT (-40/+125°C) and WTLPO-AUT (-55/+125°C). To contact us quickly and easily, please use the product generators on the relevant product pages or call us on +49/8191/305395.
Further information is available at:
Technical questions:
Phone: +49 / (0) 81 91 / 30 53 95
E-mail: info@petermann-technik.de
