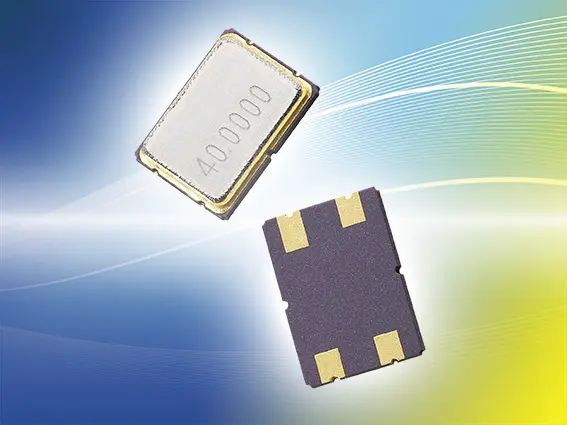

The clocking specialist PETERMANN-TECHNIK from Landsberg/Lech presents high performance low cost MINI-SMD crystals for Bluetooth applications in various very small housing dimensions. These are available in miniaturised ceramic packages measuring 1.6 x 1.2 x 0.3 mm (SMD01612/4 series), 2.0 x 1.6 x 0.45 mm (SMD02016/4 series), 2.5 x 2.0 x 0.6 mm (SMD02502/4 series) and 3.2 x 2.5 x 0.6 mm (SMD03025/4 series). All crystals are available in an extended temperature range of up to -40/+125 °C with frequency tolerances at 25 °C from +-8 ppm and with temperature stabilities from ±8 ppm over 0/+70 °C. In addition to the classic Bluetooth frequencies, the MINI-SMD crystals cover the frequency range from 12 ~ 125 MHz depending on the housing dimensions. If MINI SMD crystals with 32.768 kHz are also to be used together with the Bluetooth crystal, the PETERMANN-TECHNIK product range includes cost-effective solutions in ceramic housings of 3.2x1.5x0.8 mm (M3215 series), 2.0 x 1.2 x 0.55 mm (M2015 series) and 1.6 x 1.0 x 0.45 mm (M1610 series). The standard frequency tolerance at 25 °C is +-20 ppm. +-10 ppm versions are available on request. The standard temperature range for all 32.768 kHz crystals is -40/+85 °C, versions with up to -40/+125 °C are available on request. The service catalogue of the specialists at PETERMANN-TECHNIK also includes circuit development, analyses, simulations, matching tests, etc. Everything from a single source is PETERMANN-TECHNIK's credo in order to be able to offer the customer an extremely short time-to-market.
Further information at:
Technical questions:
Telephone: 0 81 91 / 30 53 95
E-mail: info(at)petermann-technik.de
