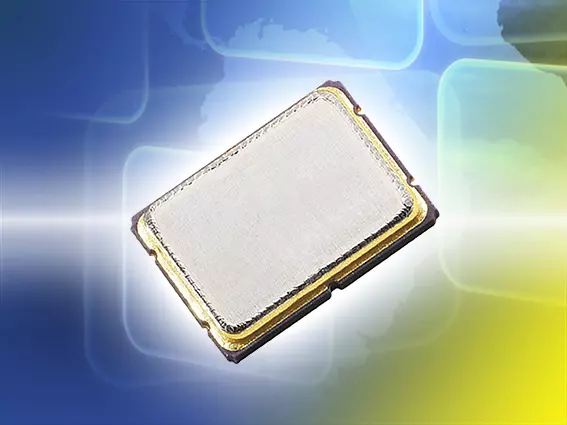

The SMD crystal of the "SMD03025/4" series in a 3.2x2.5mm/4pad ceramic housing is the cheapest and most variable MINI SMD crystal with excellent reliability. Now available in the frequency range from 7.9 - 74.250 MHz (AT-Fundamental Cut), the MINI-SMD crystal can be supplied with a frequency tolerance at 25°C from ±10ppm or with a temperature stability from ±10ppm@-20/+70°C, or ±15ppm@-40/+85°C. Over the temperature range of -40/+105°C, the best possible temperature stability is ±40ppm, or ±50ppm over the temperature range of -40/+125°C. Ageing is in the range of ±2ppm after the first year and ±10ppm after 10 years. Versions with a total tolerance of ±25ppm are also available for KNX applications. Of course, there are also AECQ200 compatible solutions for automotive applications, or versions with a higher drive level of up to 500µW max. on request.
Due to the very favourable price, the all-rounder manufactured in clean rooms can be used in all applications that require a very inexpensive SMD crystal with excellent parameters and outstanding longevity, such as in the automotive, medical, embedded, industrial, commercial, IoT, WIFI, radio (WLAN, ISM, KNX, ZigBee, Z-Wave, etc.), consumer, telecom, etc., sector.
Of course, the PETERMANN-TECHNIK product range also includes 32,768 kHz solutions (crystals and ultra-low power oscillators).
In addition to the very extensive product range, the specialists at PETERMANN-TECHNIK offer sound product advice. If required, very extensive circuit analyses/circuit simulations can also be carried out by our own in-house engineering department. The analyses are carried out in accordance with the DIN/IEC60444 standards for oscillating crystals and include oscillation safety tests (determination of the exact oscillation reserve), determination of the crystal current, etc. At the end, there is a very comprehensive report, which may contain adaptation suggestions or confirm the correct dimensioning of the circuit to be tested. Series support is carried out in coordination with the customer's engineering, purchasing, production and QA departments. The aim is to provide the customer with a very fast time-to-market thanks to a very comprehensive range of services.
