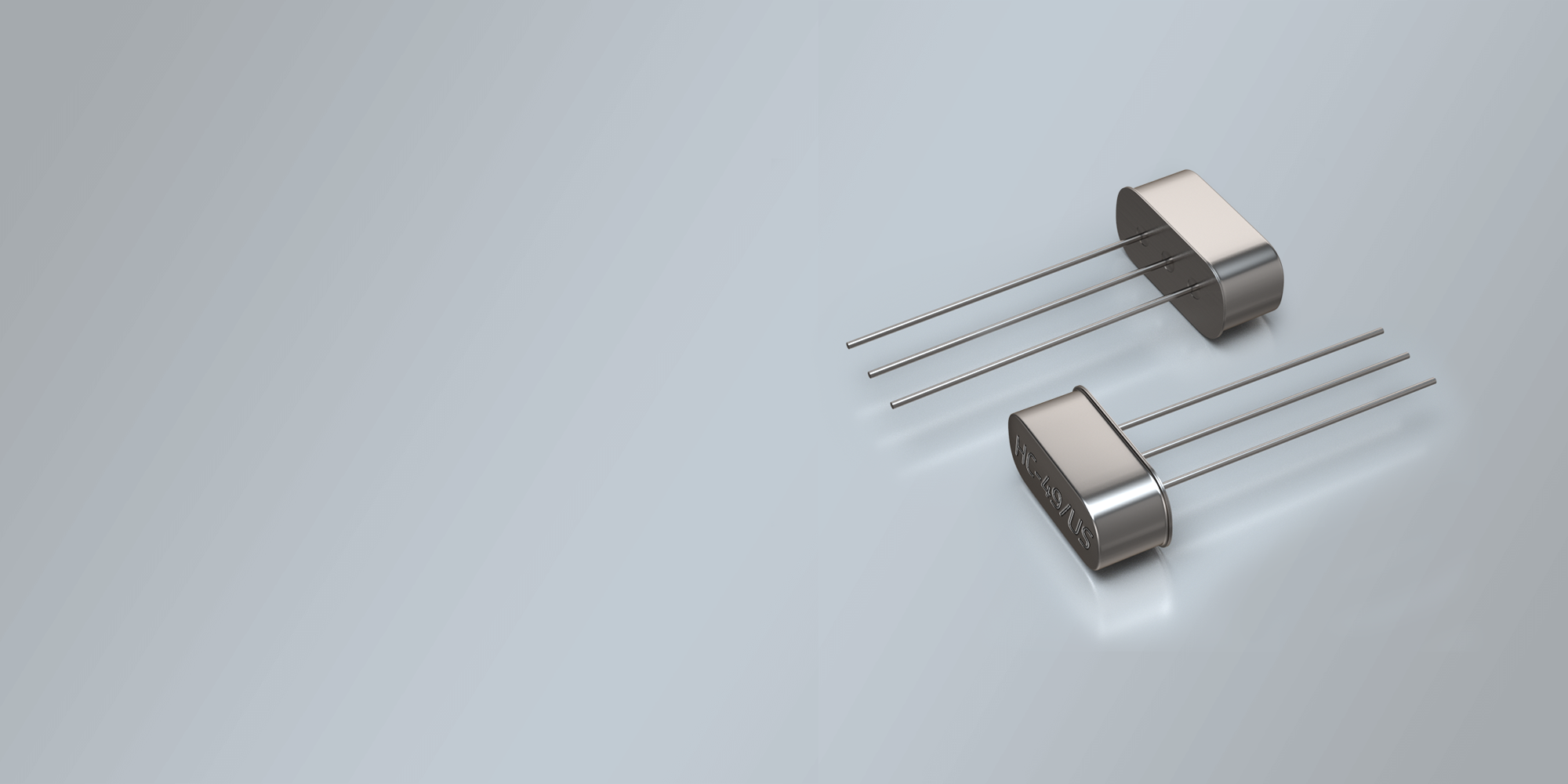

THT QUARTZ CRYSTAL HC-49/US 3 LEADS 11.05 x 4.65 mm 3.48755 - 75.0 MHz
- High reliability for low cost
- Low profile – 3.5 and 2.5 mm max. package height
- Extended temperature range to -55/+125°C
- Excellent clock signal generator for CPU´s
- Qualified for automotive applications
- General Data
- Temperature Stability

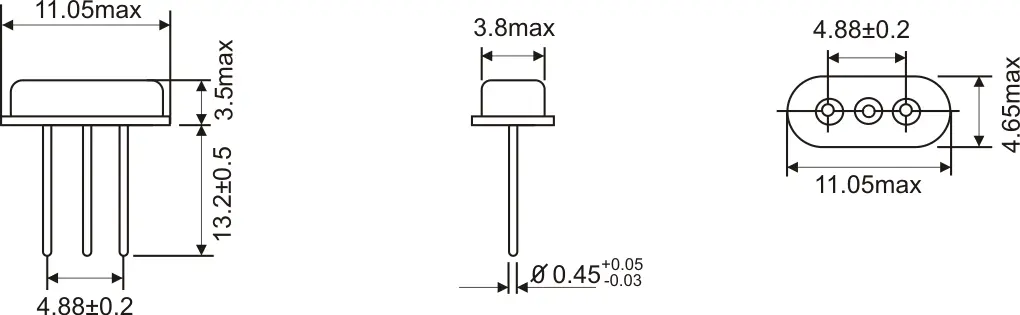

- Dimensions
- Product Enquiry Configurator
- Sample Request Configurator
Product Name
Quartz Crystal
Package
THT Metal
Dimensions in mm (W x D x H)
11.05 x 4.65 x 3.5 mm
Frequency Range
3.49 - 75.00 MHz
NUMBER OF LEADS
HC-49/3US = 3 (middle pin for grounding)
OPTIONS FOR HOUSING
Insulator = for 2 leads and 3 leads housing Cutted leads = only for 2 leads housing
FREQUENCY RANGE
3.48755 ~ 40.0 MHz AT-Fundamental
24.0 ~ 44.0 MHz BT-Fundamental
24.576 ~ 75.0 MHz 3rd OvertoneFREQUENCY TOLERANCES AT 25°C
±5 ppm ~ ±50 ppm
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF
WORKING TEMPERATURE RANGES
0/+50°C ~ -55/+125°C
SHUNT CAPACITANCE C0
7 pF max.
DRIVE LEVEL
100 µW typical (0.01 mW ~ 1 mW possible)
AGING
±3 ~ ±5 ppm per year standard (±2 ppm available as option)
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE
-55°+125°C
DELIVERY FORM
Standard = Bulks for 2 leads and 3 leads housing
Option = Paper Tape on Reel only for 2 leads housing
| ±3 ppm | ±5 ppm | ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • | • | |
| 0/70 °C | • | • | • | • | • | ||
| -20/70 °C | • | • | • | • | • | ||
| -40/85 °C | • | • | • | • | |||
| -40/125 °C | • | • | |||||
| -55/125 °C | • |
DATASHEET: THT QUARTZ CRYSTAL HC-49-3US-THT
