SMD Ceramic/4pads MHz Crystal 1.2 x 1.0 x 0.32 mm 24 - 285

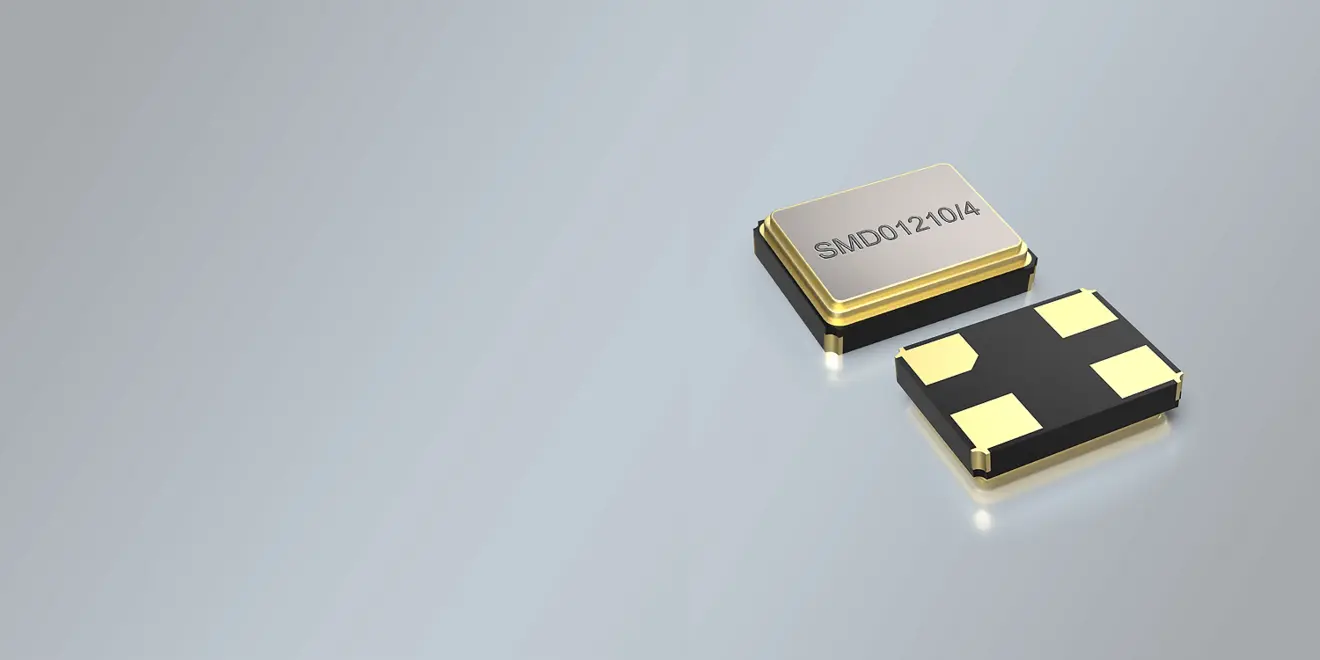

SMD oscillating quartz 1.2 x 1.0 mm in ceramic housing
Top performance and excellent longevity at a favourable price
Resistance-reduced crystal design (LRT technology) for fast and reliable transient response
High drive level for use in all circuits
Frequency tolerance of ±10ppm@+25°C, narrow temperature stabilities and minimal ageing values available
Applications include wearables, automotive, wireless (WLAN, WIFI, Zigbee, ISM, KNX, etc.), IoT, IoTT, M2M, GPS, embedded, industrial, telecom, medical, hearing aids, telemedicine, or wherever a high performance low cost crystal is required.

Product Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad

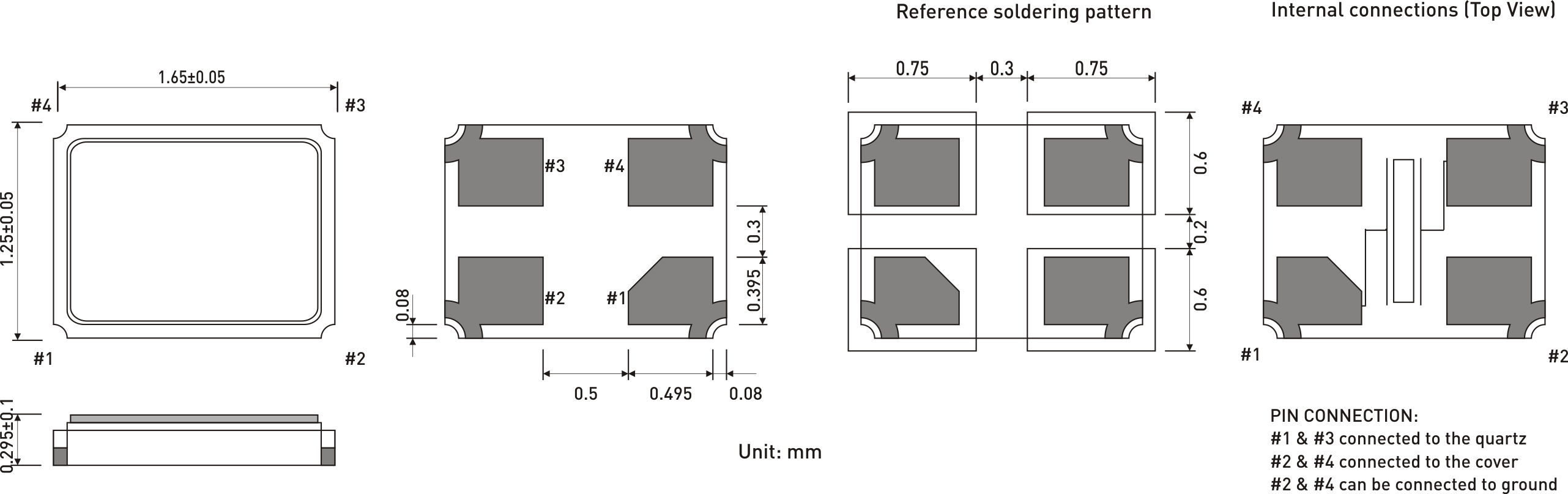

Dimensions in mm (W x D x H)
1.2 x 1.0 x 0.32 mm
Frequency Range
32.00 - 96.00 MHz
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
EQUIVALENT SERIES RESISTANCE (ESR)
24.0 ~ 32.0 MHz = 200 Ω
32.0 ~ 38.0 MHz = 100 Ω
38.0 ~ 80.0 MHz = 80 Ω
80.0 ~ 285.0 MHz = 60 Ω
AGING
±1 ppm ~ ±3 ppm max. per year
DRIVE LEVEL
100 μW typ. / 200 μW max.
WORKING TEMPERATURE RANGES
-10/+60°C ~ -40/+85°C
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF (8 pF standard), or Series
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
STANDARD FREQUENCIES
24.0 MHz / 25.0 MHz / 26.0 MHz / 32.0 MHz /
38.4 MHz / 40.0 MHz /
48.0 MHz / 50.0 MHz
NUMBER OF SOLDER PADS
4
STORAGE TEMPERATURE
-55°+125°C
DELIVERY FORM
Tape and Reel (3.000 pcs reel)

	±10 ppm	±15 ppm	±20 ppm	±30 ppm
-10/60 °C	•	•	•	•
0/70 °C	•	•	•	•
-20/70 °C	•	•	•	•
-40/85 °C		•	•	•
