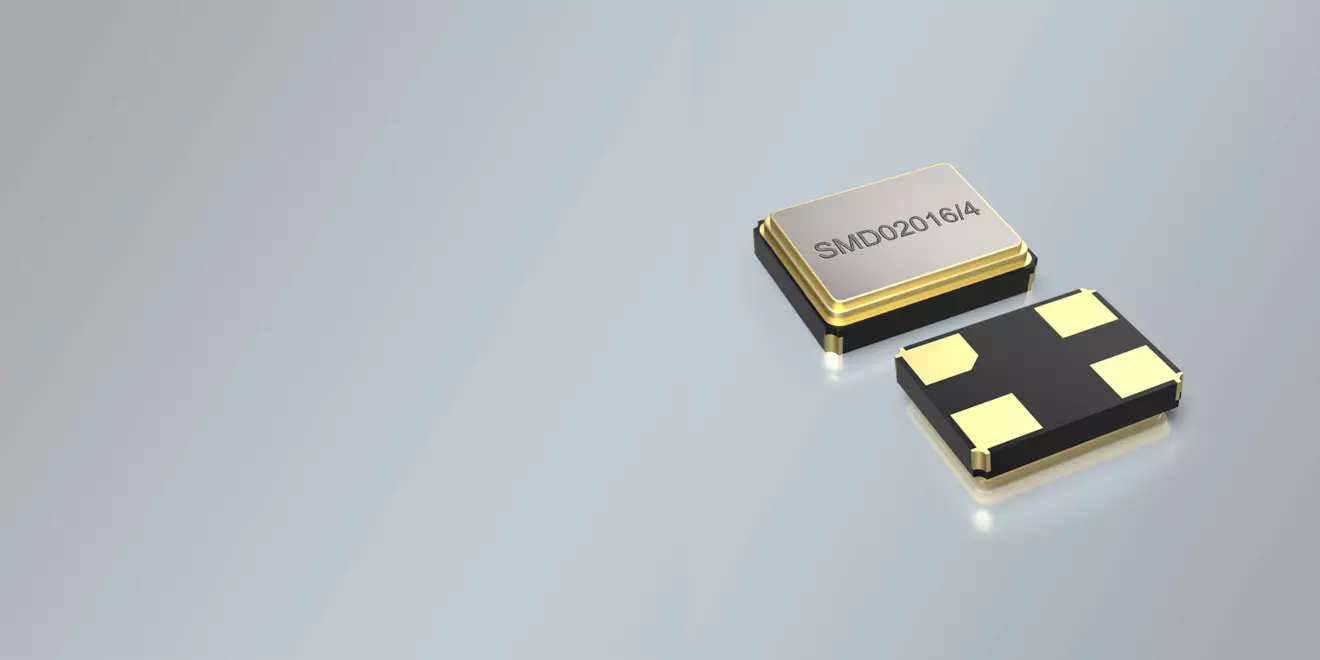

NAME:SMD02016/4 (Low ESR)

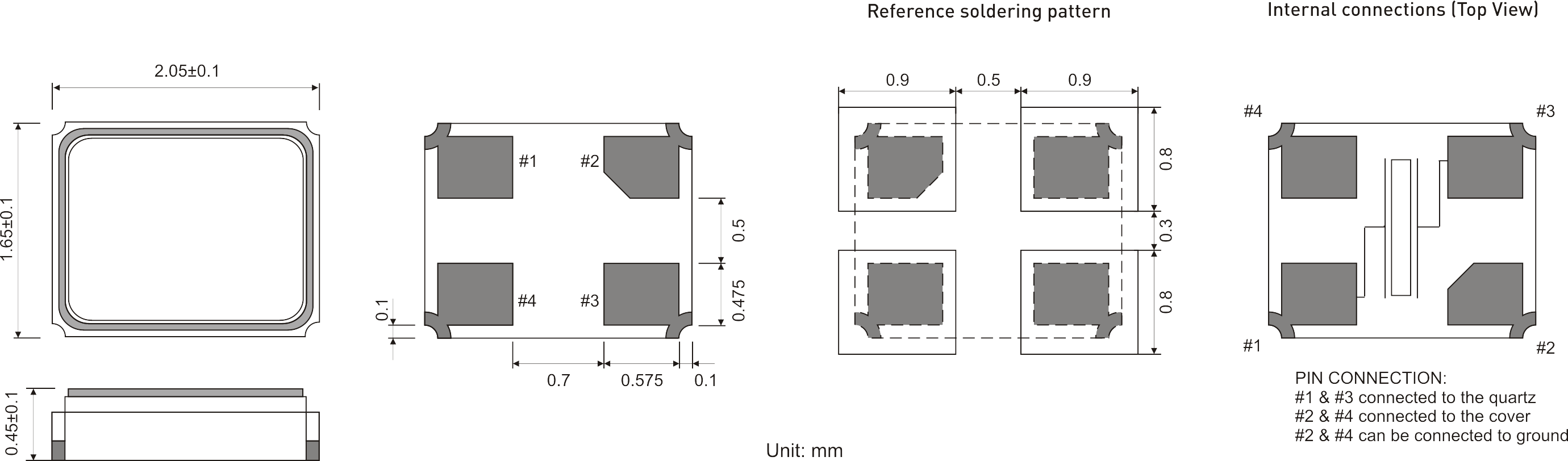

IMAGE:1

SMD QUARTZ CRYSTAL 2.0 x 1.6 mm 16.0 - 60.0 MHz

SMD QUARTZ CRYSTAL 2.0 x 1.6 mm 16.0 - 285.0 MHz

  • High reliability for low cost
  • Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
  • Low resistance quartz design (LRT technology) for fast and safe oscillation start-up
  • Recommended for BLE, Bluetooth, WI-FI, Wireless, IoT, Wearables, Telecom, Industrial, Medical applications, etc.
  • Excellent clock signal generator for CPU´s
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    2.0 x 1.6 x 0.45 mm

  • Frequency Range

    16.00 - 285.00 MHz

  • NUMBER OF SOLDER PADS

    4

  • STANDARD FREQUENCIES

    16.0 MHz / 20.0 MHz / 24.0 MHz /
    24.576 MHz / 25.0 MHz / 26.0 MHz /
    27.0 MHz / 27.12 MHz / 30.0 MHz /
    32.0 MHz / 37.4 MHz / 38.4 MHz /
    39.0 MHz / 40.0 MHz / 48.0 MHz /
    50.0 MHz / 52.0 MHz / 76.8 MHz /
    80.0 MHz / 96.0 MHz

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    Series, 6 pF ~ 50 pF

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    1.5 pF max.

  • DRIVE LEVEL

    100 μW typ. / 200 μW max.

  • AGING

    ±2 ppm per year standard (±10 ppm max. after 10 years available on request)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

  ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/105 °C
-40/125 °C
SMD QUARTZ CRYSTAL 2.0 x 1.6 mm 20.0 - 60.0MHz
  • ISM Band
  • Networking
  • Industrial
  • RFID/NFC
  • Wearables
  • IoT
  • HD & Storage
  • Mobile Communication
  • PC/PC Peripheral/IT
  • WiMAX, WLAN, Wi-Fi
  • Embedded
  • Automotive
  • Bluetooth/Bluetooth Low Energy (BLE)
  • Wireless Modules
  • Machine-to-Machine (M2M) Connectivity
  • Ultra-Low Power MCU

DATASHEET: SMD QUARTZ CRYSTAL SMD2016-4 (GENERAL FEATURES)

SMD QUARTZ CRYSTAL SMD2016-4 (GENERAL FEATURES)
