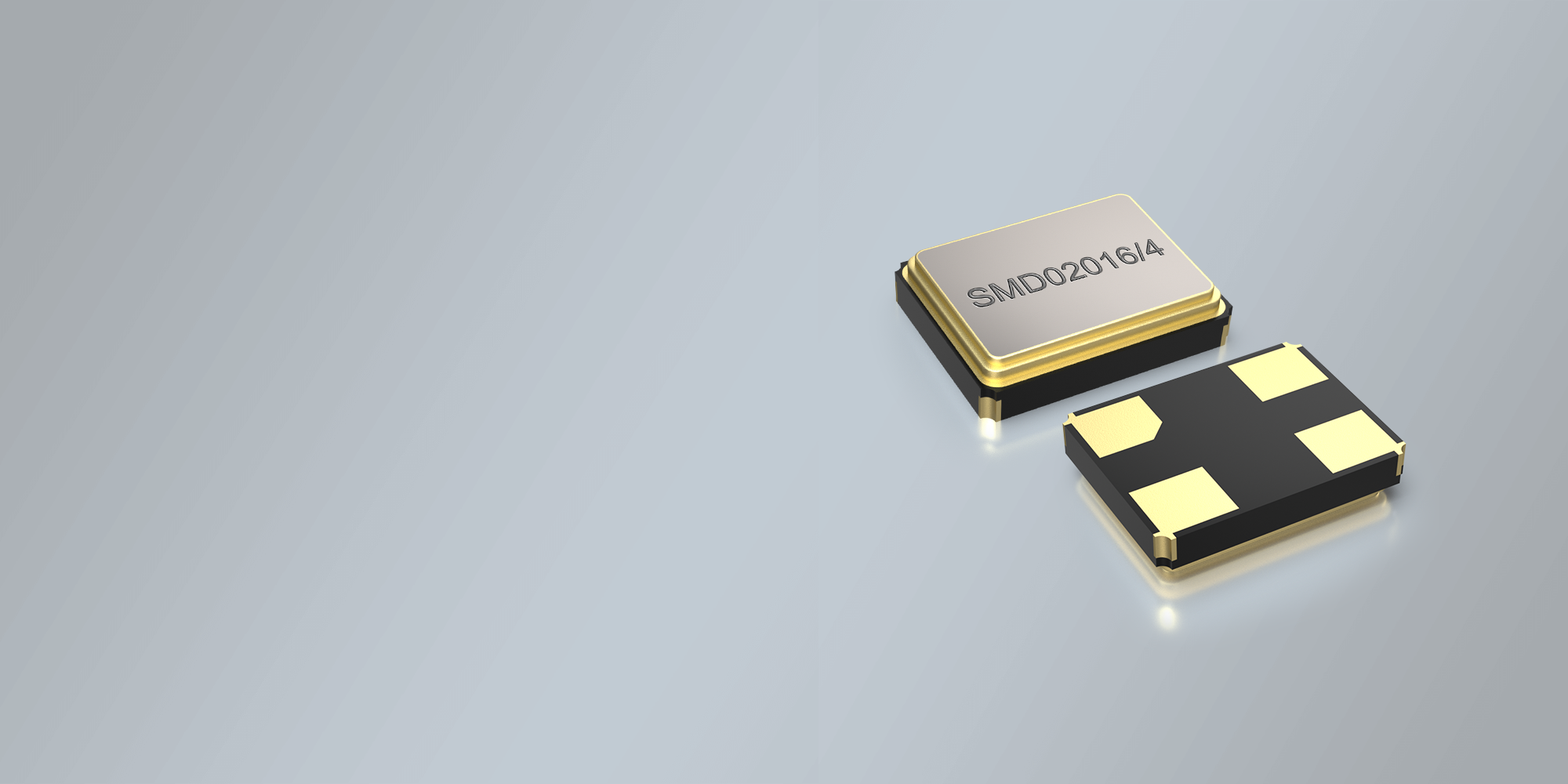

SMD QUARTZ CRYSTAL 2.0 x 1.6 mm 16.0 - 285.0 MHz

High reliability for low cost
Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
Low resistance quartz design (LRT technology) for fast and safe oscillation start-up
Recommended for BLE, Bluetooth, WI-FI, Wireless, IoT, Wearables, Telecom, Industrial, Medical applications, etc.
Excellent clock signal generator for CPU´s

Product Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
2.0 x 1.6 x 0.45 mm
Frequency Range
16.00 - 285.00 MHz
STANDARD FREQUENCIES
16.0 MHz / 20.0 MHz / 24.0 MHz /
24.576 MHz / 25.0 MHz / 26.0 MHz /
27.0 MHz / 27.12 MHz / 30.0 MHz /
32.0 MHz / 37.4 MHz / 38.4 MHz /
39.0 MHz / 40.0 MHz / 48.0 MHz /
50.0 MHz / 52.0 MHz / 76.8 MHz /
80.0 MHz / 96.0 MHz
DELIVERY FORM
Tape and Reel (3.000 pcs per reel)
STORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±2 ppm per year standard (±10 ppm max. after 10 years available on request)
DRIVE LEVEL
100 μW typ. / 200 μW max.
SHUNT CAPACITANCE C0
1.5 pF max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
LOAD CAPACITANCE (CL)
Series, 6 pF ~ 50 pF
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
NUMBER OF SOLDER PADS
4

	±10 ppm	±15 ppm	±20 ppm	±30 ppm	±50 ppm
0/50 °C	•	•	•	•	•
-10/60 °C	•	•	•	•	•
0/70 °C	•	•	•	•	•
-20/70 °C	•	•	•	•	•
-40/85 °C		•	•	•	•
-40/105 °C				•	•
-40/125 °C					•
