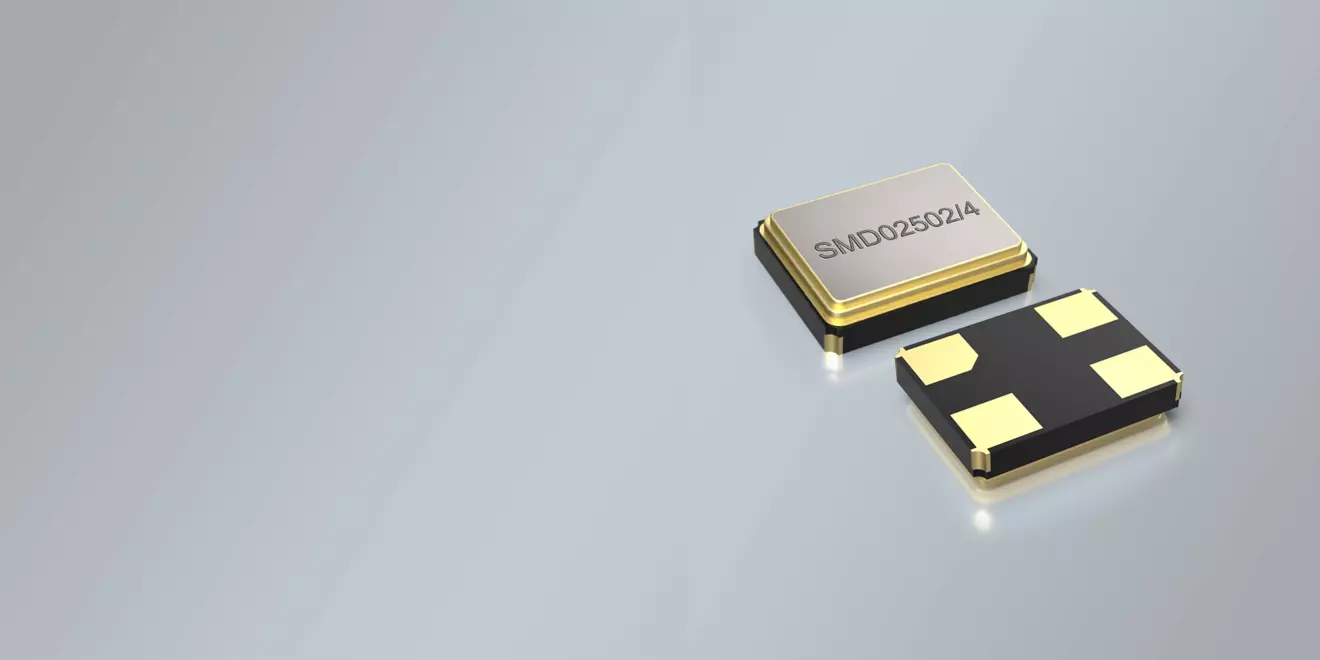

SMD QUARTZ CRYSTAL 2.5 x 2.0 mm 12.0 - 285.0 MHz
- Tight tolerance / tight stability available
- High reliability for low cost
- Resistance reduced quartz design for fast and safe oscillation start-up
- Frequncy tolerances of ±10ppm@+25°C, tight temperature stabilites and low aging deliverable
- Excellent clock signal generator for CPU´s
- General Data
- Temperature Stability
- Dimensions
- Applications
- Product Enquiry Configurator
- Sample Request Configurator
Product Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
2.5 x 2.0 x 0.6 mm
Frequency Range
12.00 - 285.00 MHz
Number of Solder Pads
4
DELIVERY FORM
Tape and Reel (3.000 pcs per reel)
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
DRIVE LEVEL
100 μW typ. / 200 μW max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
FREQUENCY TOLERANCES AT 25°C
±10 ppm ~ ±50 ppm
Frequency Range
12.00 - 285.00 MHz
Package
SMD Ceramic/4pad
STORAGE TEMPERATURE
-55°+125°C
AGING
±2 ppm per year standard
SHUNT CAPACITANCE C0
2 pF max.
LOAD CAPACITANCE (CL)
Series or 6 pF ~ 50 pF
STANDARD FREQUENCIES
12.0000 MHz / 12.2880 MHz / 13.5600 MHz / 16.0000 MHz
16.003333 / MHz 16.3840 MHz / 18.1320 MHz / 18.4320 MHz
19.2000 MHz / 20.0000 MHz / 20.7360 MHz / 22.1184 MHz
22.5792 MHz / 24.0000 MHz / 24.5760 MHz / 25.0000 MHz
26.0000 MHz / 27.0000 MHz / 27.1200 MHz / 28.63636 MHz
30.0000 MHz / 32.0000 MHz / 36.8640 MHz / 37.4000 MHz
38.4000 MHz / 40.0000 MHz / 46.1400 MHz / 48.0000 MHz
49.1520 MHz / 49.766667 MHz / 49.7800 MHz / 49,786667 MHz
49.8000 MHz / 49.813333 MHz / 50.000 MHz / 50.033333 MHz
50.0750 MHz / 50.1000 MHz / 50.1200 MHz / 50.2000 MHz
50.5000 MHz / 50.63000 MHz / 54.0000 MHz / 55.4600 MHzDimensions in mm (W x D x H)
2.5 x 2.0 x 0.6 mm
Produkt Name
SMD Quartz Crystal
| ±10 ppm | ±15 ppm | ±20 ppm | ±30 ppm | ±50 ppm | |
|---|---|---|---|---|---|
| 0/50 °C | • | • | • | • | • |
| -10/60 °C | • | • | • | • | • |
| 0/70 °C | • | • | • | • | • |
| -20/70 °C | • | • | • | • | • |
| -40/85 °C | • | • | • | • | |
| -40/105 °C | • | • | |||
| -40/125 °C | • |
- Consumer Electronics
- Networking
- Industrial
- RFID/NFC
- IoT
- Wearables
- HD & Storage
- Mobile Communication
- PC/PC Peripheral/IT
- WiMAX, WLAN, Wi-Fi
- Embedded
- Automotive
- Medical applications
- SMART-METER
- SENSORS
- IoTT
DATASHEET: SMD QUARTZ CRYSTAL SMD02502-4
