SMD QUARTZ CRYSTAL 6.0 x 3.5 mm 8.0 - 80.0 MHz

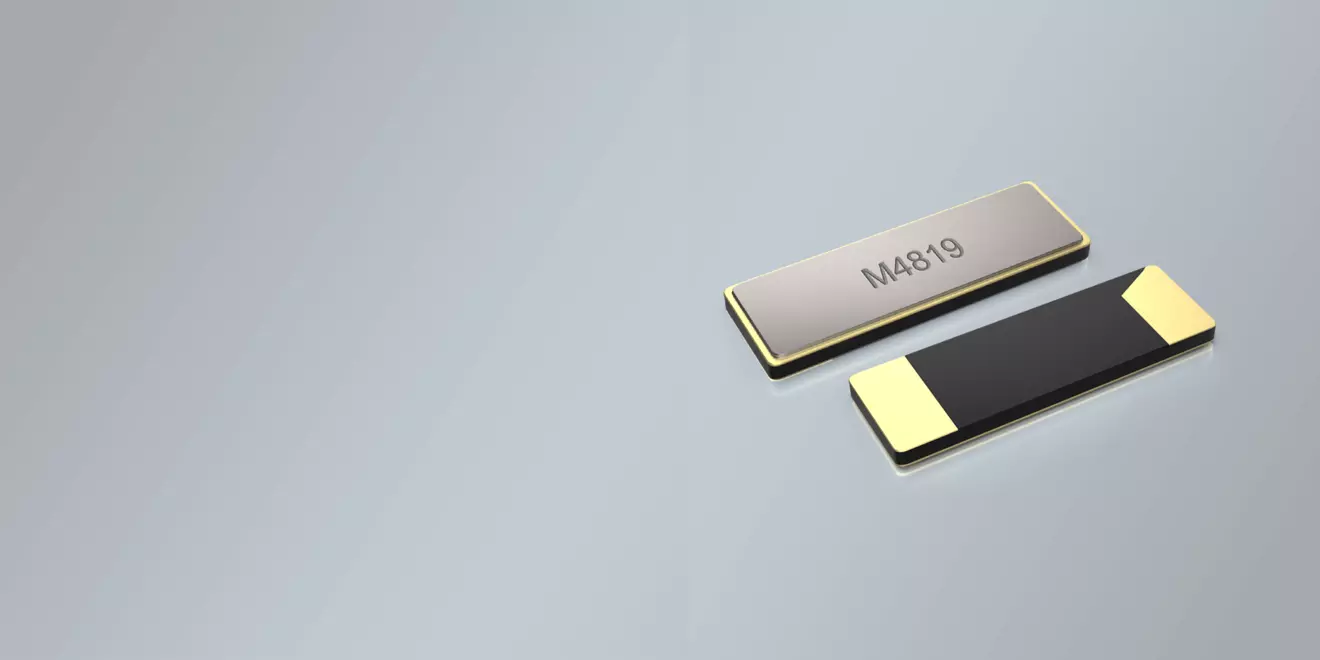

SMD WATCH CRYSTAL 4.8 x 1.9 mm 32.768 kHz

  • High reliability for low cost
  • Ultra low profile
  • Operating temperature range of -40/+85°C
  • Do not use for new designs because of EOL – please use M3215
  • Excellent clock signal generator for CPU´s
  • Product Name

    32.768 kHz Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    4.8 x 1.9 x 0.8 mm

  • Frequency Range

    32.768 kHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY TOLERANCES AT 25°C

    ±20 ppm (standard)
    ±10 ~ ±100 ppm (option)

  • LOAD CAPACITANCE (CL)

    12.5 pF (standard)
    6,7 and 9 pF available on request

  • WORKING TEMPERATURE RANGE

    -40/+85°C

  • RESONANCE RESISTANCE

    70 kΩ max.

  • SHUNT CAPACITANCE C0

    1.35 pF typ.

  • TURNOVER TEMPERATURE

    +25°C ±5°C

  • TEMPERATURE COEFFICIENT

    -0.034 ppm/°C²

  • DRIVE LEVEL

    0.5 µW typical (1.0 µW max.)

  • AGING

    ±3 ppm max. per year

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

M4819 Dimensions

DATASHEET: SMD 32.768 kHz QUARTZ CRYSTAL M4819

SMD 32.768 kHz QUARTZ CRYSTAL M4819
