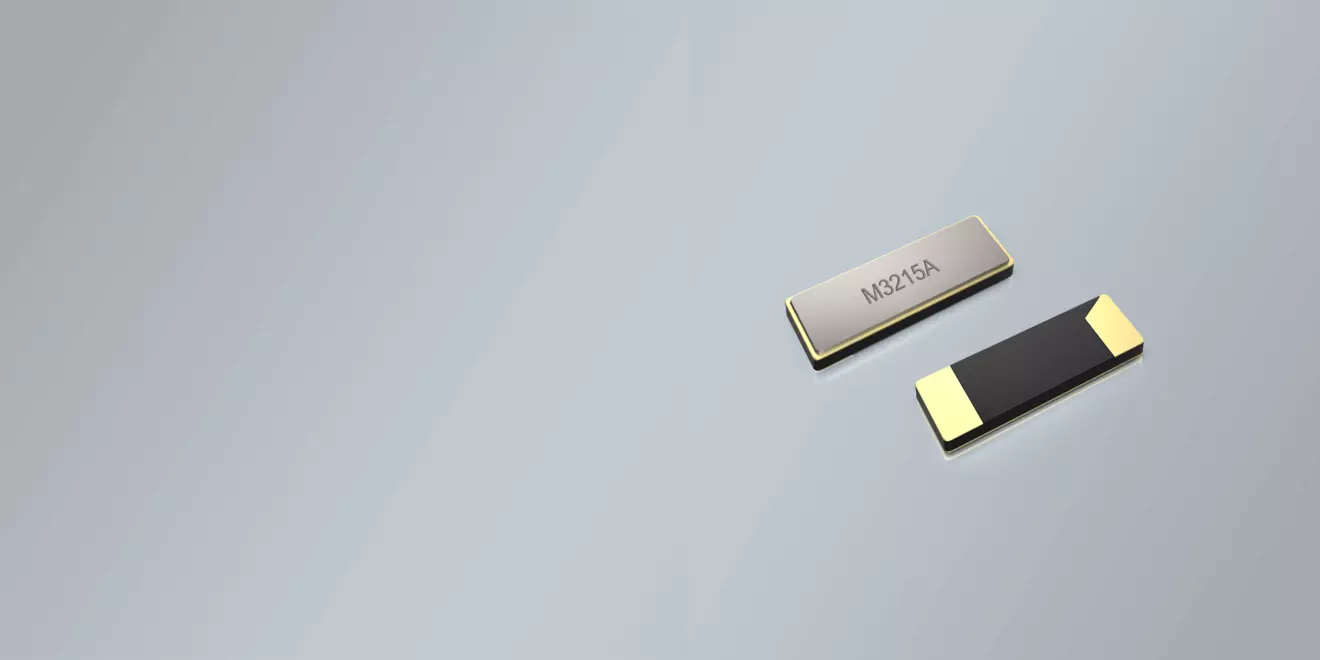

SMD WATCH CRYSTAL AUTOMOTIVE 3.2 X 1.5 MM 32.768 KHZ

SMD WATCH CRYSTAL AUTOMOTIVE 3.2 x 1.5 mm 32.768 kHz

  • AEC-Q200 complaint
  • Cheapest available MINI-Watch-Crystal in ceramic package
  • Ultra low profile
  • Operating temperature range of -40/+125°C
  • Excellent clock generator for automotive applications

  • Product Name

    32.768 kHz Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    3.2 x 1.5 x 0.75 mm

  • Frequency Range

    32.768 kHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY TOLERANCES AT 25°C

    ±20 ppm

  • LOAD CAPACITANCE (CL)

    12.5 pF

  • WORKING TEMPERATURE RANGE

    -40/+125°C

  • RESONANCE RESISTANCE

    120 kΩ max.

  • SHUNT CAPACITANCE C0

    1.3 pF typ.

  • TURNOVER TEMPERATURE +25°C ±5°C

    +25°C +-5°C

  • PARABOLIC COEFFICIENT

    -0.04 ppm/°C²

  • DRIVE LEVEL

    0.2 µW typical (1.0µW max.)

  • AGING

    ±3 ppm max. per year

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±15%

  • STORAGE TEMPERATURE

    -40°/+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 ~ 3.000 pcs per reel)

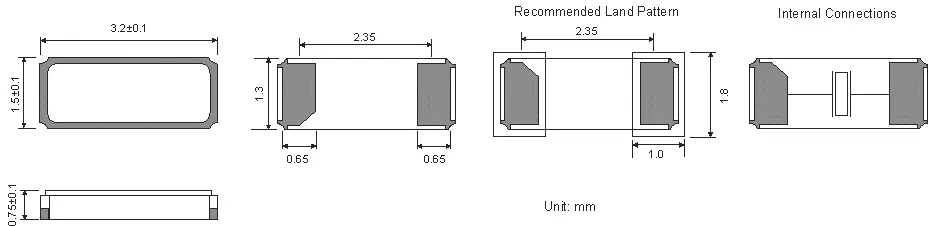

    SMD WATCH CRYSTAL A 3.2 x 1.5 mm 32.768 kHz

    DATASHEET: SMD 32.768 kHz QUARTZ CRYSTAL M3215A

    SMD 32.768 kHz QUARTZ CRYSTAL M3215A
