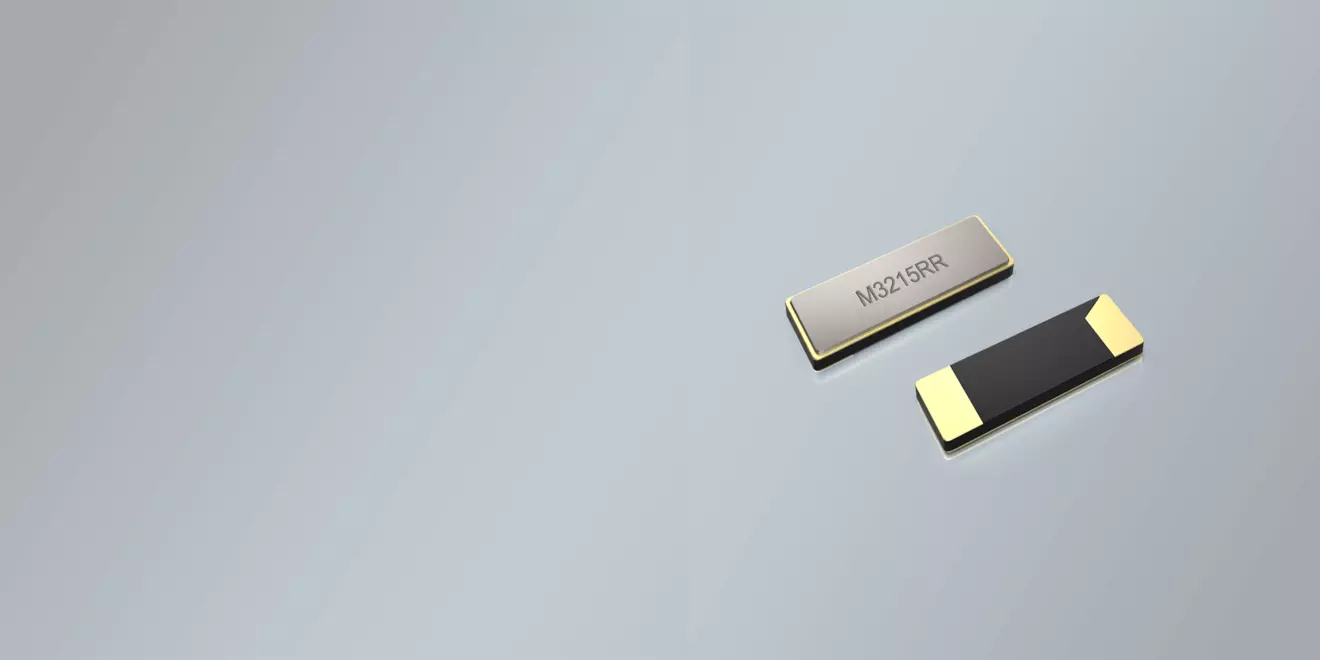

NAME:M3215RR (50 kΩ - low power design)

IMAGE:1

SMD WATCH CRYSTAL RR 3.2 X 1.5 MM 32.768 KHZ

SMD WATCH CRYSTAL RR 3.2 x 1.5 mm 32.768 kHz

  • Reduced resonance resistance 50 kΩ max. for low power designs
  • Cheapest available MINI-Watch-Crystal in ceramic package
  • Extended operating temperature range of up to -40/+125°C
  • Excellent clock generator for CPU's, Wireless, Mobile Comm., etc.
  • Typical applications: IoT, Metering, Industrial, Health Care, Wearables, Portables, Wireless
  • Product Name

    32.768 kHz Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    3.2 x 1.5 x 0.75 mm

  • Frequency Range

    32.768 kHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY TOLERANCES AT 25°C

    ±20 ppm (standard)
    ±10 ~ ±100 ppm (option)

  • LOAD CAPACITANCE (CL)

    12.5 pF (standard)
    6,7 and 9pF available on request

  • WORKING TEMPERATURE RANGE

    -40/+85°C or -40/+105°C or -40/+125°C

  • RESONANCE RESISTANCE

    50 kΩ max. for low power designs

  • SHUNT CAPACITANCE C0

    1.3 pF typ.

  • TURNOVER TEMPERATURE

    +25°C ±5°C

  • PARABOLIC COEFFICIENT

    -0.04 ppm/°C²

  • DRIVE LEVEL

    0.2 µW typical (1.0 µW max.)

  • AGING

    ±3 ppm max. per year

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°/+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 ~ 3.000 pcs per reel)

SMD WATCH CRYSTAL RR 3.2 x 1.5 mm 32.768kHz

DATASHEET: SMD 32.768 kHz QUARTZ CRYSTAL M3215RR

SMD 32.768 kHz QUARTZ CRYSTAL M3215RR
