NAME:SMD03025/4 Ultrasonic

IMAGE:1

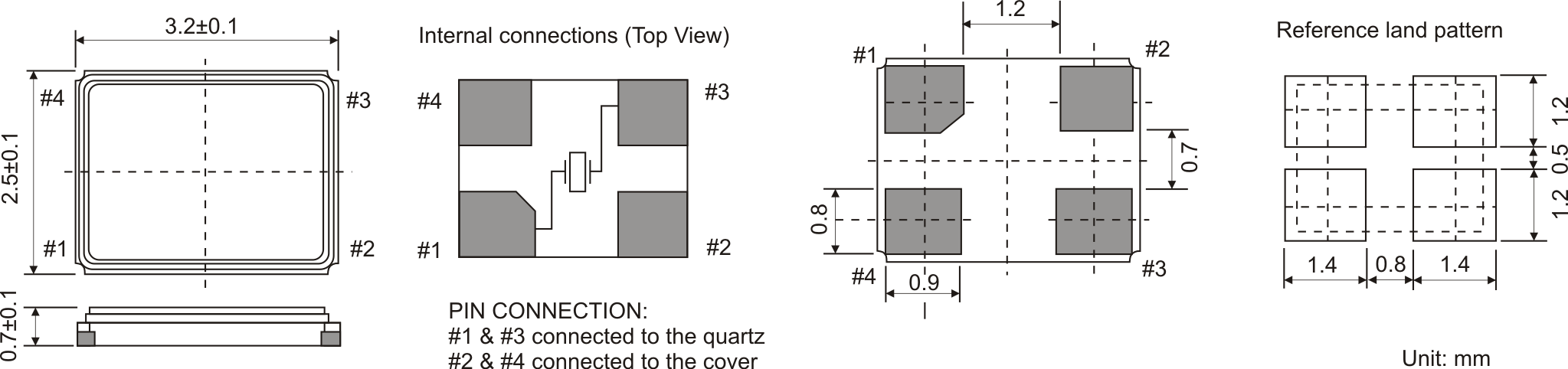

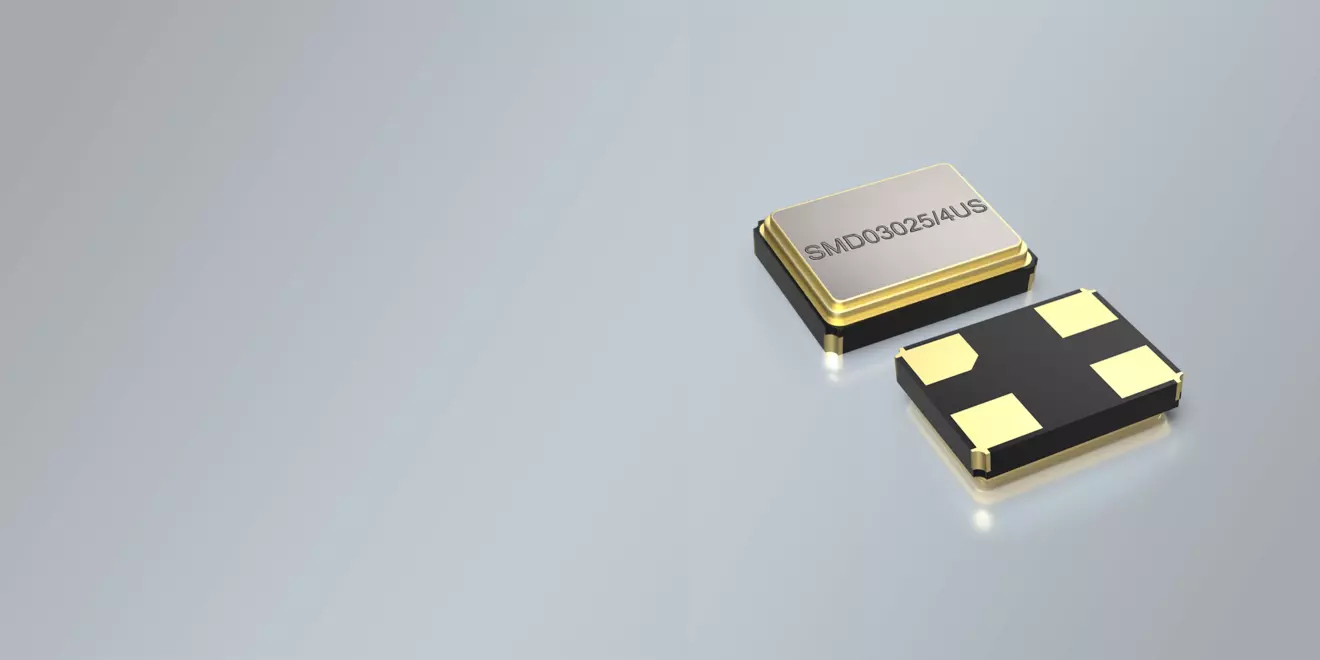

SMD QUARTZ 3.2 x 2.5 mm 12.0 - 40.0 MHz ULTRASONIC

SMD QUARTZ CRYSTAL 3.2 x 2.5 mm 12.0 - 40.0 MHz FOR ULTRASONIC

  • Recommended for ultrasonic plastic case welding process
  • High reliability for low cost
  • Resistance reduced quartz design for fast and safe oscillation start-up
  • Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
  • Ideally suited for the use in electronic products, communcation equipment,  automotive products, medical equipment, bluetooth, wireless, etc.
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    3.2 x 2.5 x 0.7 mm

  • Frequency Range

    12.00 - 40.00 MHz

  • NUMBER OF SOLDER PADS

    4

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    6 pF ~ 30 pF (12 pF standard), or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+85°C

  • SHUNT CAPACITANCE C0

    3 pF max.

  • DRIVE LEVEL

    10 μW ~ 100 μW typ. / 200 μW max. ( 500 μW available on request)

  • AGING

    ±3 ppm per year standard (±1 or 2 ppm available on request)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
-10/70 °C
-20/70 °C
-40/85 °C
SMD QUARTZ 3.2 x 2.5 mm 12.0 - 40.0MHz ULTRASONIC

DATASHEET: SMD QUARTZ CRYSTAL SMD03025-4US

SMD QUARTZ CRYSTAL SMD03025-4US
