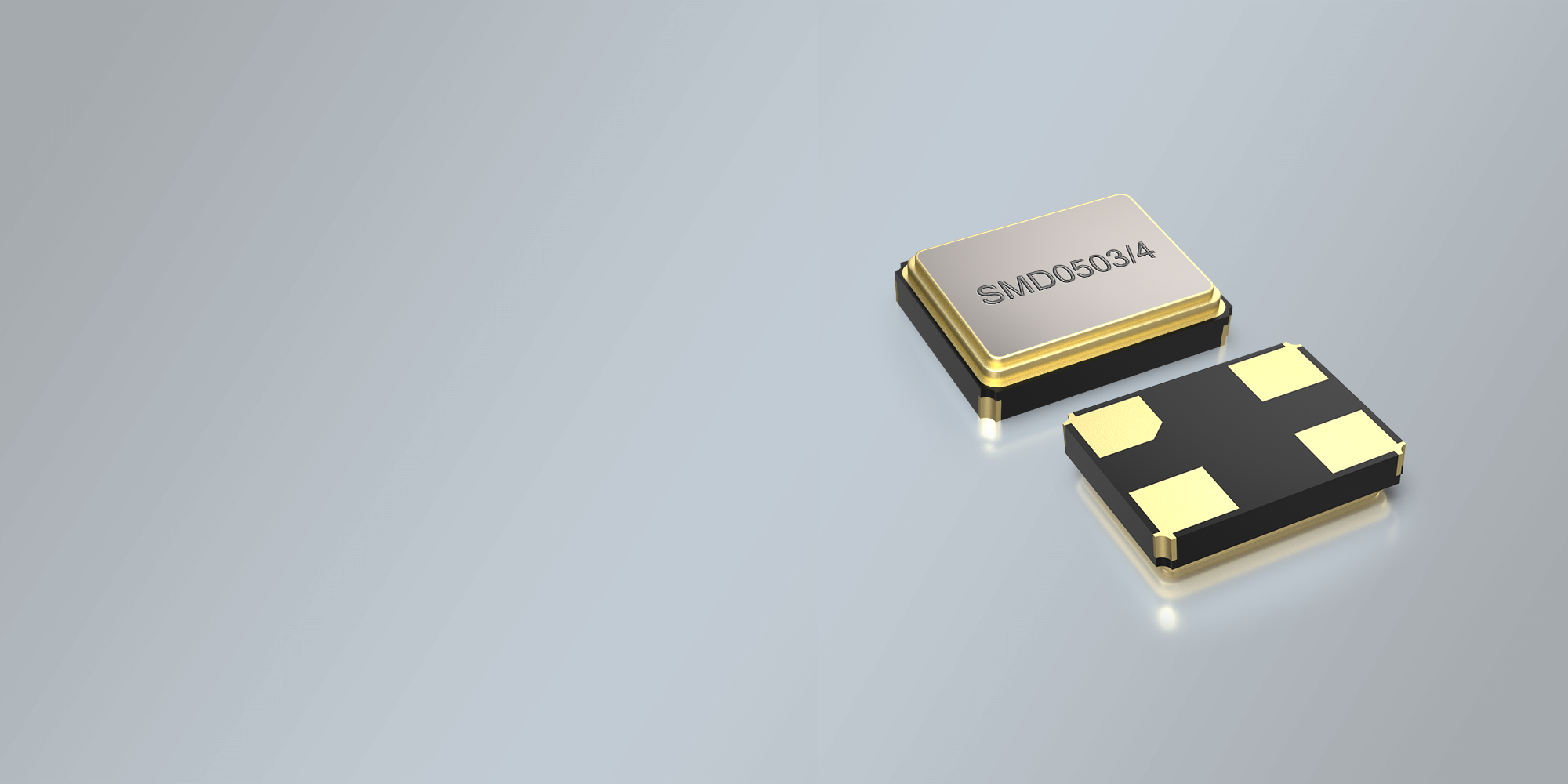

SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 8.0 - 133.0 MHz

Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
High reliability for low cost
Low resistance quartz design (LRT technology) for fast and safe oscillation start-up
Extended temperature range to -40/+125°C available
Qualified for automotive applications
Excellent clock signal generator for CPU´s

Product Name
SMD Quartz Crystal
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
5.0 x 3.2 x 0.8 mm
Frequency Range
8.00 - 133.00 MHz
STANDARD FREQUENCIES
8.192 MHz / 13.56 MHz / 14.318 MHz / 14.7456 MHz / 15.36 MHz / 16.0 MHz / 19.2 MHz / 19.66 MHz / 20.0 MHz / 22.5792 MHz / 24.0 MHz / 25.0 MHz / 26.0 MHz / 27.0 MHz / 27.12 MHz / 29.4912 MHz / 32.0 MHz / 36.0 MHz / 40.0 MHz / 48.0 MHz / 50.0 MHz
DELIVERY FORM
Tape and Reel (1.000 pcs per reel)
STORAGE TEMPERATURE
-55°+125°C
INSULATION RESISTANCE
>500 MΩ DC/100V ±10%
AGING
±2 ppm per year standard (±1 ppm available as option)
DRIVE LEVEL 3rd Overtone
100 μW typ. / 200 μW max. (300 μW available on request)
DRIVE LEVEL Fundamental
100 μW typ. / 200 μW max. (300 μW available on request)
SHUNT CAPACITANCE C0
3 pF max.
WORKING TEMPERATURE RANGES
0/+50°C ~ -40/+125°C
LOAD CAPACITANCE (CL)
6 pF ~ 50 pF or Series
FREQUENCY TOLERANCES AT 25°C
±8 ppm ~ ±50 ppm
FREQUENCY RANGES (SEPARATED)
8.0 ~ 54.0 MHz Fundamental
54.0 ~ 133.0 MHz 3rd Overtone
NUMBER OF SOLDER PADS
4

	±5 ppm	±10 ppm	±15 ppm	±20 ppm	±30 ppm	±50 ppm
0/50 °C	•	•	•	•	•	•
-10/60 °C	•	•	•	•	•	•
0/70 °C	•	•	•	•	•	•
-20/70 °C		•	•	•	•	•
-40/85 °C			•	•	•	•
-40/105 °C					•	•
-40/125 °C						•
