NAME:SMD0507/4 (Low ESR)

IMAGE:1

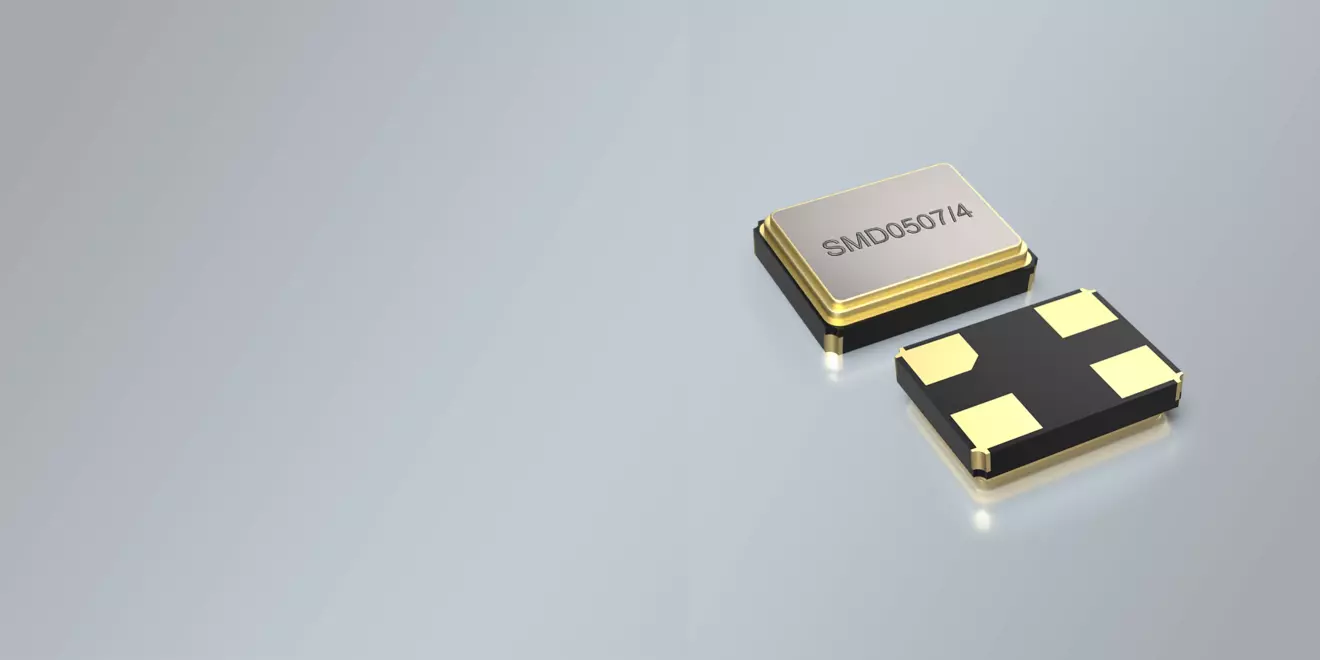

SMD QUARTZ CRYSTAL 7.0 x 5.0 mm 6.0 - 80.0 MHz

SMD QUARTZ CRYSTAL 7.0 x 5.0 mm 6.0 - 80.0 MHz

  • High reliability for low cost / Large frequency spectrum available
  • Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
  • Extended temperature range to -40/125°C available
  • Excellent clock signal generator for CPU´s
  • Qualified for automotive applications
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    7.0 x 5.0 x 1.3 mm

  • Frequency Range

    6.00 - 80.00 MHz

  • NUMBER OF SOLDER PADS

    4

  • FREQUENCY RANGES (SEPARATED)

    6.00 ~ 45.0 MHz AT-Fundamental
    40.0 ~ 80.0 MHz 3rd Overtone

  • STANDARD FREQUENCIES

    6.0 MHz / 8.0 MHz / 10.0 MHz / 12.0 MHz / 14.7456 MHz / 16.0 MHz/ 20.0 MHz / 22.1184 MHz / 25.0 MHz / 24.0 MHz / 24.576 MHz / 25.0 MHz / 26.0 MHz / 27.0 MHz / 28.322 MHz / 28.63636 MHz / 29.4912 MHz / 30.0 MHz / 32.0 MHz / 48.0 MHz / 49.152 MHz / 50.0 MHz

  • FREQUENCY TOLERANCES AT 25°C

    ±5 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    0.01 mW ~ 0.1 mW standard (optional 1.0 mW available)

  • AGING

    ±2 ppm per year standard (optional ±1 ppm available)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±3 ppm ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
SMD QUARTZ CRYSTAL 7.0 x 5.0 mm 6.0 - 80.0MHz

DATASHEET: SMD QUARTZ CRYSTAL SMD0507-4

SMD QUARTZ CRYSTAL SMD0507-4
