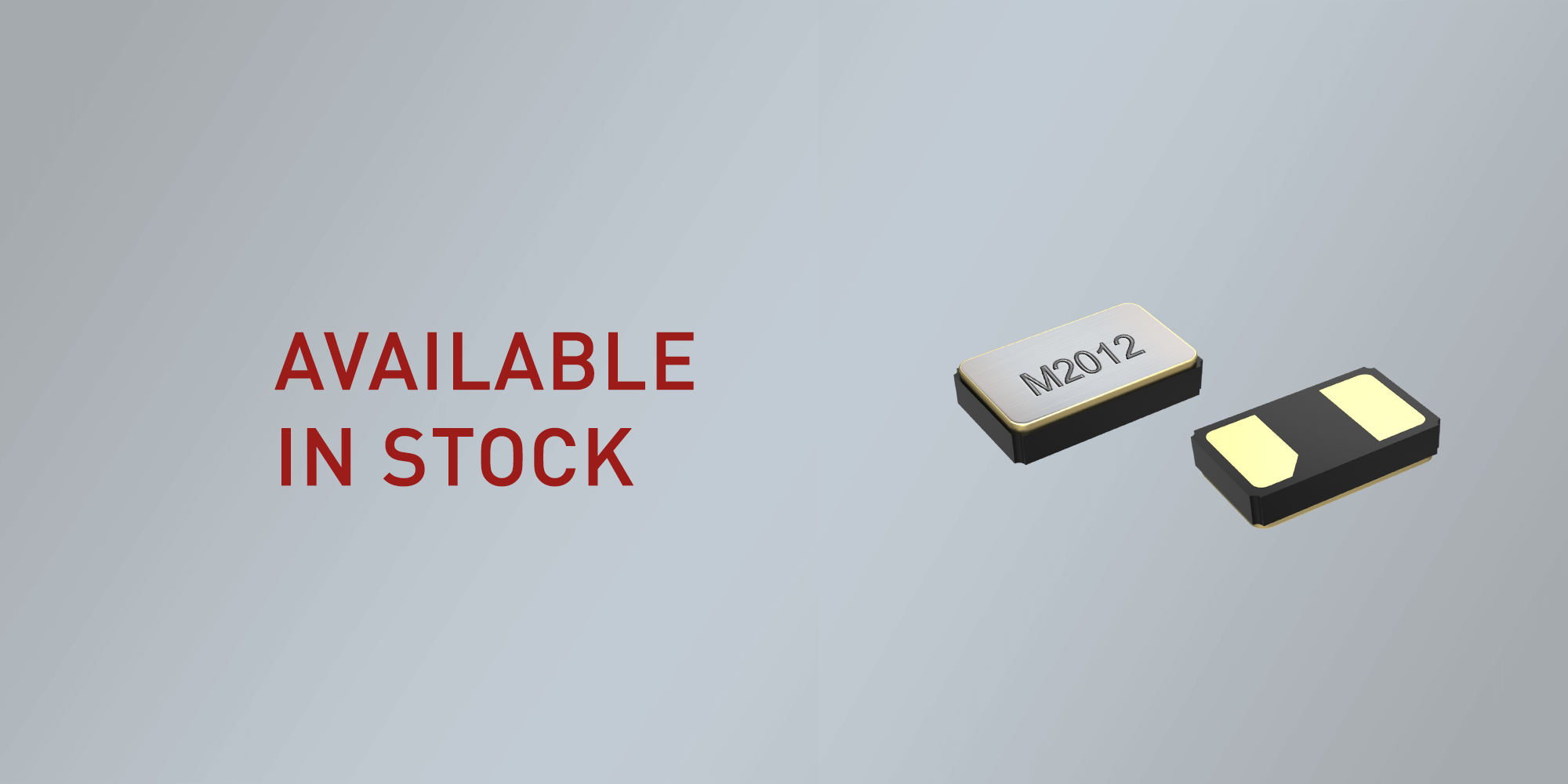

SMD WATCH CRYSTAL 2.0 x 1.2 mm 32.768 kHz

  • Ultra miniature low cost watch crystal
  • Ultra low profile
  • Standard operating temperature range of -40/+85°C
  • Excellent clock generator for CPU's, Wireless, Mobile Comm., etc.
  • Typical applications: IoT, Metering, Industrial, Health Care, Wearables, Portables, Wireless

  • Product Name

    32.768 kHz Quartz Crystal

  • Package

    SMD Ceramic/2pad

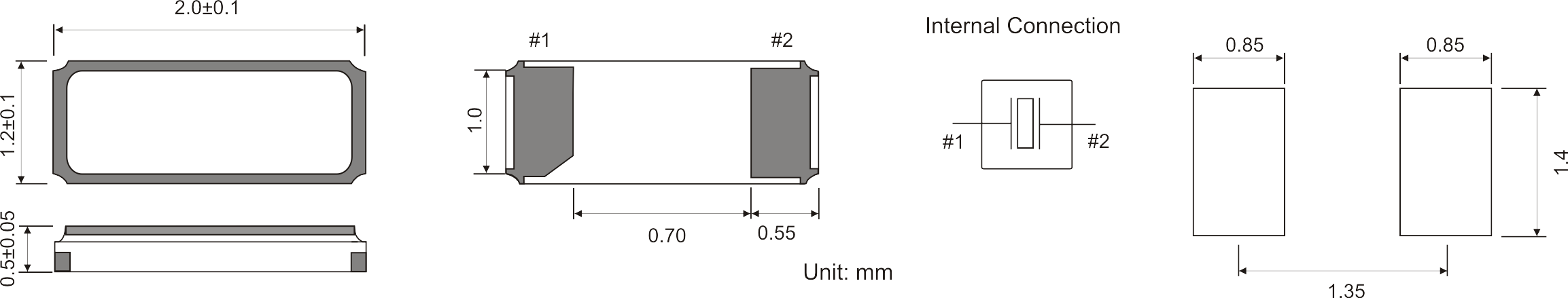

  • Dimensions in mm (W x D x H)

    2.0 x 1.2 x 0.55 mm

  • Frequency Range

    32.768 kHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY TOLERANCES AT 25°C

    ±20 ppm (standard)

  • LOAD CAPACITANCE (CL)

    12.5 pF (standard)
    4,6,7 or 9 pF available on request

  • WORKING TEMPERATURE RANGE

    -40/+85°C

  • RESONANCE RESISTANCE

    60 kΩ typ. / 80 kΩ max.

  • SHUNT CAPACITANCE C0

    1.3 pF typ.

  • TURNOVER TEMPERATURE

    +25°C ±5°C

  • PARABOLIC COEFFICIENT

    -0.04 ppm/°C² max.

  • DRIVE LEVEL

    0.1 µW typical (0.5 µW max.)

  • AGING

    ±3 ppm max. per year

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -40°/+85°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs per reel)

    SMD WATCH CRYSTAL 2.0 x 1.2 mm 32.768kHz

    DATASHEET: SMD 32.768 kHZ QUARTZ CRYSTAL M2012

    SMD 32.768 kHZ QUARTZ CRYSTAL M2012
