NAME:SMD0503/2 (Low ESR)

IMAGE:1

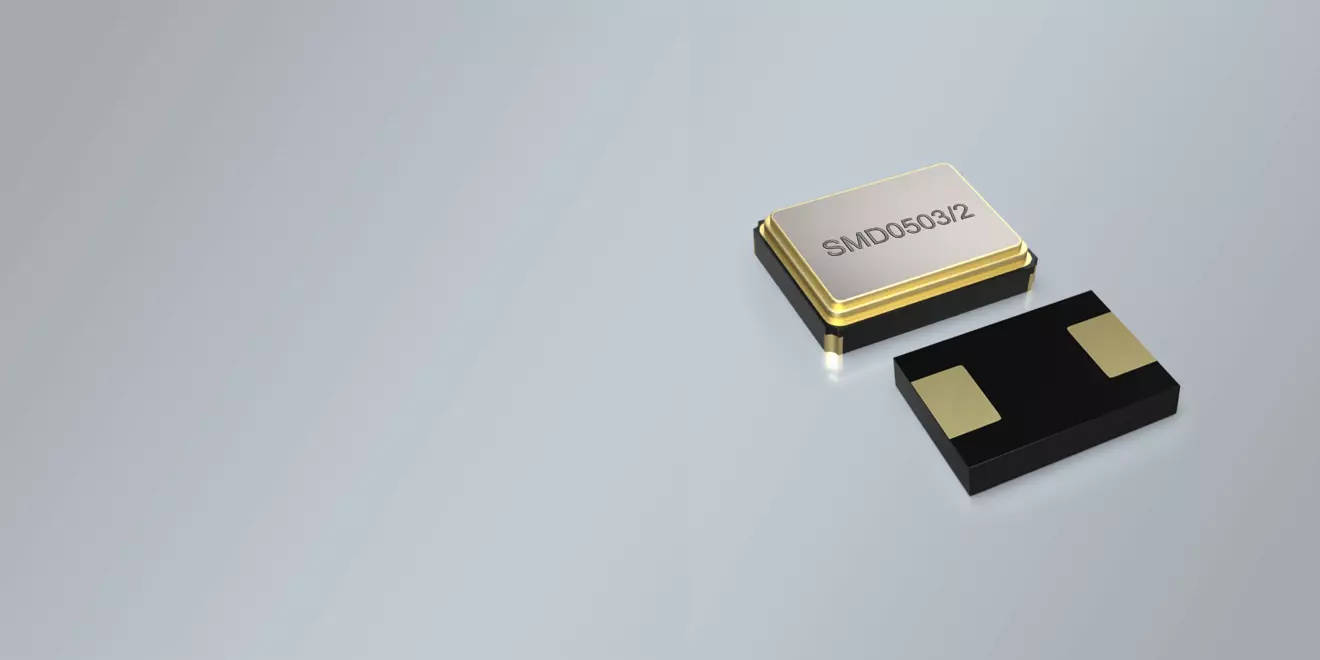

SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 8.0 - 112.0 MHz

SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 8.0 - 112.0 MHz

  • Tight tolerance / tight stability available
  • High reliability for low cost
  • Extended temperature range to -40/+125°C available
  • Qualified for automotive applications
  • Excellent clock signal generator for CPU´s
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    5.0 x 3.2 x 0.75 mm

  • Frequency Range

    8.00 - 112.00 MHz

  • NUMBER OF SOLDER PADS

    2

  • FREQUENCY RANGES (SEPARATED)

    8.0 ~ 54.0 MHz AT-Fundamental
    54.0 ~ 112.0 MHz 3rd Overtone

  • FREQUENCY TOLERANCES AT 25°C

    ±5 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    5 pF max.

  • DRIVE LEVEL

    200 µW max.

  • AGING

    ±2 ppm per year standard (±1 ppm available as option)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±5 ppm ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
SMD Quartz Crystal 5.0 x 3.2 mm

DATASHEET: SMD QUARTZ CRYSTAL SMD0503-2

SMD QUARTZ CRYSTAL SMD0503-2
