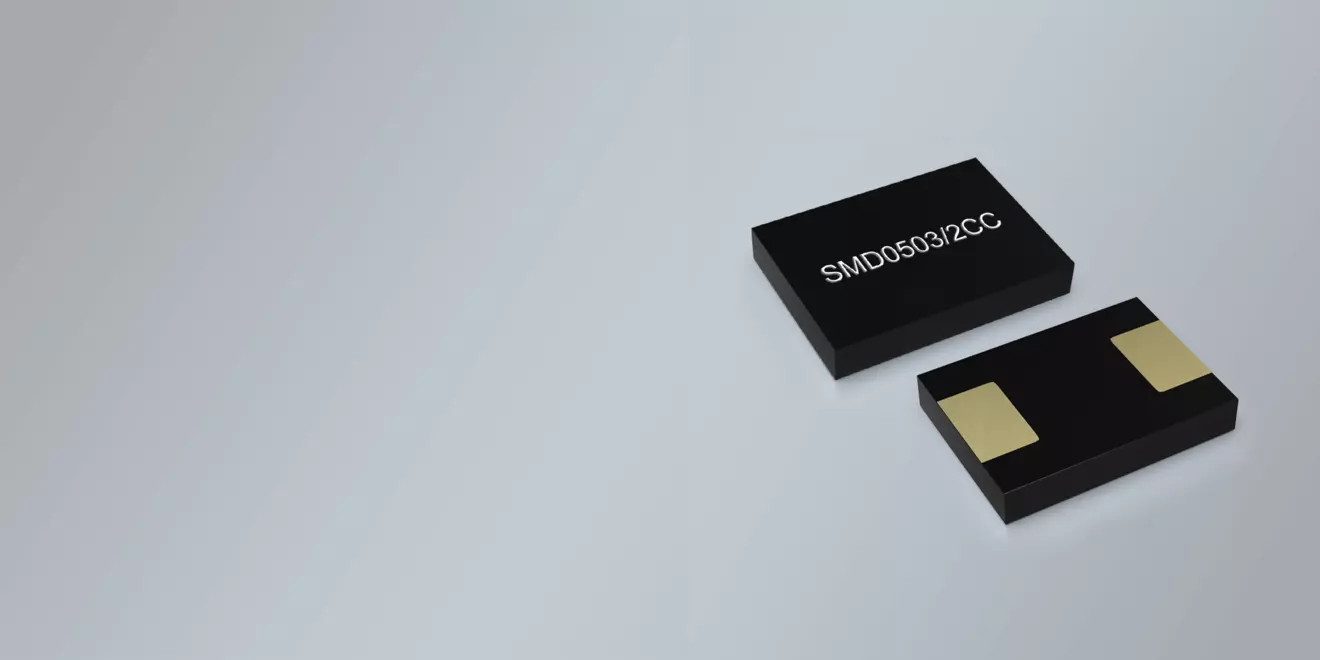

SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 10.0 - 54.0 MHz

  • High reliability for low cost
  • Cheapest available 5.0x3.2 mm crystal
  • Ceramic body with glass sealed ceramic cover
  • Excellent clock signal generator for CPU´s
  • Close the price gap between metal and ceramic packaged crystals
  • Please use Pb-free alternative product: SMD0503/2
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    5.0 x 3.2 x 1.2 mm

  • Frequency Range

    10.00 - 54.00 MHz

  • SMD-CRYSTAL SERIES

    SMD0503/2CC (5.0x3.2x1.2mm)

  • NUMBER OF SOLDER PADS

    2

  • RoHS

    RoHS compliant.
    This product contains lead (Pb)
    according exemption No. 7(c)-I.

  • FREQUENCY TOLERANCES AT 25°C

    ±15 ppm ~ ±50 ppm

  • RESONANCE RESISTANCE

    80 ~ 30 Ω max.

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+85°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    100 µW max. standard (other parameters deliverable on request)

  • AGING

    ±3 ~ ±5 ppm per year standard ((±2 ppm max. available on request)

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±10 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
-20/70 °C
-40/85 °C
SMD QUARTZ CRYSTAL 5.0 x 3.2 mm 10.0 - 54.0MHz

DATASHEET: SMD QUARTZ CRYSTAL SMD0503-2CC

SMD QUARTZ CRYSTAL SMD0503-2CC
