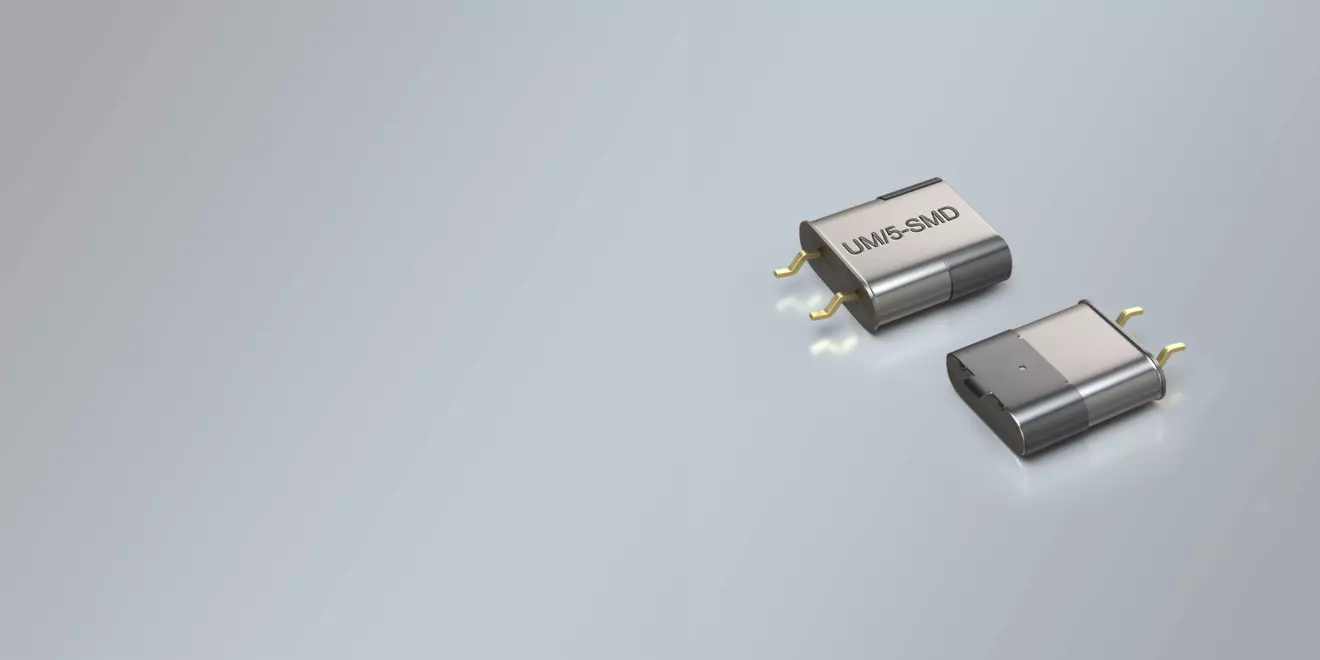

SMD QUARTZ CRYSTAL 10.0 x 4.5 mm 3.2768 - 10.0 MHz

SMD QUARTZ CRYSTAL UM5/CLIP 8.0 x 3.6 mm 10.00 - 200.0 MHz

  • High reliability for low cost
  • Tight frequency stabilities possible
  • Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
  • Extended temperature range to -40/+125°C available
  • Excellent clock signal generator for CPU’s
  • Cheapest available crystal with tight tolerances up to 200 MHz
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Metal

  • Dimensions in mm (W x D x H)

    6.0 x 3.6 x 10.5 mm

  • Frequency Range

    10.00 - 200.00 MHz

  • NUMBER OF LEADS

    2 (standard)
    3 (optional)

  • FREQUENCY RANGES (SEPARATED)

    6.0 ~ 45.0 MHz AT-Fundamental
    30.0 ~ 100.0 MHz 3rd Overtone
    80.0 ~ 155.0 MHz 5thOvertone
    120.0 ~ 200.0 MHz 7th Overtone

  • FREQUENCY TOLERANCES AT 25°C

    ±5 ppm ~ ±50 ppm

  • RESONACE RESISTANCE

    60 Ω Max. ~ 120 Ω Max.

  • LOAD CAPACITANCE (CL)

    6 pF ~ 50 pF or Series

  • WORKING TEMPERATURE RANGES

    0/+50°C ~ -40/+125°C

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    100 µW typical
    (0.01 mW ~ 1 mW possible on request)

  • AGING

    ±3 ~ ±5 ppm per year standard
    (±1 or ±2 ppm available as option)

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±3 ppm ±5 ppm ±10 ppm ±20 ppm ±30 ppm ±50 ppm
0/50 °C
-10/60 °C
0/70 °C
-20/70 °C
-40/85 °C
-40/125 °C
