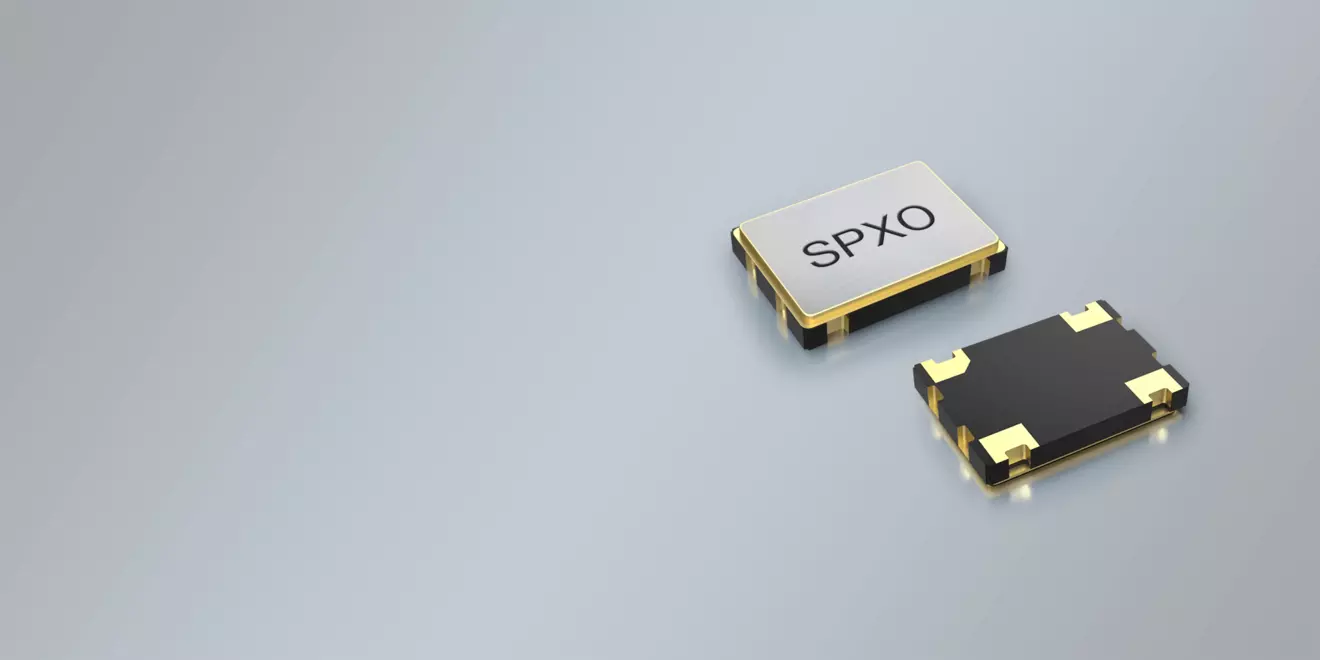

SMD SPXO OSCILLATOR 3.2 x 2.5 mm 32.768 kHz
- High reliability for low cost
- Wide frequency stability range from ±20 to ±100 ppm
- Wide supply voltage range of 1.8, 2.5, 2.8, 3.3 and 5.0 VDC
- High stability, low jitter, low power consumption
- Extended operable temperature range -40°C to +105°C
Product Name
SXO kHz
Package
SMD Ceramic/4pad
Dimensions in mm (W x D x H)
3.2 x 2.5 x 1.2 mm
Frequency Range
32.768 kHz
FREQUENCY RANGE VS SUPPLY VOLTAGE
1.8 VDC = 32.768 kHz
2.5 VDC = 32.768 kHz
2.8 VDC = 32.768 kHz
3.3 VDC = 32.768 kHz
5.0 VDC = 32.768 kHzFREQUENCY STABILITY
-10/+60°C ~ -10/+70°C = ±25 ~ ±100 ppm
-20/+70°C = ±30 ~ ±100 ppm
-40/+85°C = ±35 ~ ±100 ppmOPERATING TEMPERATURE RANGE
-10/+60°C ~ -40/+85°C
STORAGE TEMPERATURE RANGE
-55/+125°C
DELIVERY FORM
TAPE & REEL
RoHS
Lead free and RoHS 2 compliant
DATASHEET: SMD SPXO: 3.2x2.5 mm 32.768 kHz
