SMD VCXO OSCILLATOR 5.0 x 3.2 mm 1.0 - 40.0 MHz

SMD VCTCXO OSCILLATOR 1.6 x 1.2 mm 16.0 - 60.0 MHz

  • High reliability for low cost
  • New standard for low cost SMD-VCTCXOs
  • Wide frequency range 16.0 ~ 60.0 MHz
  • Wide tuning range
  • Wide supply voltage range of 1.8, 2.6, 2.8, 3.0 and 3.3 VDC
  • High stability, low jitter, low power consumption
  • Extended operating temperature range -40°C to +85°C
  • Product Name

    VCTCXO

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    1.6 x 1.2 x 0.5 mm

  • Frequency Range

    16.00 - 60.00 MHz

  • OPERATING TEMPERATURE RANGE

    0/+70°C ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • STANDARD FREQUENCY

    19.2 / 20 / 25/ 26 / 30 / 32/ 38.4 / 40 / 52 MHz

  • SUPPLY VOLTAGE (VDD)

    +1.8V / +2.6V / +2.8V / +3.0V / +3.3V

  • CURRENT CONSUMPTION

    +1.5mA max.(f≤26 MHz)
    +2.0mA max.(26<f≤52 MHz)
    +2.5mA max.(f≤60 MHz)

  • OUTPUT LEVEL

    0.8 Vp-p min. (f≤52 MHz) (Clipped Sinewave / DC-coupled)

  • OUTPUT LOAD

    10kΩ // 10pF

  • FREQUENCY STABILITY INITIAL TOLERANCE

    ±1.5 ppm max. (after 2 reflows)

  • FREQUENCY STABILITY VS. TEMPERATURE

    ±1.0 ppm, ± 2.5 ppm max. / -30~+85°C
    ±1.0 ppm, ± 2.5 ppm max. / -40~+85°C
    Other parameters are available on request

  • FREQUENCY STABILITY VS. SUPPLY VOLTAGE

    ± 0.2 ppm max. (VDD±5%)

  • FREQUENCY STABILITY VS. LOAD VARIATION

    ± 0.2 ppm max. (10kΩ //10pF±10%)

  • FREQUENCY STABILITY VS. AGING

    ±1.0 ppm max. / year (ref. +25°C)

  • Start–up Time

    2.0 ms max.

  • Phase Noise

    [f ≤ 26MHz] [26<f≤40MHz][40MHz<f≤52MHz]

  • Offset 100Hz

    -115dBc/Hz -110dBc/Hz -105dBc/Hz

  • Offset 1kHz

    -135dBc/Hz -135dBc/Hz -130dBc/Hz

  • Offset 10kHz

    -150dBc/Hz -150dBc/Hz -145dBc/Hz

  • Offset 100kHz

    -155dBc/Hz -155dBc/Hz -150dBc/Hz

  • DELIVERY FORM

    Tape and Reel / 2.000 pcs. per reel, other quantities are available on request

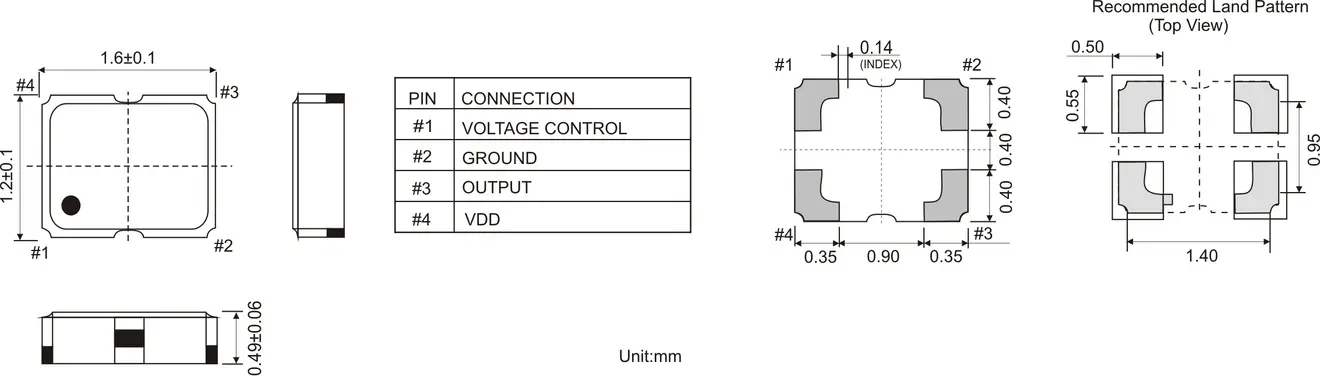

CERAMIC SMD VCTCXO OSCILLATOR 1.6 x 1.2 mm

DATASHEET: SMD VCTCXO 1.6 x 1.2 - 3.2 x 2.5 mm 9.6 - 60.0 MHz

SMD VCTCXO 1.6x1.2-3.2x2.5mm 1.8-3.3 VDC MHz
