DIFFERENTIAL SPREAD SPECTRUM 1-220 MHz OSCILLATORS

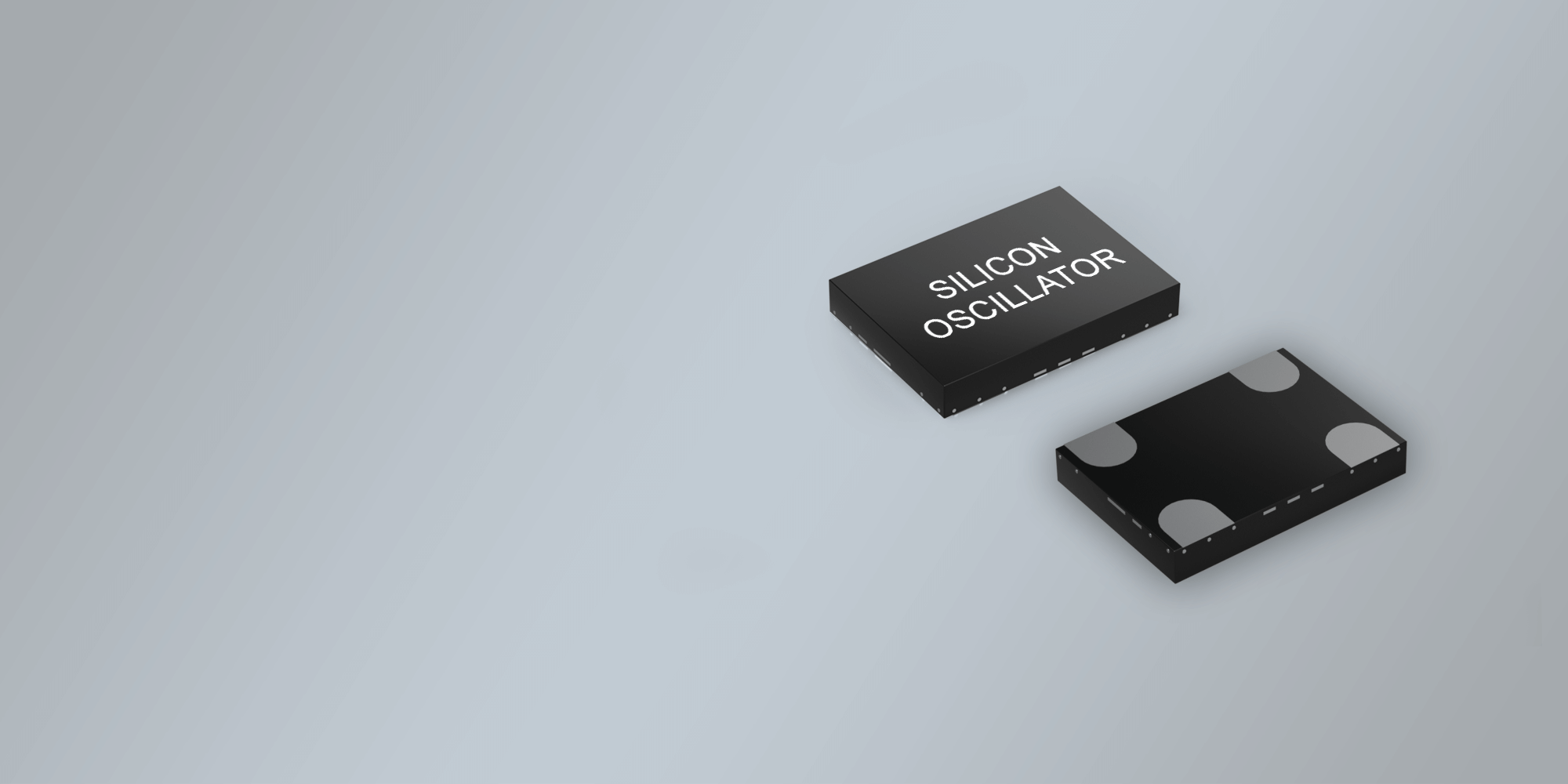

SMD DIFFERENTIAL SPREAD SPECTRUM 1-220 MHz SILICON OSCILLATORS

  • 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
  • Differential Low Power Spread Spectrum Oscillator for Low Cost
  • Excellent long time reliability
  • Wide Frequency range from 1 MHz to 220 MHz
  • Extremely low cycle-cycle jitter: as low as 10 ps (typical)
  • Low frequency stability (Spread = OFF) ±25 ppm or ±50 ppm
  • Express samples on the same day if ordered until 02:00 p.m.
  • Product Name

    LPSSO

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    3.2 x 2.5 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 220.00 MHz

  • SUPPLY VOLTAGE

    1.8 V to 3.3 V

  • FREQUENCY STABILITY

    ± 25ppm ~ ±100 ppm (Spread OFF)

  • OPERATING TEMPERATURE RANGE

    -20/+70 ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Industry's best cycle to cycle jitter, as low as 15ps

    • Enable system designers to minimize impact to timing budget

  • System-dependent EMI reduction, up to -17 dB on the third harmonic and -12 dB reduction on fundamental peak power (100MHz spread spectrum frequency)

    • Cost-effective EMI reduction with fastest time to market

  • Flexible spread spectrum options

    • Optimize EMI performance in system design

  • Programmable voltage support of 1.8V, 2.5V or 3.3V

    • Provide designers flexibility of using the same chip for different designs

  • Small form factor

    • Save the board space in space-constrained applications

  • Ultra fast lead time

    • Reduce inventory overhead
    • Mitigate shortage risks

DATASHEET: SMD Differential Spread Spectrum 1-220MHz Oscillator (DLPSSO)

Spread Spectrum DLPSSO 1-220MHz Oscillator
