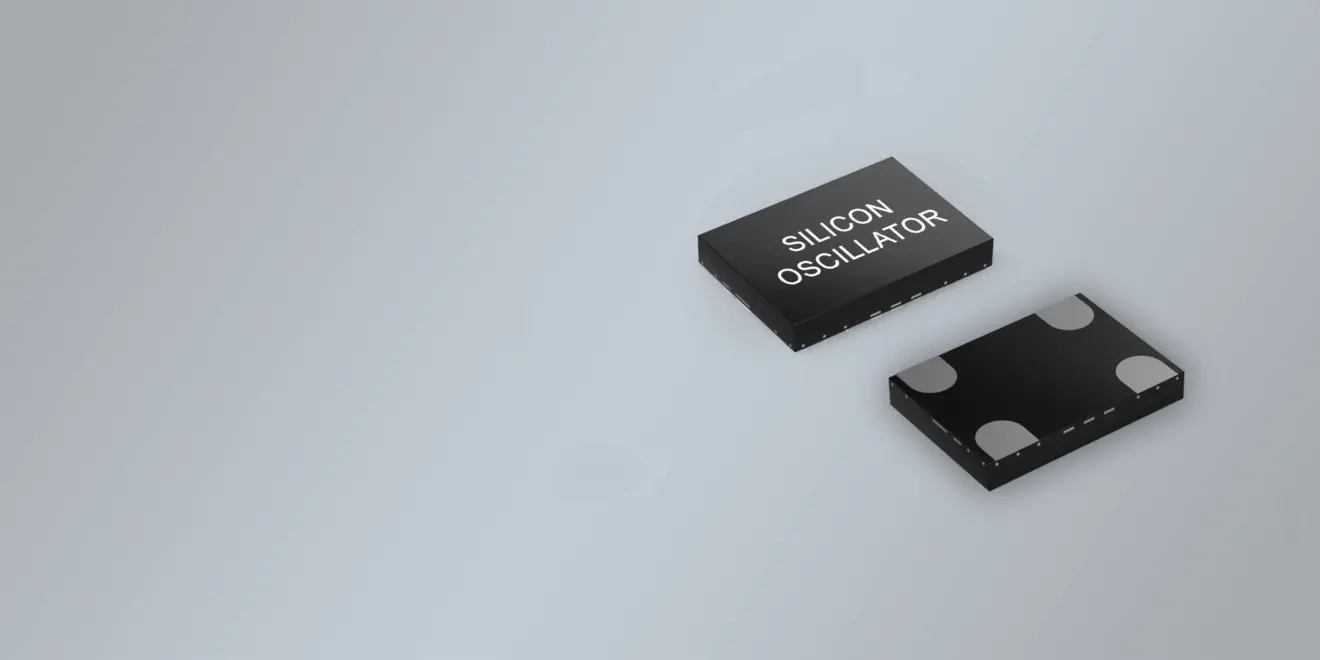

SMD DIFFERENTIAL SPREAD SPECTRUM 1-220 MHz SILICON OSCILLATORS
- 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
- Differential Low Power Spread Spectrum Oscillator for Low Cost
- Excellent long time reliability
- Wide Frequency range from 1 MHz to 220 MHz
- Extremely low cycle-cycle jitter: as low as 10 ps (typical)
- Low frequency stability (Spread = OFF) ±25 ppm or ±50 ppm
- Express samples on the same day if ordered until 02:00 p.m.
Product Name
LPSSO
Package
SMD QFN/4pad
Dimensions in mm (W x D x H)
3.2 x 2.5 ~ 7.0 x 5.0
Frequency Range
1.00 - 220.00 MHz
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesSTORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
-20/+70 ~ -40/+85°C
FREQUENCY STABILITY
± 25ppm ~ ±100 ppm (Spread OFF)
SUPPLY VOLTAGE
1.8 V to 3.3 V
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
Small form factor
• Save the board space in space-constrained applications
Programmable voltage support of 1.8V - 3.3V
• Provide designers flexibility of using the same chip for different designs
Flexible spread spectrum options
• Optimize EMI performance in system design
System-dependent EMI reduction, up to -17 dB on the third harmonic and -12 dB reduction on fundamental peak power (100MHz spread spectrum frequency)
• Cost-effective EMI reduction with fastest time to market
Industry's best cycle to cycle jitter, as low as 15ps
• Enable system designers to minimize impact to timing budget
DATASHEET: SMD Differential Spread Spectrum 1-220MHz Oscillator (DLPSSO)
