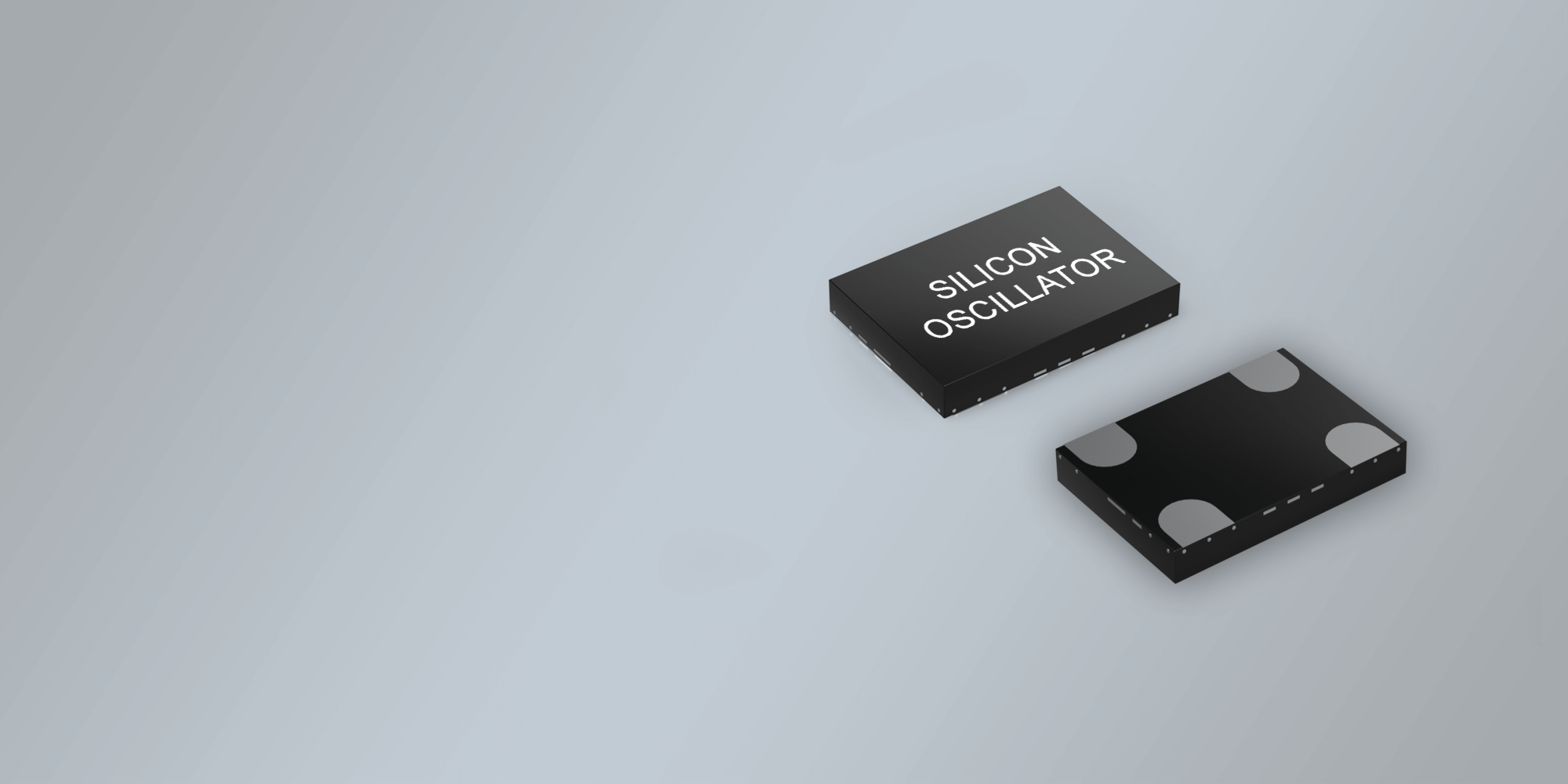

SMD AUTOMOTIVE HIGH-TEMPERATURE 1-137 MHz SILICON OSCILLATORS

  • 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
  • High Temperature Low Power Automotive Oscillator for Low Cost
  • Excellent long time reliability
  • Excellent frequency stability as low as ±20 ppm
  • Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
  • Operating temperature from -40°C to 125°C
  • Express samples on the same day if ordered until 02:00 p.m.
  • Product Name

    AUTOMOTIVE AEC-Q100

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    2.0 x 1.6 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 110.00 MHz

  • SUPPLY VOLTAGE

    1.62 V to 3.63 V

  • FREQUENCY STABILITY

    ±20 ppm to ±50 ppm

  • OPERATING TEMPERATURE RANGE

    -40/+105 ~ -40/+125°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Unique combination of product features

    • Better timing margin ideal for space constrained, outdoor and high temp operating environment

  • 0.1 ppb/g low vibration sensitivity

    • Improved system performance under vibration
    • Simpler crrrier drop-test compliance (STB, etc.)

  • 5 industry standard package

    • 100% drop in repalcement of quartz XO

  • Ultra fast lead time

    • Reduce inventory overhead
    • Mitigate shortage risks

DATASHEET: SMD AUTOMOTIVE INDUSTRIAL TEMPERATURE 1-110MHZ (-40/+105°C ~ -40/+125°C) SILICON OSCILLATOR (HTLPO-AUT)

Automotive High Temperature 1-110MHz Oscillator

DATASHEET: SMD AUTOMOTIVE INDUSTRIAL TEMPERATURE 115.2-137MHz (-40/+105°C ~ -40/+125°C) SILICON OSCILLATOR (HTLPO-AUT)

Automotive High Temperature 115.2-137MHz Oscillator
