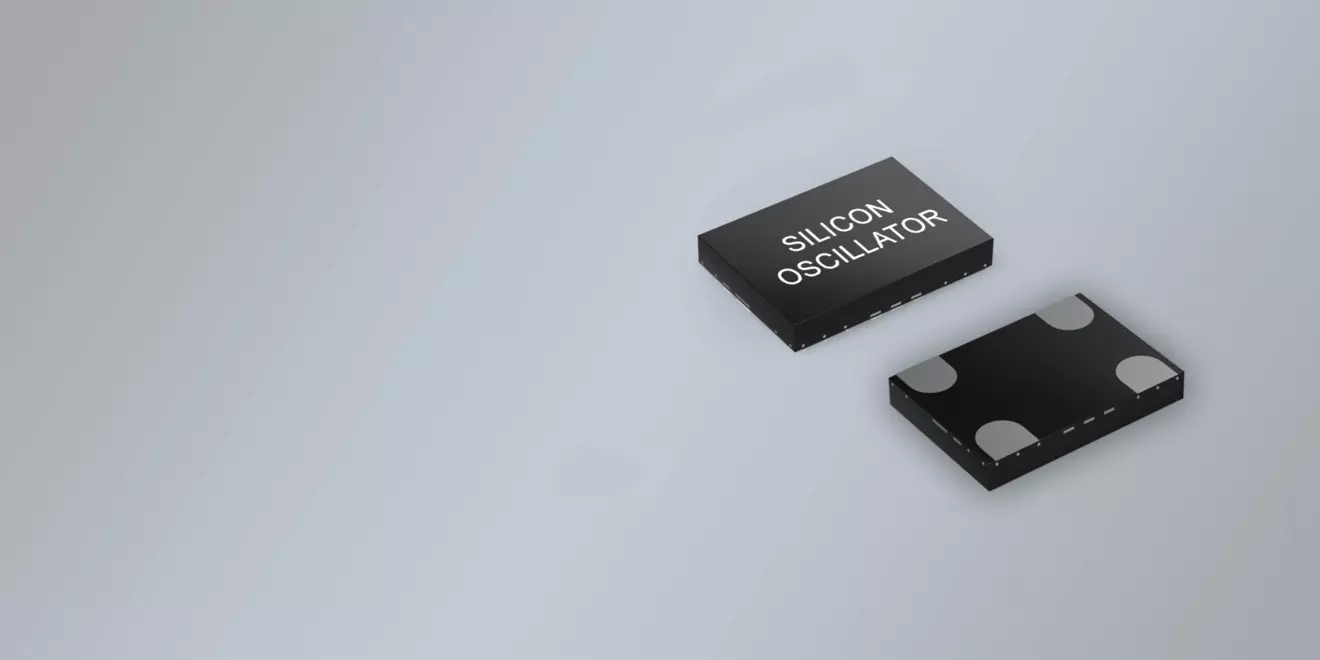

SMD HIGH TEMPERATURE 1-137 MHz SILICON OSCILLATORS
- 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
- High Temperature Low Power Oscillator for Low Cost
- Excellent long time reliability
- Excellent frequency stability as low as ±20 ppm
- Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
- Operating temperature from -40°C to 125°C
- Samples are available within a short delivery period
Product Name
High Temperature 1 - 137 MHz
Package
SMD QFN/4pad
Dimensions in mm (W x D x H)
2.0 x 1.6 ~ 7.0 x 5.0
Frequency Range
1.00 - 110.00 MHz
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesSTORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
-40/+105 ~ -40/+125°C
FREQUENCY STABILITY
±20 ppm to ±50 ppm
SUPPLY VOLTAGE
1.8 V to 3.63 V
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
5 industry standard package
• 100% drop in repalcement of quartz XO
Programmable drive strength
• Slower rise/fall time that minimizes EMI from the oscillator
Lower cost by driving multiple loads and eliminate additional timing components
70 g shock and 50 kg vibration
• Best system relability in harsh environment
0.1 ppb/g low vibration sensitivity
• Improved system performance under vibration
• Simpler carrier drop-test compliance (STB, etc.)
Unique combination of product features
• Better timing margin ideal for space constrained, outdoor and high temp operating environment
DATASHEET: SMD High Temperature 1-110MHz Silicon Oscillator (HTLPO)
DATASHEET: SMD High Temperature 115-137MHz Silicon Oscillator (HTLPO)
