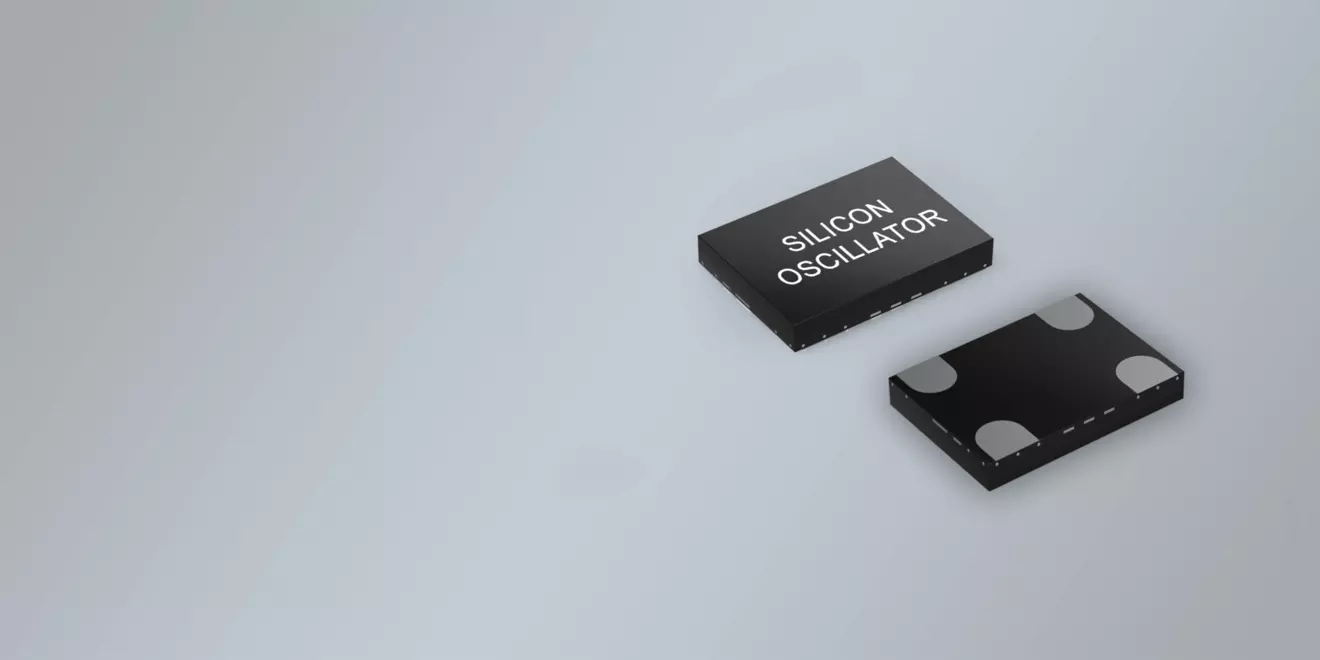

SMD LOW POWER 1 - 137 MHz SILICON OSCILLATORS
- Low Power Oscillator for Low Cost
- Excellent long time reliability
- Excellent frequency stability as low as ±20 ppm over –40/+85°C
- Frequency range of 1 MHz and 137 MHz accurate to 6 decimal places
- Outstanding long term aging
- Express samples on the same day if ordered until 02:00 p.m.
Product Name
LPO
Package
SMD QFN/4pad
Dimensions in mm (W x D x H)
2.0 x 1.6 ~ 7.0 x 5.0
Frequency Range
1.00 - 110.00 MHz
FREQUENCY RANGE 2
115.00 - 137.00 MHz
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesSTORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
0/+70°C ~ -40/+85°C
FREQUENCY STABILITY
±20 ppm to ±50 ppm
SUPPLY VOLTAGE
1.8 V to 3.63 V
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
Configurable drive strength
• Slower rise/fall time that minimizes EMI from the oscillator
• Saves cost by driving multiple loads and eliminate additional timing components
Low power consumption
• Extends battery life in portable applications
• Reduces power consumption for greener systems
Configurable feature sets
• Customize specification for optimal system performance
• Use same base device for many design, reducing qualification needs
• Save more board space without compromising performance
DATASHEET: SMD LPO Low Power 1-110MHz Silicon Oscillator (LPO)
DATASHEET: SMD Low Power 115-137MHz Silicon Oscillator (LPO)
