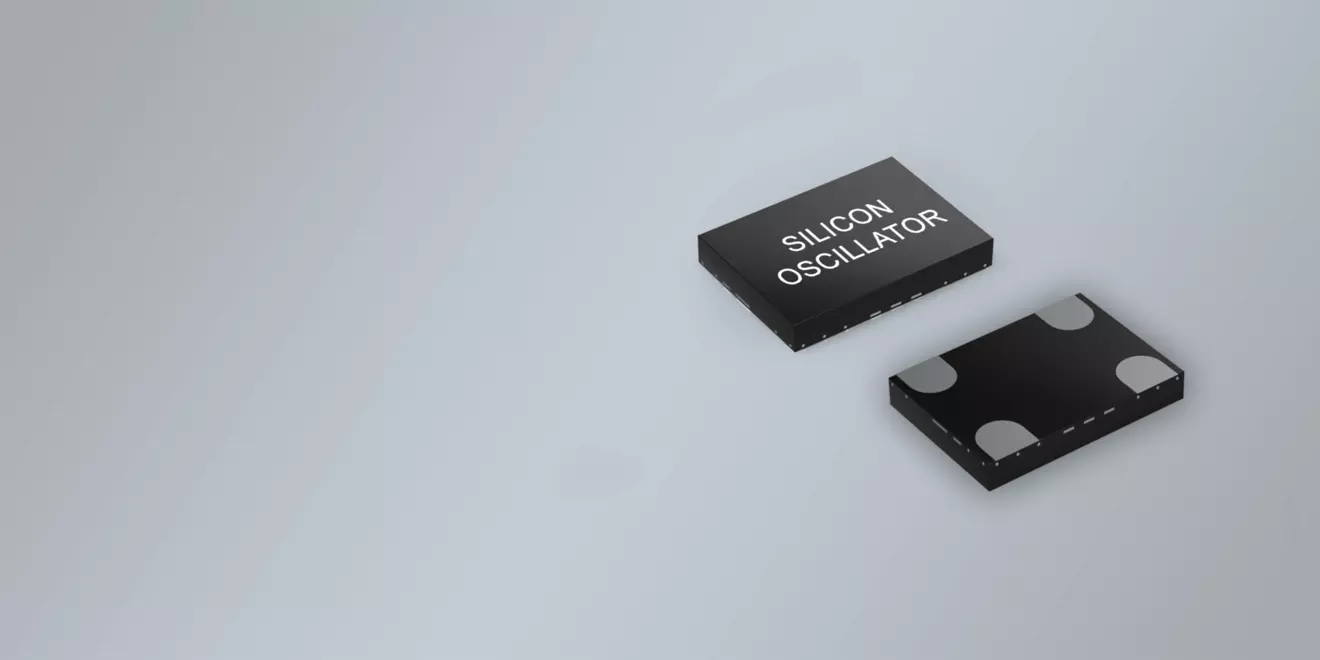

SMD LOW POWER SPREAD SPECTRUM 1-110 MHz SILICON OSCILLATOR
- 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
- Low Power Spread Spectrum Oscillator for Low Cost
- Excellent long time reliability
- Spread-off function on Pin1 up to 50 MHz
- <30 ps cycle-to-cycle jitter
- LVCMOS/LVTTL compatible output
- Express samples on the same day if ordered until 02:00 p.m.
Product Name
LPSSO
Package
SMD QFN/4pad
Dimensions in mm (W x D x H)
2.5 x 2.0 ~ 7.0 x 5.0
Frequency Range
1.00 - 110.00 MHz
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
DELIVERY FORM
Bulks or Tubes for sampling
Tape & Reel for serial quantitiesSTORAGE TEMPERATURE RANGE
-55/+125°C
OPERATING TEMPERATURE RANGE
-20/+70 ~ -40/+85°C
FREQUENCY STABILITY
± 50ppm to ±100 ppm (Spread OFF)
SUPPLY VOLTAGE
1.8 V to 3.3 V
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
Extensive programmability
• Any frequency between 1 to 110 MHz with 5 decimal place accuracy
• Frequency stability from ±50PPM to ±100PPM
• Adjustable rise and fall time
3ms typical resume time
• Enable system to go in and out of standby mode quickly, conserving battery power
Lowest power consumption of any programmable oscillator
• Extends battery life
• Reserves more power budget for system designers
World best cycle to cycle jitter of < 30 ps
• Minimize impact to system timing budget
Flexible spread options supporting up to 12 dB EMI reduction
• Up to 12dB EMI reduction
DATASHEET: SMD Spread Spectrum 1-110MHz Oscillator (LPSSO)
