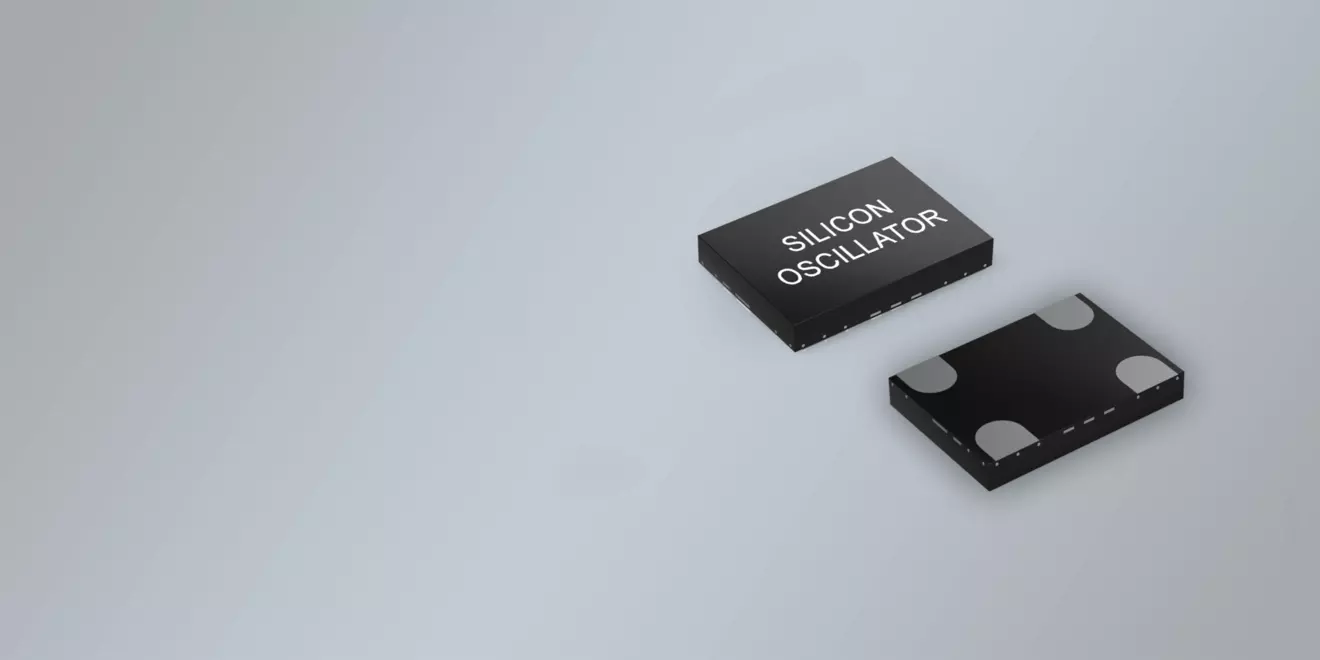

SMD ULTRA-LOW POWER 1 - 26 MHz OSCILLATOR
- Ultra-Low Power Oscillator for Low Cost
- Excellent long time reliability combined with highest shock and vibration resistance
- Ultra-low power consumption of 60µA@3.072MHz, 110µA@6.144MHz, 160µA@12MHz
- Smallest oscillator package: 1.5 x 0.8mm
- Outstanding long term aging
- Customized product versions available on request
-
Product Name
ULPO
-
Package
SMD QFN/4pad
-
Dimensions in mm (W x D x H)
1.5 x 0.8
-
Frequency Range
1.00 - 26.00 MHz
-
SUPPLY VOLTAGE
1.62 V to 1.98 V
-
FREQUENCY STABILITY
±100 ppm @25°C
-
OPERATING TEMPERATURE RANGE
-20/+70°C ~ -40/+85°C
-
STORAGE TEMPERATURE RANGE
-55/+125°C
-
DELIVERY FORM
TAPE & REEL / 3000 pcs. per Reel
-
ENVIRONMENTAL REQUIREMENTS
Pb-free, RoHS and REACH compliant
-
Ultra-Low Power: 100 µA:
• Extended Battery Life
-
Tiny footprint: 1.5 x 0.8 mm
• Smaller PCB
-
Flexible frequencies: 1 MHz to 26 MHz
• Optimal Choice for Best System Performance
-
Drives Multiple Loads
• BOM Savings
• Space Savings
-
Ultra fast lead time
• Reduce inventory overhead
• Mitigate shortage risks
DATASHEET: SMD Ultra Low Power 1-26MHz Silicon Oscillator (ULPO)
