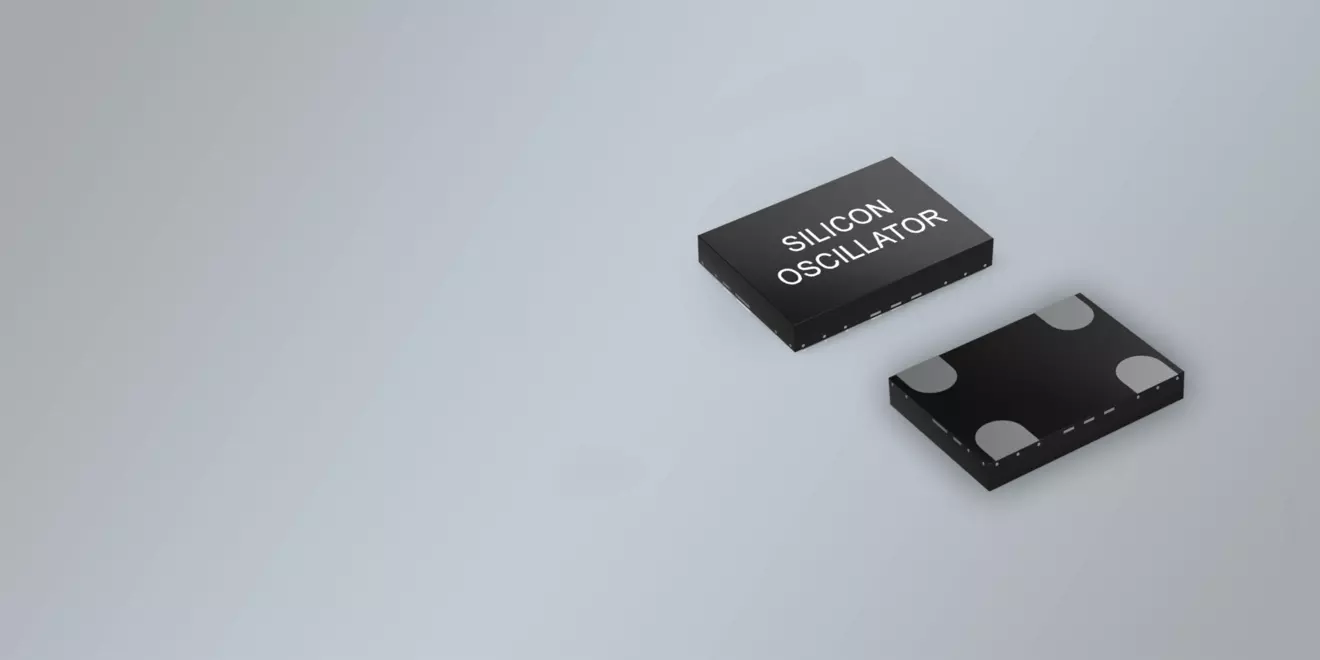

SMD ULTRA PERFORMANCE 1-220MHz SILICON OSCILLATORS

  • Ultra Performance Oscillator for Low Cost
  • Low power consumption / Ultra low phase jitter
  • Excellent long time reliability
  • Excellent frequency stability as low as ±10 ppm over –40/+85°C
  • Frequency range of 1 MHz and 220 MHz accurate to 6 decimal places
  • Outstanding long term aging
  • Express samples on the same day if ordered until 02:00 p.m.
  • Product Name

    UPO

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    2.5 x 2.0 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 80.00 MHz

  • SUPPLY VOLTAGE

    1.8 V ~ 3.63 V

  • FREQUENCY STABILITY

    ±10 ppm to ±50 ppm

  • OPERATING TEMPERATURE RANGE

    0/+70°C ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • <1ps integrated RMS phase jitter (12 kHz to 20 MHz)

    • Excellent jitter margin for the most stringent applications such as SONET

  • Excellent frequency stability, as low as ±10 ppm

    • Better timing margin that enhances system stability and robustness

  • Configurable feature sets

    • Customized specification for optimal system performance
    • Easy availability of any device specifications within the operating range

  • Small 2520, 3225, 5032 & 7050 packages for all frequencies, voltages and stability

    • Save more board space without compromising performance and availability
    • 100% drop in replacement for quartz oscillator, SAW and overtone oscillators without any design changes

  • Configurable drive strength

    • Slower rise/fall time that minimizes EMI from the oscillator
    • Saves cost by driving multiple loads and eliminate additional timing components

  • Ultra fast lead time

    • Reduce inventory overhead
    • Mitigate shortage risks

DATASHEET: SMD Ultra Performance 1-80MHz Silicon Oscillator (UPO)

Ultra Performance 1 - 80MHz Silicon Oscillator

DATASHEET: SMD Ultra Performance 80-220MHz Silicon Oscillator (HFUPO)

Ultra Performance 80 - 220MHz Silicon Oscillator
