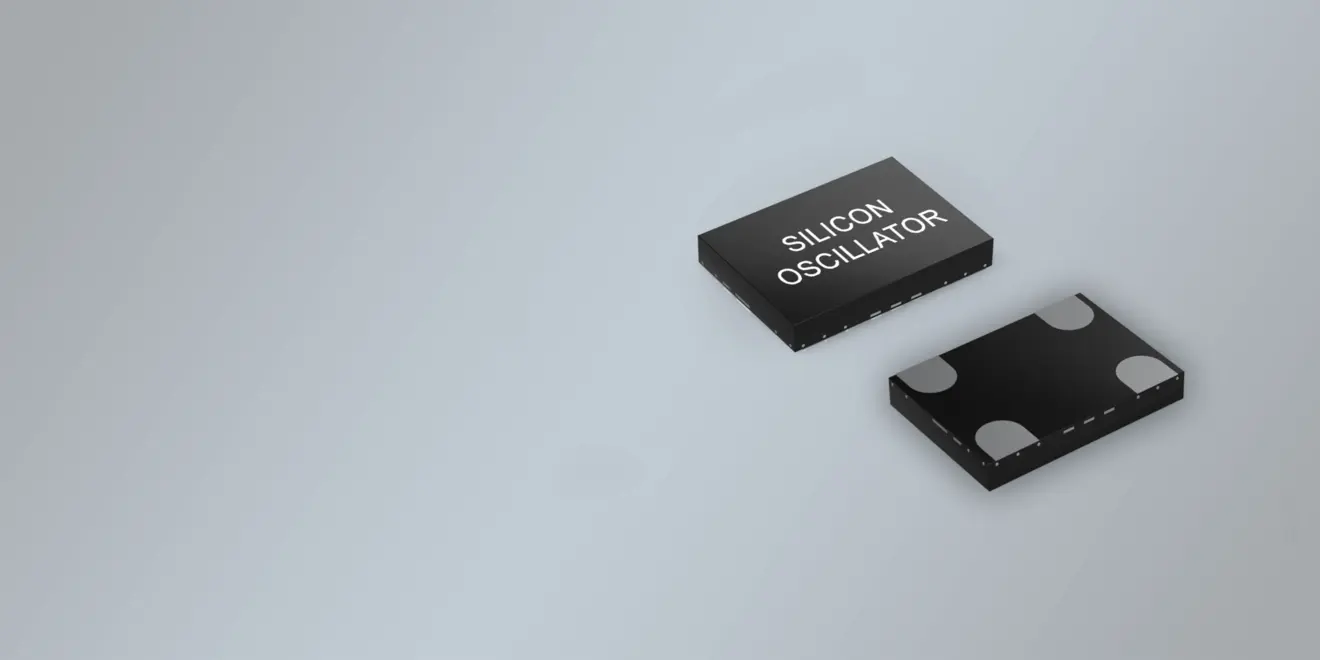

LOW POWER 1 - 80 MHz TC & VCTCXO OSCILLATORS

SMD LOW POWER 1 - 80 MHz TC & VCTCXO SILICON OSCILLATORS

  • 100% pin-to-pin drop-in replacement to quartz and MEMS based XO
  • VCTCXO for Low Cost
  • Excellent long time reliability
  • Excellent frequency stability as low as ±1.5 ppm over –40/+85°C
  • Frequency range of 1 MHz and 80 MHz accurate to 6 decimal places
  • Option to voltage control with a wide pull range
  • Complete single ended and differential output support
  • Outstanding long term aging
  • Samples are available within a short delivery period
  • Product Name

    TCVCTO

  • Package

    SMD QFN/4pad

  • Dimensions in mm (W x D x H)

    2.5 x 2.0 ~ 7.0 x 5.0

  • Frequency Range

    1.00 - 80.00 MHz

  • SUPPLY VOLTAGE

    1.8 V to 3.3 V

  • FREQUENCY STABILITY

    ±1 ppm to ±5 ppm

  • RMS INTEGRATED PHASE JITTER (12kHz - 20MHz)

    < 1ps (max.), 0.5 ps (typical)

  • OPERATING TEMPERATURE RANGE

    0/+70°C ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    Bulks or Tubes for sampling
    Tape & Reel for serial quantities

  • ENVIRONMENTAL REQUIREMENTS

    Pb-free, RoHS and REACH compliant

  • Extensive programmability

    • Customized specification for optimal system performance
    • Easy availability of any device specification within the operating range

  • Superior Robustness and Reliability, 10 times better than crystal VCTCXO and TCXO oscillators

    • 500 million hours MTBF
    • 50,000 g shock resistance
    • 70 g vibration resistance

  • <1ps (max.) integrated RMS phase jitter (12 kHz to 20 MHz), 0.5ps (typical)

    • Excellent for telecom and wireless applications.

  • Configurable drive strength

    • Slower rise/fall time that reduce system EMI
    • Saves cost by driving multiple loads and eliminates external buffers

  • 2520, 3225, 5032 & 7050 packages for all frequencies, voltages and stability

    • Save more board space without compromising performance and availability

DATASHEET: SMD Low Power 1-80MHz Silicon Oscillator (TC-VCTCXO-1)

SMD TC-VCTCXO-1 1-80MHz Silicon Oscillator

DATASHEET: SMD Low Power 10-40MHz Silicon Oscillator (TC-VCTCXO-2)

SMD TC-VCTCXO-2 10-40MHz Silicon Oscillator
