Our 25 MHz crystals, based on the exclusive LRT technology, not only offer favourable prices, but also maximum product safety. Thanks to their low resistance, they support our customers in their technical performance and in their endeavours for sustainability and energy efficiency.
25 MHz SMD oscillating crystals are essential for clocking SPE ICs. Our 25 MHz LRT resonant crystals have proven themselves in various housing versions in customer applications. All SMD resonant crystals are based on the patented LRT resonator designwhich impresses with its innovative technology, outstanding quality and performance. Thanks to a 100% testing process, LRT crystals guarantee a long service life and reliability for the long-term, trouble-free operation of applications.
Thanks to high production volumes, our frequency-generating components offer an excellent price-performance ratio. This contributes significantly to secure costing and to increasing the efficiency and productivity of our customers.
What is the technical advantage of LRT crystals?
The low resistance of LRT quartz cry stals enables faster and safer transient behaviour in SPE ICs, which leads to reduced current consumption and lower energy requirements. These crystals support customers in technical performance as well as in their sustainability and energy efficiency goals. Product safety is guaranteed from delivery lot to delivery lot, as we only use quartz resonators developed and manufactured in-house. This ensures that we can deliver the same LRT resonator design for many years to come. A 100% testing process guarantees the quality and performance of our SMD LRT resonators, from raw material testing to the final product. This means the highest quality and reliability for long-life SMD LRT resonant crystals.
Which package versions/quartz specifications are preferred?

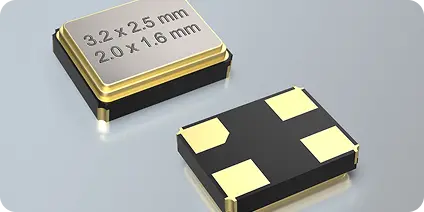

The miniaturised 4Pad ceramic housing with the dimensions 3.2x2.5mm (quartz series SMD03025/4) is standard in most applications. This housing is one of the cheapest variants. The ceramic housing with 2.0x1.6mm/4pad is available for smaller applications. Even smaller applications can be served with a 25 MHz crystal in a 1.6x1.2mm housing. For SPE applications, frequency tolerances of ±20 ppm at 25°C and temperature stabilities of ±30 ppm over -40/+85°C, -40/+105°C and ±50 ppm over -40/+125°C have become established. The load capacitance is usually 12pF, but other capacitances are also possible.
Of course, we also offer these SMD crystals in other versions. With our exclusive product configuratorsdevelopers and purchasers can configure the desired product in the shortest possible time and enquire directly or order samples. PETERMANN-TECHNIK GmbH also supports customers with extensive design-in activities during the development and series production phase.
Three sample specifications and the corresponding product configurators are linked here:
3.2x2.5mm/4pad crystal oscillator 25 MHz with the order designation: SMD03025/4 25.000 MHz 20/30/-40+85/12pF
2.0x1.6mm/4pad crystal oscillator 25 MHz with the order designation: SMD02016/4 25.000 MHz 20/30/-40+85/12pF
1.6x1.2mm/4pad crystal oscillator 25 MHz with the order designation: SMD01612/4 25.000 MHz 20/30/-40+85/12pF
Of course, we can also supply these SMD crystals in other variants. Use our product configurators to define your desired specifications or order sample crystals directly online. Please use the following links:
Product configurator 3.2x2.5mm/4pad oscillating quartz
Product configurator 2.0x1.6mm/4pad oscillating quartz
Product configurator 1.6x1.2mm/4pad oscillating quartz
