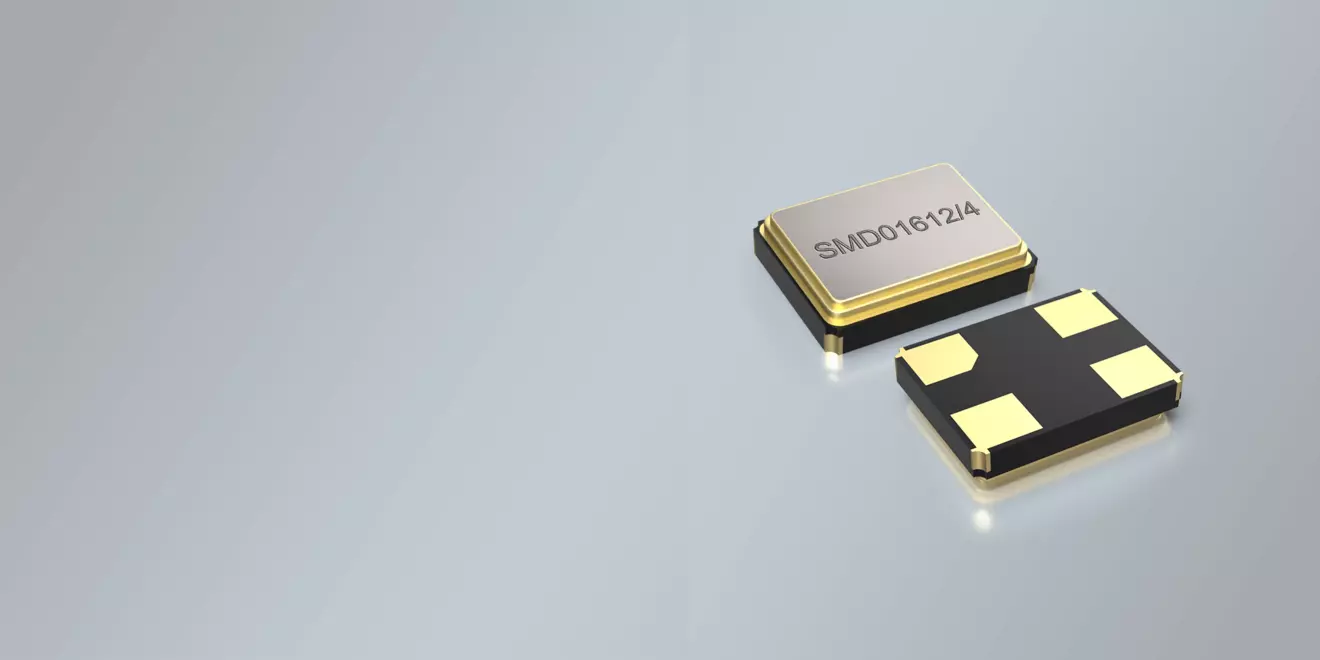

SMD QUARTZ CRYSTAL 1.6 X 1.2 MM

SMD QUARTZ CRYSTAL 1.6 x 1.2 mm 24.0 - 54.0 MHz

  • Tight tolerance / tight stability available
  • High reliability for low cost
  • Resistance reduced quartz design for fast and safe oscillation start-up
  • Excellent clock signal generator for CPU´s
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    1.6 x 1.2 x 0.3 mm

  • Frequency Range

    24.00 - 54.00 MHz

  • NUMBER OF SOLDER PADS

    4

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±50 ppm

  • LOAD CAPACITANCE (CL)

    Series, 8 pF, 10 pF, 12 pF (other CL on request)

  • WORKING TEMPERATURE RANGES

    -10/+60°C ~ -30/+85°C

  • DRIVE LEVEL

    10 µW typical (100 µW max.)

  • AGING

    ±5 ppm max. after first year
    ±10 ppm max. after 5 years
    ±15 ppm max. after 10 years

  • EQUIVALENT SERIES RESISTANCE (ESR)

    24.0 ~ 32.0 MHz = 150 Ω
    32.0 ~ 40.0 MHz = 150 Ω
    40.0 ~ 54.0 MHz = 100 Ω

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±10%

  • STORAGE TEMPERATURE

    -40°+85°C

  • DELIVERY FORM

    Tape and Reel (3.000 pcs reel)

  ±8 ppm ±12 ppm ±15 ppm ±20 ppm ±30 ppm ±50 ppm
-10/60 °C
-20/70 °C
-30/85 °C
SMD QUARTZ CRYSTAL SMD01612-4
  • ISM Band
  • Industrial
  • Networking
  • RFID/NFC
  • IoT
  • Wearables
  • HD & Storage
  • PC/PC Peripheral/IT
  • Mobile Communication
  • Embeded
  • WiMAX, WLAN, Wi-Fi
  • Automotive
  • Bluetooth/Bluetooth Low Energy (BLE)
  • Wireless Modules
  • Machine-to-Machine (M2M) Connectivity
  • Ultra-Low Power MCU

DATASHEET: SMD QUARTZ CRYSTAL SMD01612-4
