NAME:SMD0603/2 (Low ESR)

IMAGE:1

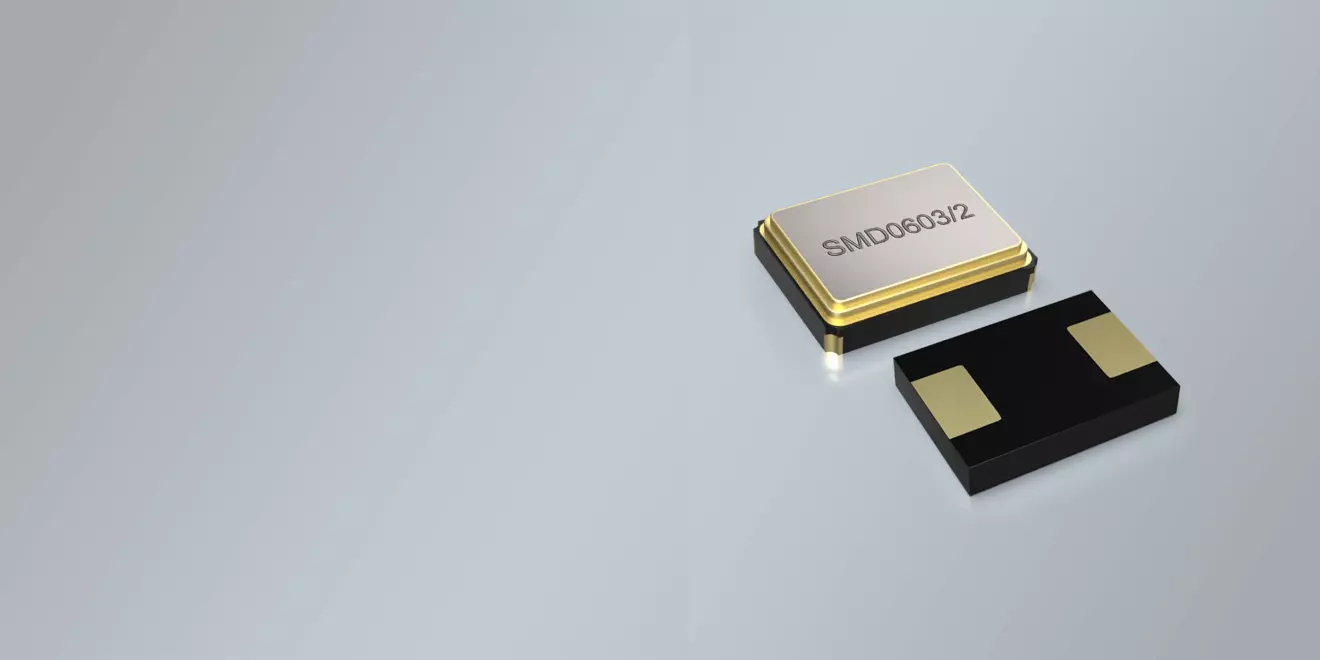

SMD QUARTZ CRYSTAL 6.0 x 3.5 mm 8.0 - 160.0 MHz

SMD QUARTZ CRYSTAL 6.0 x 3.5 mm 8.0 - 160.0 MHz

  • All ceramic epoxy sealed SMD package
  • Frequency tolerances of ±10ppm@+25°C, tight temperature stabilities and low aging deliverable
  • Low profile – 1.1 mm max. package height
  • Extended temperature range to -40/125°C available
  • Excellent clock signal generator for CPU´s
  • Product Name

    SMD Quartz Crystal

  • Package

    SMD Ceramic/2pad

  • Dimensions in mm (W x D x H)

    6.0 x 3.5 x 1.1 mm

  • Frequency Range

    8.00 - 160.00 MHz

  • NUMBER OF SOLDER PADS

    2 Please do not use this package for new design. Please use SMD0603/4 for new design.

  • FREQUENCY RANGES (SEPARATED)

    8.0 MHz ~ 40.0 MHz AT-Fundamental 40.1 MHz ~ 160.0 MHz 3rd Overtone At-cut

  • STANDARD FREQUENCIES

    8.0 MHz / 8.192 MHz / 9.84375 MHz / 10.0 MHz / 10.245 MHz / 10.368 MHz / 11.0592 MHz / 12.0 MHz / 12.8 MHz 13.2256 MHz / 13.568 MHz 20.0 MHz / 24.0 MHz / 27.12 MHz / 32.0 MHz / 32.768 MHz / 36.0 MHz / 40.0 MHz / 44.545 MHz / 48.0 MHz / 50.0 MHz

  • FREQUENCY TOLERANCES AT 25°C

    ±10 ppm ~ ±30 ppm (±30 ppm standard)

  • LOAD CAPACITANCE (CL)

    10 pF ~ 32 pF or Series Resonance

  • WORKING TEMPERATURE RANGES

    -20/+70°C ~ -40/+125°C

  • RESONANCE RESISTANCE

    8.0 ~ 12.0 MHz = 80 Ω max.
    12.1 ~ 16.0 MHz = 60 Ω max.
    16.1 ~ 40.0 MHz = 40 Ω max.
    40.1 ~ 160.0 MHz = 70 Ω max.

  • SHUNT CAPACITANCE C0

    7 pF max.

  • DRIVE LEVEL

    0.1 mW typ. / 0.5 mW max.

  • AGING

    ±3 ppm per year max.

  • INSULATION RESISTANCE

    >500 MΩ DC/100V ±15%

  • STORAGE TEMPERATURE

    -55°+125°C

  • DELIVERY FORM

    Tape and Reel (1.000 pcs per reel)

  ±10 ppm ±20 ppm ±30 ppm ±50 ppm ±100 ppm
-20/70 °C
-40/85 °C
-40/105 °C
-40/125 °C
*Operating temperature at 10 ppm is only up to -30°/+80°C
SMD QUARTZ CRYSTAL 6.0 x 3.5 mm 8.0 - 160.0MHz

DATASHEET: SMD QUARTZ CRYSTAL SMD0603-2

SMD QUARTZ CRYSTAL SMD0603-2
