NAME:OCXO-25

IMAGE:1

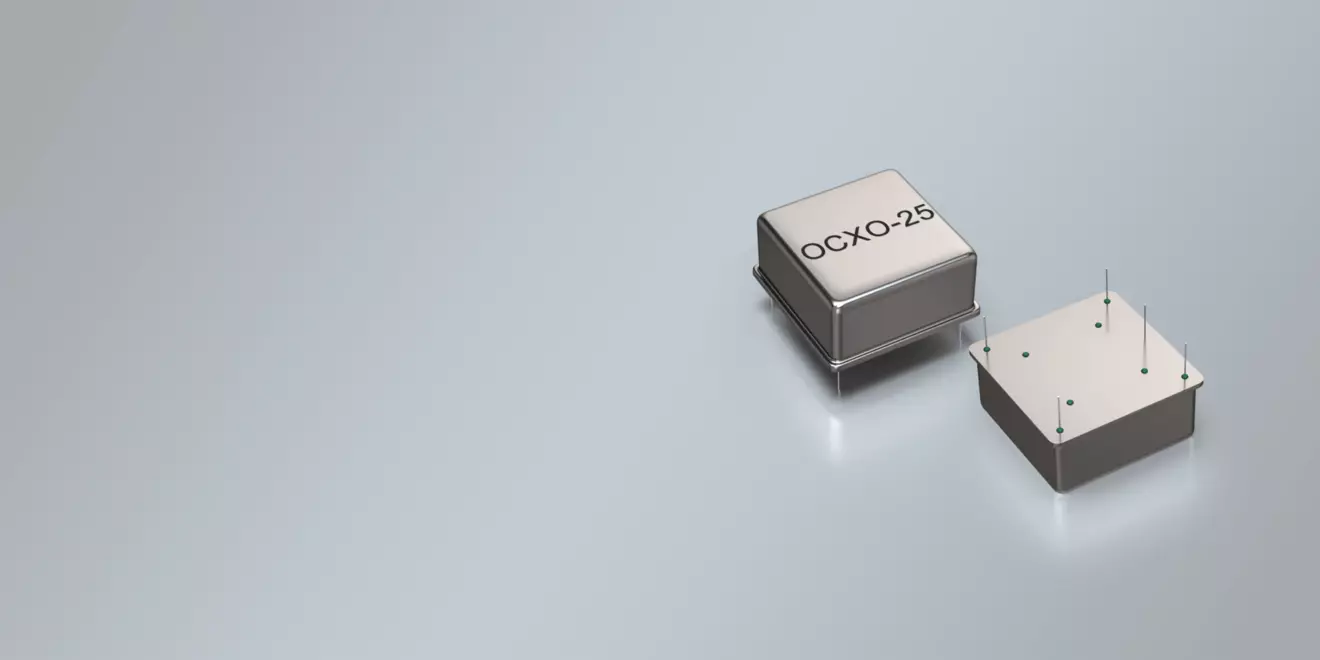

THT OCXO OSCILLATOR 25.4 x 25.4 mm 2.0-100.0 MHz

THT OCXO OSCILLATOR 25.4 x 25.4 mm 2.0-100.0 MHz

  • High reliability for low cost
  • SC-Cut and AT-Cut based OCXO designs
  • Wide supply voltage range of 3.3 ~ 12 VDC
  • Short warm-up time and excellent retrace behavior
  • High stability, excellent phase noise, low power consumption
  • Extended operating temperature range -40°C to +75°C
  • Product Name

    OCXO

  • Package

    THT Metal

  • Dimensions in mm (W x D x H)

    25.4 x 25.4 x 15.0 mm

  • Frequency Range

    2.00 - 100.00 MHz

  • FREQUENCY ACCURACY

    ±0.2 ppm (control voltage centered)

  • FREQUENCY STABILITY VS. AGING AT-CUT

    ±0.002 ppm/day / ±0.3 ppm/first year / ±2 ppm/10 years

  • FREQUENCY STABILITY VS. AGING SC-CUT

    ±0.001 ppm/day / ±0.1 ppm/first year / ±0.5 ppm/10 years

  • FREQUENCY STABILITY VS. LOAD

    ±0.01ppm / load change of ±10 %

  • FREQUENCY STABILITY VS. SUPPLY VOLTAGE

    ±0.02 ppm / supply voltage change of ±5 %

  • FREQUENCY STABILITY VS. TEMPERATURE

    Click Tab Frequency Stability

  • SHORT TERM STABILITY

    1x10E-11/s (10 MHz SC)

  • OPERATING TEMPERATURE RANGE

    0/+50°C ~ -40/+75°C

  • STORAGE TEMPERATURE RANGE

    -40/+100°C

  • SUPPLY VOLTAGE

    +3.3VDC / +5.0VDC / +12VDC

  • CURRENT CONSUMPTION

    3.6 W max. during warm-up / 1.2 W max. when static

  • WARM-UP TIME AT-CUT

    ±0.2 ppm <3 minutes

  • WARM-UP TIME SC-CUT

    ±0.1 ppm <3 minutes

  • FREQUENCY CONTROL RANGE AT-CUT

    ±3.0 ppm

  • FREQUENCY CONTROL RANGE SC-CUT

    ±0.7 ppm

  • CONTROL VOLTAGE

    0 ~ 3.3 VDC, 0 ~ 5 VDC

  • SLOPE

    POSITIVE

  • LINEARITY

    ±10%

  • PHASE NOISE (10 MHz) 10 Hz

    -120 dBc/Hz

  • PHASE NOISE (10 MHz) 100 Hz

    -140 dBc/Hz

  • PHASE NOISE (10 MHz) 1 kHz

    -145 dBc/Hz

  • PHASE NOISE (10 MHz) 10 kHz

    -150 dBc/Hz

  • OUTPUT SIGNAL AND LOAD CHARACTERISTICS

    Click Tab Output Waveform

THT OCXO METAL OSCILLATOR 25.4 x 25.4 mm

DATASHEET: THT LOW POWER OSCILLATOR OCXO-25

THT LOW POWER OCXO-25
