SMD SPXO OSCILLATOR 1.6 X 1.2 MM

SMD SPXO OSCILLATOR 1.6 x 1.2 mm 0.6 - 80.0 MHz

  • High reliability for low cost
  • Wide frequency stability range from ±20 to ±100 ppm
  • Wide supply voltage range of 1.8, 2.5, 2.8 and 3.3 VDC
  • High stability, low jitter, low power consumption
  • Extended operable temperature range -40°C to +105°C
  • Product Name

    SPXO

  • Package

    SMD Ceramic/4pad

  • Dimensions in mm (W x D x H)

    1.6 x 1.2 x 0.5 mm

  • Frequency Range

    0.60 - 80.00 MHz

  • FREQUENCY RANGE VS SUPPLY VOLTAGE

    1.8 VDC = 0.6 ~ 80.0 MHz
    2.5 VDC = 0.6 ~ 80.0 MHz
    2.8 VDC = 0.6 ~ 80.0 MHz
    3.3 VDC = 0.6 ~ 80.0 MHz

  • FREQUENCY STABILITY

    0/+70°C ~ -10/+60°C = ±20~±100 ppm
    -20/+70°C = ±25~±100 ppm
    -40/+85°C ~ -40/+105°C = ±50~±100 ppm
    -40/+125°C = ±100 ppm

  • OPERATING TEMPERATURE RANGE

    -10/+60°C ~ -40/+105°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    TAPE & REEL

  • RoHS

    Lead free and RoHS 2 compliant

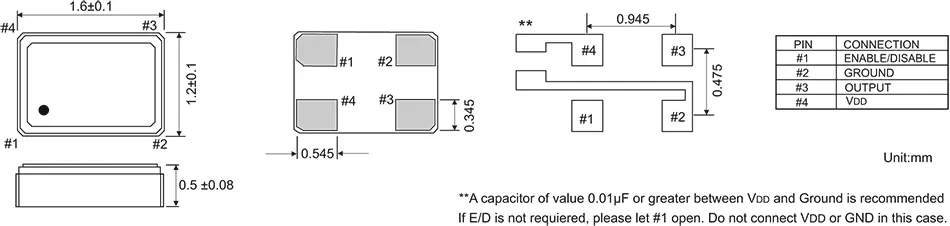

Ceramic SPXO OSCILLATOR 1.6 X 1.2 MM

DATASHEET: SMD SPXO: 1.6x1.2mm 1.8-3.3 VDC MHz

SMD SPXO 1.6x1.2mm 1.8 -3.3 VDC MHz
