SMD SPXO OSZILLATOR 3,2 x 2,5 mm 32.768 kHz

SMD SPXO OSCILLATOR 3.2 x 2.5 mm 32.768 kHz

  • High reliability for low cost
  • Wide frequency stability range from ±20 to ±100 ppm
  • Wide supply voltage range of 1.8, 2.5, 2.8, 3.3 and 5.0 VDC
  • High stability, low jitter, low power consumption
  • Extended operable temperature range -40°C to +105°C
  • Product Name

    SXO kHz

  • Package

    SMD Ceramic/4pad

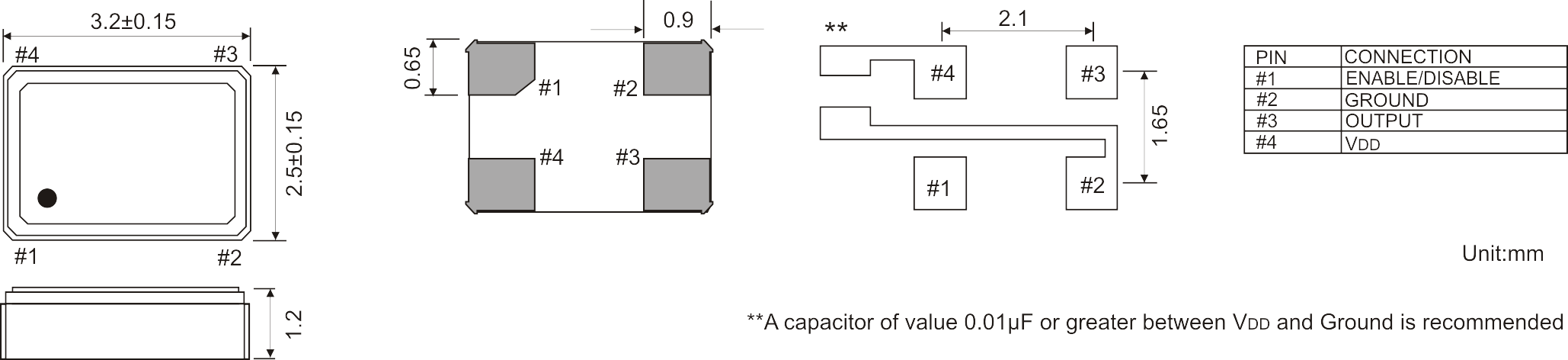

  • Dimensions in mm (W x D x H)

    3.2 x 2.5 x 1.2 mm

  • Frequency Range

    32.768 kHz

  • FREQUENCY RANGE VS SUPPLY VOLTAGE

    1.8 VDC = 32.768 kHz
    2.5 VDC = 32.768 kHz
    2.8 VDC = 32.768 kHz
    3.3 VDC = 32.768 kHz
    5.0 VDC = 32.768 kHz

  • FREQUENCY STABILITY

    -10/+60°C ~ -10/+70°C = ±25 ~ ±100 ppm
    -20/+70°C = ±30 ~ ±100 ppm
    -40/+85°C = ±35 ~ ±100 ppm

  • OPERATING TEMPERATURE RANGE

    -10/+60°C ~ -40/+85°C

  • STORAGE TEMPERATURE RANGE

    -55/+125°C

  • DELIVERY FORM

    TAPE & REEL

  • RoHS

    Lead free and RoHS 2 compliant

KERAMIK SPXO OSZILLATOR 3,2 x 2,5 mm 32.768 kHz

DATASHEET: SMD SPXO: 3.2x2.5 mm 32.768 kHz

SMD SPXO 3.2x2.5 mm 32.768 kHz
