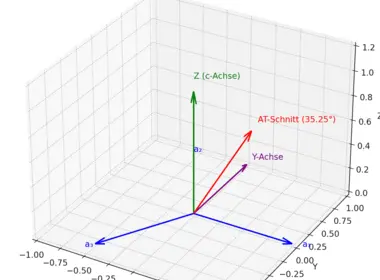

Crystallographic axes describe the spatial orientation of a synthetic quartz crystal. They form the basis for how a quartz blank is aligned and cut for frequency-determining components. The position of these axes directly influences the oscillation behavior of the subsequent quartz crystal. This knowledge is important for frequency technology because electrical and mechanical properties are heavily dependent on crystal orientation. For this reason, crystallographic axes are a key issue in the selection and manufacture of quartz crystals and oscillators.

Quartz cut types determine the angle at which a quartz crystal is cut in relation to its crystallographic axes. This cut largely determines how the quartz behaves under temperature changes, mechanical stress and during operation. Depending on the application, certain types of cut can offer better frequency stability or more favorable temperature behavior. In industrial and electronic applications, this is crucial for generating precise and reliable clock signals. The choice of the right type of quartz cut is therefore a key factor in the performance of a frequency-generating component.

The crystallographic axes are crucial because they form the basis for the subsequent type of cut and therefore for the properties of the quartz. When selecting a quartz, the requirements for frequency accuracy, temperature behavior and long-term stability are taken into account. The orientation of the crystal influences how efficiently and stably the quartz oscillates. This understanding is important for developers and purchasers in electronics in order to find the right solution for the respective application. In this way, quartz crystals can be specifically selected for industrial, measurement or communication systems.

Synthetic quartz serves as the base material for many precise frequency-determining components. Its defined crystal structure makes it possible to process the blank specifically along the crystallographic axes. The desired electrical and mechanical properties can only be achieved by precisely selecting the type of quartz cut. This is particularly important when high demands are placed on stability and reproducibility. This is why the interaction between synthetic quartz and the right type of cut is a key aspect of modern frequency technology.

Knowledge of quartz crystal types is relevant wherever precise frequencies need to be generated or kept stable. These include industrial control systems, communication systems, measurement technology and many electronic assemblies. The requirements for temperature stability, tolerance and reliability vary depending on the area of application. The right type of cut helps to optimally match the quartz to the respective application. This enables developers to improve the performance of their circuits and achieve stable results in the long term.

PETERMANN-TECHNIK is a specialized partner for quartz crystals, oscillators and frequency-generating components. The company imparts technical know-how in an understandable and practical way, even on challenging topics such as crystallographic axes and quartz crystal cutting types. This expertise is particularly valuable for industrial B2B customers when it comes to selecting suitable frequency solutions. Thanks to the clear focus on frequency technology, customers benefit from sound advice and high technical relevance. Anyone looking for reliable information and an experienced partner for quartz technology will find PETERMANN-TECHNIK a strong address.
