Reference design SMD oscillators for IC-manufacturers

SEARCH FOR REFERENCE DESIGN (IC-Manufacturer)

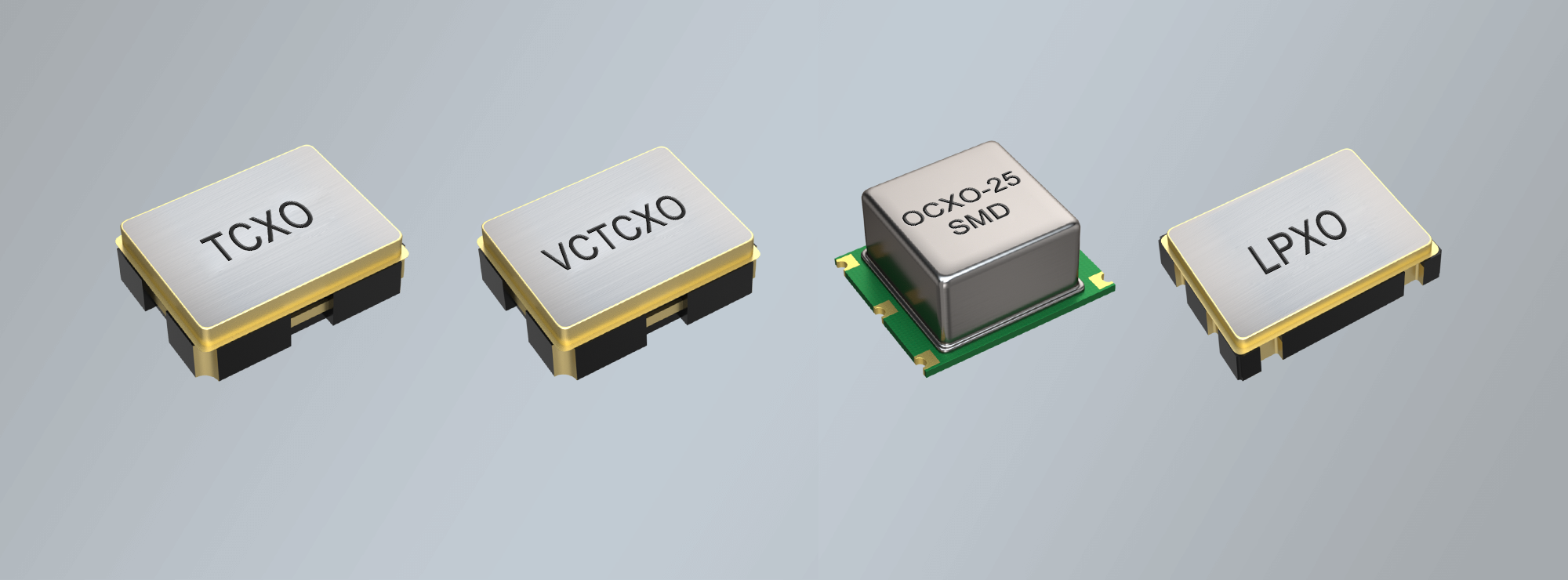

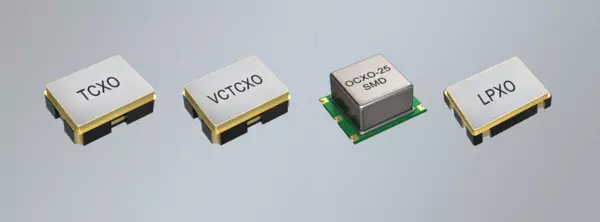

Our reference list shows you which ICs, among others, our quartz crystal oscillators can be used with. Of course, for the clocking of other ICs corresponding quartz crystal oscillators - with very low resistance for exceptionally fast and safe oscillation - from our outstandingly wide and deep product range available. For new developments we suggest especially temperature compensated crystal oscillators (TCXO).

Manufacturer IC Package Frequency Supply Voltage Temperature Stability Product Number Data Sheet Sample Product
Nordic nRF5340 2.0 x 1.6 mm 32.000 MHz 1.8 VDC 2.5 TXO2016-18–2.5-W-32M-1-CSW
PDF
Request Enquiry
Nordic nRF5340 2.5 x 2.0 mm 32.000 MHz 3.0 VDC 0.5 TXO2520-30–0.5-K-32M-1-CSW
PDF
Request Enquiry
Nordic nRF52811 2.0 x 1.6 mm 32.000 MHz 1.8 VDC 2.5 TXO2016-18–2.5-W-32M-1-CSW
PDF
Request Enquiry
Nordic nRF52811 2.5 x 2.0 mm 32.000 MHz 3.0 VDC 0.5 TXO2520-30–0.5-K-32M-1-CSW
PDF
Request Enquiry
STM S2-LP (SPIRIT-2) 1.6 x 1.2 mm 50.000 MHz 3.3 VDC 1.0 TXO1612-33–2.5-W-50M-1-CSW-E
PDF
Request Enquiry
STM S2-LP (SPIRIT-2) 2.5 x 2.0 mm 50.000 MHz 3.3 VDC 1.0 TXO2520-33–2.5-W-50M-1-CSW-E
PDF
Request Enquiry
STM SPIRIT1 1.6 x 1.2 mm 50.000 MHz 3.3 VDC 1.0 TXO1612-33–2.5-W-50M-1-CSW-E
PDF
Request Enquiry
STM SPIRIT1 2.5 x 2.0 mm 50.000 MHz 3.3 VDC 1.0 TXO2520-33–2.5-W-50M-1-CSW-E
PDF
Request Enquiry
Silicon Labs EFR32BG22 2.5 x 2.0 mm 50.000 MHz 3.0 VDC 1.0 TXO2520-33–2.5-W-50M-1-CSW-E
PDF
Request Enquiry
