Silicon MEMS oscillators

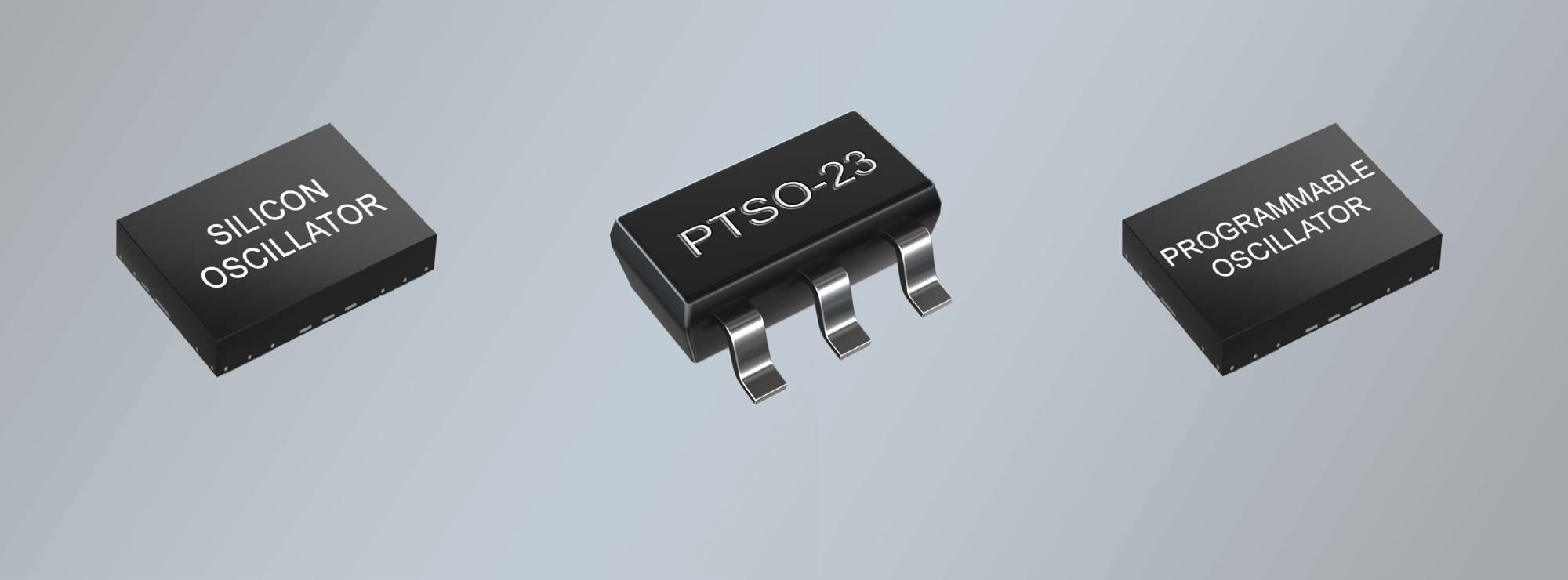

Silicon (MEMS) oscillators product overview

Silicon MEMS oscillators are semiconductors, so do not use quartz resonators for clocking. Our great-value silicon MEMS oscillators also use cutting-edge analogue CMOS-IC technology, offering excellent performance and setting a market record with an MTBF of 1140 million hours (FIT 0.88). What is more, our silicon MEMS oscillators are 30x more resistant to shock and vibration and 54x less sensitive to external electromagnetic fields than quartz oscillators. The rate of ageing is also 10x slower than for quartz oscillators. Certain models of our silicon MEMS oscillators can, for example, be supplied by a button cell for 10 years.

Our highly innovative silicon MEMS oscillator solutions are smart clocking devices that offer pin-to-pin compatibility with quartz oscillators. The standard "SoftLevel" function allows harmonic damping of over -60 dB at no additional cost, and the oscillators are not just extremely flexible and reliable, but also great value. They also require little power and offer excellent jitter performance.

Our silicon oscillators are the best and most long-lasting choice for new developments and the replacement of existing quartz oscillators. Our silicon MEMS oscillator range includes: ultra low power oscillators (kHz + MHz), low power clock oscillators, ultra performance oscillators, differential oscillators, spread spectrum oscillators, TC and VCTCXO, high temperature oscillators (versions for up to +155°C are currently being tested), high precision oscillators and automotive oscillators (AECQ100).

Discover our great range of SMD silicon MEMS oscillators and comprehensive service portfolio. Why not take a look at the comprehensive overview of available SMD silicon MEMS oscillators below to find the best solution for your application, or simply ask our team for an individual recommendation.

For more detailed information and support please use our contact-forms or contact us by email

info(at)petermann-technik.com or by phone +49/8191/305395.

Ultra Low Power 32.768 kHz

ULPO = Ultra-Low Power Oscillator; ULPPO = Ultra-Low Power High Precision Oscillator

ULTRA LOW POWER 1 - 26 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
ULPO
ULPO SMD QFN/4pad 1.5 x 0.8 1.00 - 26.00 MHz 1.62 ~ 1.98 VDC 0/70°C  ~ -40/85°C LVCMOS PDF Request Request
ULPO = Ultra-Low Power Oscillator

LOW POWER 1 - 137 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
LPO
LPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
LPO
LPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
 LPO = Low Power Oscillator

ULTRA PERFORMANCE 1 - 220 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
UPO
UPO SMD QFN/4pad 2.5 x 2.0 ~ 7.0 x 5.0 1.00 - 80.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
HFUPO
HFUPO SMD QFN/4pad 2.5 x 2.0 ~ 7.0 x 5.0 80.00 - 220.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
UPO = Ultra Performance Oscillator; HFUPO = High Frequency Ultra Performance Oscillator

DIFFERENTIAL 1 - 625 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
DLPO-1
DLPO-1 SMD QFN/6pad 5.0 x 3.2 ~ 7.0 x 5.0 1.00 - 220.00 MHz 2.25 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/LVPECL/HCSL/LVDS/CML PDF Request Request
DLPO-3
DLPO-3 SMD QFN/6pad 2.5 x 2.0 ~ 7.0 x 5.0 1.00 - 220.00 MHz 2.25 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVPECL and LVDS output types PDF Request Request
DLPO-4
DLPO-4 SMD QFN/6pad 5.0 x 3.2 ~ 7.0 x 5.0 220.00 - 625.00 MHz 2.25 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVPECL and LVDS output types PDF Request Request
DLPO = Differential Low Power Oscillator

HIGH-TEMPERATURE 1 - 137 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
HTLPO
HTLPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPO
HTLPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPO
WTLPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPO
WTLPO SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 119.34 - 137.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPO = High Temperature Low Power Oscillator; WTLPO = Widest Temperature Low Power Oscillator

AUTOMOTIVE HIGH-TEMPERATURE 1 - 137 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
LPO-AUT
LPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.62 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/LVTTL compatible output PDF Request Request
LPO-AUT
LPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.62 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPO-AUT
HTLPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.62 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPO-AUT
HTLPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.62 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPO-AUT
WTLPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.62 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPO-AUT
WTLPO-AUT SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.62 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
LPO-AUT = Low Power Automotive Oscillator; HTLPO-AUT=Widest Temperature Low Power Automotive Oscillator; WTLPO-AUT = Widest Temperature Low Power Automotive Oscillator

LOW POWER TC & VCTCXO 1 - 80 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
TCVCTO-1
TCVCTO-1 SMD QFN/4pad 2.5 x 2.0 ~ 7.0 x 5.0 1.00 - 80.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVCMOS/LVTTL compatible output PDF Request Request
TCVCTO-2
TCVCTO-2 SMD QFN/4pad 2.5 x 2.0 ~ 7.0 x 5.0 10.00 - 40.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVCMOS/LVTTL compatible output PDF Request Request
TCVCTO = Temperature Compensated Voltage Controlled Oscillator

DIFFERENTIAL LOW POWER TC & VCTCXO 1 - 625 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
DTCVCTO
DTCVCTO SMD QFN/6pad 3.2 x 2.5 ~ 7.0 x 5.0 1.00 - 220.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVPECL and LVDS output types PDF Request Request
HFDTCVCTO
HFDTCVCTO SMD QFN/6pad 3.2 x 2.5 ~ 7.0 x 5.0 220.00 - 625.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVPECL and LVDS output types PDF Request Request
DTCVCTO = Differential Temperature Compensated Voltage Controlled Oscillator; HFDTCVCTO = High Frequency Differential Temperature Compensated Voltage Controlled Oscillator

SPREAD SPECTRUM 1 - 220 MHz

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
LPSSO
LPSSO SMD QFN/4pad 5.0 x 3.2 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVCMOS/LVTTL compatible output PDF Request Request
DLPSSO
DLPSSO SMD QFN/4pad 3.2 x 2.5 ~ 7.0 x 5.0 1.00 - 220.00 MHz 1.8 ~ 3.3 VDC 0/70°C  ~ -40/85°C LVCMOS/LVPECL/HCSL/LVDS/CML PDF Request Request
DLPSSO = Differential Low Power Spread Spectrum Oscillator; LPSSO = Low Power Spread Spectrum Oscillator

PROGRAMMABLE OSCILLATORS

  Product Name Package Dimensions in mm (W x D x H) Frequency Range Supply Voltage Temperature Range Output Signal Data Sheet Sample Product
LPOP
LPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
LPOP
LPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.8 ~ 3.63 VDC 0/70°C  ~ -40/85°C LVCMOS/HCMOS compatible output PDF Request Request
HTLPOP
HTLPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPOP
HTLPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 115.20 - 137.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -40/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPOP
WTLPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 1.00 - 110.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
WTLPOP
WTLPOP SMD QFN/4pad 2.0 x 1.6 ~ 7.0 x 5.0 119.34 - 137.00 MHz 1.8 ~ 3.63 VDC -40/85°C  ~ -55/125°C LVCMOS/LVTTL compatible output PDF Request Request
HTLPOP = High Temperature Low Power Oscillator Programmable; LPOP = Low Power Oscillator Programmable; WTLPOP = Widest Temperature Low Power Oscillator Programmable
